Category: HDD

HDD with Serial Number: WXE906333521;
Model: WD800VE-00KWT0;
Date: 21 OCT 2006;
DCM: HCTJHNB;
Product of: Thailand;
PCB Sticker: 2061-701402-200 ABD2;
PCB Revision: 2060-701402-002 REV B;
;

;

HDD #1 Specs:;
SN: WMAM9CS83411;
Model: WD800JD-75MSA3;
Date: 29 AUG 2006;
DCM: HSCHNTJCA ;
Product of: Malaysia;
PCB Sticker: 2061-701335-E00 AE;
PCB Revision: 2060-701335-005 REV A;
;
Micro Jogs;

——————————
LH  : PH  : Micro Jog (Hex/Dec)
——————————
0   : 0   : 486/1158
1   : 1   : 494/1172;

ROM F/W version……………………. : 109DE;
Preamp vendor……………………… : 0x0001;
Preamp revision……………………. : 0x0004;

HDD with Serial Number: WMAM9CVC8261;
Model: WD800JD-75MSA3;
Date: 12 AUG 2008;
DCM: HSCHNTJCA;
Product of: Malaysia;
PCB Sticker: 2061-701335-Q00 AC;
PCB Revision: 2060-701335-006 REV A;
;
Micro Jogs;

——————————
LH  : PH  : Micro Jog (Hex/Dec)
——————————
0   : 0   : 4D2/1234
1   : 1   : 4BA/1210;
;
ROM F/W version……………………. : 109KE;
Preamp vendor……………………… : 0x0001;
Preamp revision……………………. : 0x0004;
;

;

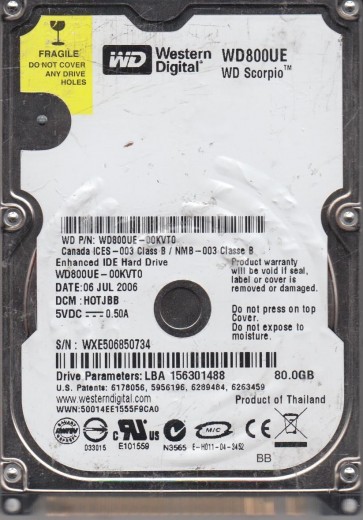

HDD with Serial Number: WXE506850734;
Model: WD800UE-00KVT0;
Date: 06 JUL 2006;
DCM: HOTJBB;
Product of: Thailand;
PCB Sticker: 2061-701401-100 AA;
PCB Revision: 2060-701401-001 REV A;
;

Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 1 : 6D3/1747;
1 : 2 : 6EB/1771;
2 : 3 : 67D/1661;
ROM F/W version……………………. : 0002002D;
Heads map…………………………. : 1,2,3;
Preamp vendor……………………. : 0x0004;
Preamp revision………………….. : 0x0001;

;

HDD #1 Specs:;
SN: WMAM9LK05596;
Model: WD800JD-75MSA3;
Date: 10 APR 2007;
DCM: HSCHNTJCH ;
Product of: Malaysia;
PCB Sticker: 2061-701335-E00 AL;
PCB Revision: 2060-701335-005 REV A;

;

Micro Jogs;
——————————;
LH  : PH  : Micro Jog (Hex/Dec);
——————————;
0   : 0   : 4C8/1224;
1   : 1   : 4D6/1238;
;
ROM F/W version……………………. : 101KE;
Preamp vendor……………………… : 0x0001;
Preamp revision……………………. : 0x0004;
;

;

HDD with Serial Number: WMAM9RZ63883;
Model: WD800JD-75MSA3;
Date: 25 JUN 2007;
DCM: HSCHNTJCH;
Product of: Malaysia;
PCB Sticker: 2061-701335-E00 AM;
PCB Revision: 2060-701335-005 REV A;

;

Micro Jogs;
——————————;
LH  : PH  : Micro Jog (Hex/Dec);
——————————;
0   : 0   : 4C2/1218;
1   : 1   : 4C4/1220;
;
ROM F/W version……………………. : 109KE;
Preamp vendor……………………… : 0x0001;
Preamp revision……………………. : 0x0004;
;

HDD with Serial Number: WMAM9EL64222;
Model: WD800JD-75MSA3;
Date: 14 OCT 2006;
DCM: HSCHNTJCH;
Product of: Malaysia;
PCB Sticker: 2061-701335-E00 AG;
PCB Revision: 2060-701335-005 REV A;
;

Micro Jogs;
——————————;
LH  : PH  : Micro Jog (Hex/Dec);
——————————;
0   : 0   : 4CE/1230;
1   : 1   : 4B4/1204;
ROM F/W version……………………. : 109DE;
Heads map…………………………. : 0,1;
Preamp vendor……………………. : 0x0001;
Preamp revision………………….. : 0x0004;
;
;
;

;

HDD with Serial Number: WXE306147493;
Model: WD800UE-00KVT0;
Date: 06 APR 2006;
DCM: HOTJHN;
Product of: Thailand;
PCB Sticker: 2061-701401-100 AA;
PCB Revision: 2060-701401-001 REV A;
;

;

HDD with Serial Number: WMAM9AV05847;
Model: WD800JD-75MSA3;
Date: 31 JUL 2006;
DCM: HSCHYTJCH;
Product of: Malaysia;
PCB Sticker: 2061-701335-E00 AE;
PCB Revision: 2060-701335-005 REV A;

Micro Jogs;
——————————;
LH  : PH  : Micro Jog (Hex/Dec);
——————————;
0   : 0   : 484/1156;
1   : 1   : 4A8/1192;
ROM F/W version……………………. : 101DE;
Heads map…………………………. : 0,1;
Preamp vendor…………………… : 0x0001;
Preamp revision…………………. : 0x0004;
;
;
;

;

HDD with Serial Number: WXE306414536;
Model: WD800UE-22HCT0;
Date: 02 APR 2006;
DCM: HCNTJBNH;
Product of: Thailand;
PCB Sticker: 2061-701281-100 AJ;
PCB Revision: 2060-701281-001 REV A;

;

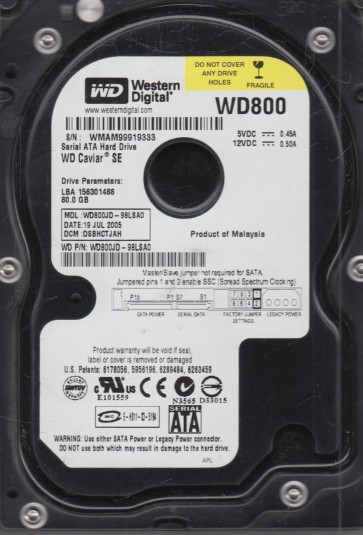

HDD with Serial Number: WMAM99919333;
Model: WD800JD-98LSA0;
Date: 19 JUL 2005;
DCM: DSBHCTJAH;
Product of: Malaysia;
PCB Sticker: 2061-701335-A00 AC;
PCB Revision: 2060-701335-003 REV B;
;

Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 0 : 424/1060;
1 : 1 : 418/1048;
ROM F/W version……………………. : 06BGD;
Heads map…………………………. : 0,1;
Preamp vendor……………………… : 0x0001;
Preamp revision……………………. : 0x0004;

;

HDD with Serial Number: WXEZ05748198;
Model: WD800UE-22HCT0;
Date: 06 FEB 2006;
DCM: HOHTJBNH;
Product of: Thailand;
PCB Sticker: 2061-701281-100 AH;
PCB Revision: 2060-701281-001 REV A;
;

HDD with Serial Number: WXEZ05118016;
Model: WD800UE-22HCT0;
Date: 05 FEB 2006;
DCM: HOHTJBNH;
Product of: Thailand;
PCB Sticker: 2061-701281-100 AH;
PCB Revision: 2060-701281-001 REV A;
;

;

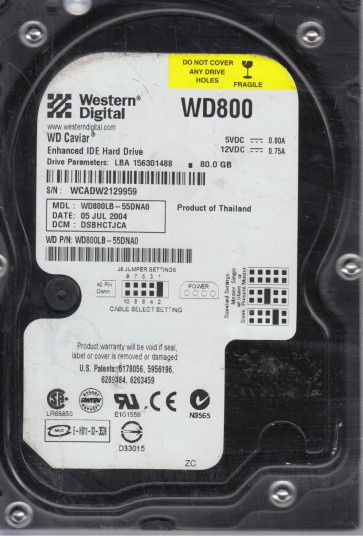

HDD with Serial Number: WCADW2129959;
Model: WD800LB-55DNA0;
Date: 05 JUL 2004;
DCM: DSBHCTJCA;
Product of: Thailand;
PCB Sticker: 2061-001159-200 AH;
PCB Revision: 2060-001159-006 REV A;
;

;
