Category: HDD

HDD #1 Specs:;
SN: WX51A50N2887;
Model: WD7500BPVT-22HXZT1;
Date: 02 JUN 2010;
DCM: HHCVJABB ;
Product of: Thailand;
PCB Sticker: 2061-771692-101 05P;
PCB Revision: 2060-771692-001 REV P1;

;

Micro Jogs;
——————————;
LH  : PH  : Micro Jog (Hex/Dec);
——————————;
0   : 0   : BA2/2978;
1   : 1   : AC6/2758;
2   : 2   : B65/2917;
3   : 3   : A9E/2718;

;

ROM F/W version……………………. : 000200A8;
Preamp vendor……………………… : 0x0001;
Preamp revision……………………. : 0x0003;

;

HDD with Serial Number: WX21A50R5117;
Model: WD7500BPVT-22HXZT1;
Date: 26 MAY 2010;
DCM: HHCVJANB;
Product of: Thailand;
PCB Sticker: 2061-771692-101 05P;
PCB Revision: 2060-771692-001 REV P1;
;

Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 0 : BBD/3005;
1 : 1 : AA4/2724;
2 : 2 : BCF/3023;
3 : 3 : B08/2824;
ROM F/W version……………………. : 00020028;
Heads map…………………………. : 0,1,2,3;
Preamp vendor……………………. : 0x0001;
Preamp revision………………….. : 0x0003;

;

HDD with Serial Number: WXQ1E82ZNE18;
Model: WD7500BPVT-22HXZT3;
Date: 30 NOV 2012;
DCM: DHOT2HB;
Product of: Malaysia;
PCB Sticker: 771820-B00 AA;
PCB Revision: 2060-771820-000 REV A;
;

Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 0 : AF2/2802;
1 : 1 : B13/2835;
2 : 2 : B20/2848;
3 : 3 : AA9/2729;

;

ROM F/W version: 0065001B;
Heads map: 0,1,2,3;
Preamp vendor: 0x0000;
Preamp revision: 0x0009;

;

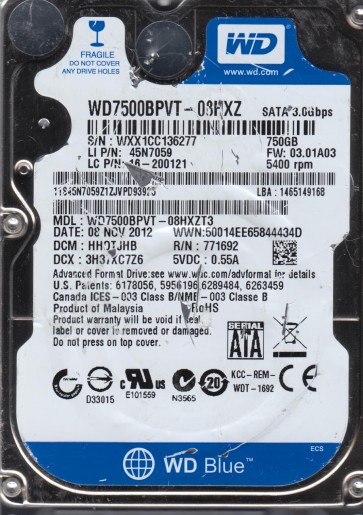

HDD with Serial Number: WXX1CC136277;
Model: WD7500BPVT-08HXZT3;
Date: 08 NOV 2012;
DCM: HHOTJHB;
Product of: Malaysia;
PCB Sticker: 771820-B00 AA;
PCB Revision: 2060-771820-000 REV A;
;

;

HDD with Serial Number: WXF1E62KYCM9;
Model: WD7500BPVT-22HXZT3;
Date: 19 SEP 2012;
DCM: EAOTJAN;
Product of: Malaysia;
PCB Sticker: 771820-D00 AB;
PCB Revision: 2060-771820-000 REV A;
;

Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 0 : B47/2887;
1 : 1 : AFD/2813;
2 : 2 : B63/2915;
3 : 3 : B0F/2831;

;

ROM F/W: 00650018;
Heads map: 0,1,2,3;
Preamp vendor: 0x0001;
Preamp revision: 0x0003;

;

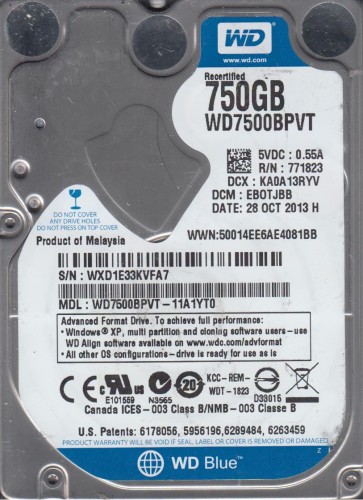

HDD with Serial Number: WXD1E33KVFA7;
Model: WD7500BPVT-11A1YT0;
Date: 28 OCT 2013;
DCM: EBOTJBB;
Product of: Malaysia;
PCB Sticker: 771823-300 AG;
PCB Revision: 2060-771823-000 REV A;

;

Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 0 : 1002/4098;
1 : 1 : 10C4/4292;
2 : 2 : FDF/4063;

;

ROM F/W version……………………. : 00030080;
Preamp vendor……………………… : 0x0001;
Preamp revision……………………. : 0x0000;

;

;

HDD with Serial Number: WXF1A6121834;
Model: WD7500BPVT-22HXZT3;
Date: 25 JUL 2011;
DCM: HVCTJVB;
Product of: Malaysia;
PCB Sticker: 771820-000 03P;
PCB Revision: 2060-771820-000 REV P1;

;

Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 0 : A96/2710;
1 : 1 : B66/2918;
2 : 2 : AC7/2759;
3 : 3 : B4E/2894;

;

ROM F/W version……………………. : 0045000U;
Preamp vendor……………………… : 0x0001;
Preamp revision……………………. : 0x0003;

;

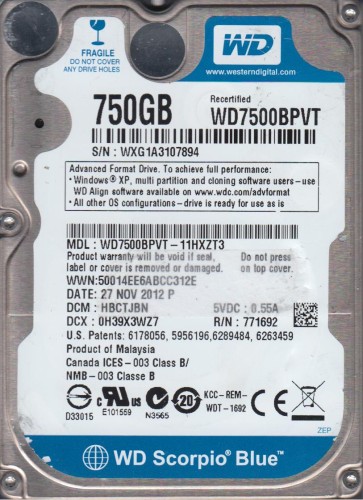

HDD with Serial Number: WXG1A3107894;
Model: WD7500BPVT-11HXZT3;
Date: 27 NOV 2012;
DCM: HBCTJBN;
Product of: Malaysia;
PCB Sticker: 771820-000 03P;
PCB Revision: 2060-771820-000 REV P1;

;

Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 0 : B22/2850;
1 : 1 : B56/2902;
2 : 2 : B3E/2878;
3 : 3 : B47/2887;

;

ROM F/W version……………………. : 0065001B;
Preamp vendor……………………… : 0x0001;
Preamp revision……………………. : 0x0003;

;

HDD with Serial Number: WXC1EC2JT609;
Model: WD7500BPVT-22HXZT3;
Date: 23 FEB 2013;
DCM: SACTJBN;
Product of: Malaysia;
PCB Sticker: 771820-B00 AB;
PCB Revision: 2060-771820-000 REV A;
;

Micro Jogs;
——————————;
LH  : PH  : Micro Jog (Hex/Dec);
——————————;
0   : 0   : B0C/2828;
1   : 1   : A82/2690;
2   : 2   : B5C/2908;
3   : 3   : A1F/2591;
ROM F/W version……………………. : 0065001F;
Heads map…………………………. : 0,1,2,3;
Preamp vendor……………………. : 0x0001;
Preamp revision………………….. : 0x0003;

;

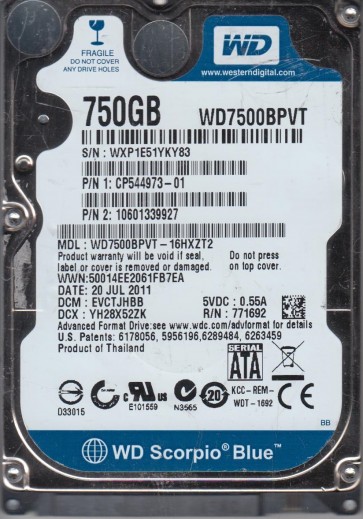

HDD with Serial Number: WXP1E51YKY83;
Model: WD7500BPVT-16HXZT2;
Date: 20 JUL 2011;
DCM: EVCTJHBB;
Product of: Thailand;
PCB Sticker: 771692-D05 AAD1;
PCB Revision: 2060-771692-005 REV A;
;

Micro Jogs;
——————————;
LH  : PH  : Micro Jog (Hex/Dec);
——————————;
0   : 0   : AAD/2733;
1   : 1   : A7E/2686;
2   : 2   : AA7/2727;
3   : 3   : A9F/2719;
ROM F/W version……………………. : 0010000W;
Heads map…………………………. : 0,1,2,3;
Preamp vendor……………………. : 0x0001;
Preamp revision………………….. : 0x0003;

;
