Category: HDD

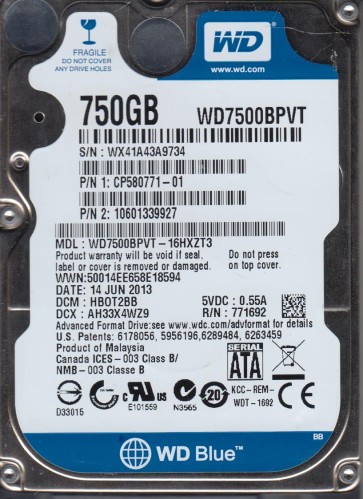

WD7500BPVT-16HXZT3, DCM HB0T2BB, Western Digital 750GB SATA 2.5 Hard Drive

HDD #1 Specs:;
SN: WX41A43A9734;
Model: WD7500BPVT-16HXZT3;
Date: 14 JUN 2013;
DCM: HB0T2BB ;
Product of: Malaysia;
PCB Sticker: 771820-B00 AD;
PCB Revision: 2060-771820-000 REV A;

;

Micro Jogs;
——————————;
LH  : PH  : Micro Jog (Hex/Dec);
——————————;
0   : 0   : A10/2576;
1   : 1   : ACD/2765;
2   : 2   : A46/2630;
3   : 3   : AD9/2777;
ROM F/W version……………………. : 0065001F;
Heads map…………………………. : 0,1,2,3;
Preamp vendor……………………… : 0x0000;
Preamp revision……………………. : 0x0009;

;

WD7500BPVT-22A1YT0, DCM EBCVJBK, Western Digital 750GB SATA 2.5 Hard Drive

HDD with Serial Number: WXK1E32DXKEN;
Model: WD7500BPVT-22A1YT0;
Date: 10 SEP 2012;
DCM: EBCVJBK;
Product of: Malaysia;
PCB Sticker: 771823-300 AE;
PCB Revision: 2060-771823-000 REV A;
;

Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 0 : FE3/4067;
1 : 1 : 1035/4149;
2 : 2 : FDC/4060;
3 : 3 : 1039/4153;

;

;
ROM F/W version: 01.01A01;
Heads map: 0,1,2,3;
Preamp vendor: 0x0001;
Preamp revision: 0x0000;

;

WD7500BPVT-22A1YT0, DCM HHCVJHK, Western Digital 750GB SATA 2.5 Hard Drive

HDD with Serial Number: WX21C1290674;
Model: WD7500BPVT-22A1YT0;
Date: 03 SEP 2013;
DCM: HHCVJHK;
Product of: Malaysia;
PCB Sticker: 771823-300 AG;
PCB Revision: 2060-771823-000 REV A;
;

ROM F/W 00030052;
Heads map 0,1,2,3;
Preamp Vendor: x001;
Preamp revision: x000;
;
Micro Jogs;
——————————;
LH  : PH  : Micro Jog (Hex/Dec);
——————————;
0   : 0   : 10A5/4261;
1   : 1   : 1005/4101;
2   : 2   : 10BB/4283;
3   : 3   : 102B/4139

;

WD7500BPVT-22HXZT1, DCM EBCVJVBB, Western Digital 750GB SATA 2.5 Hard Drive

HDD #1 Specs:;
Serial Number: WXD1E7036489;
Model: WD7500BPVT-22HXZT1;
Date: 26 SEP 2010;
DCM: EBCVJVBB;
Product of: Thailand;
PCB Sticker: 771692-105 01PD1;
PCB Revision: 2060-771692-005 REV A;

;

Micro Jogs;
——————————;
LH  : PH  : Micro Jog (Hex/Dec);
——————————;
0   : 0   : B6C/2924;
1   : 1   : B95/2965;
2   : 2   : B4E/2894;
3   : 3   : B02/2818;
;
;
;

;

WD7500BPVT-22HXZT1, DCM EHCTJBB, Western Digital 750GB SATA 2.5 Hard Drive

HDD with Serial Number: WX71E31WH604;
Model: WD7500BPVT-22HXZT1;
Date: 28 JUN 2011;
DCM: EHCTJBB;
Product of: Malaysia;
PCB Sticker: 771692-505 03PD16;
PCB Revision: 2060-771692-005 REV A;

;

Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 0 : B15/2837;
1 : 1 : B02/2818;
2 : 2 : B0F/2831;
3 : 3 : B36/2870;

;

ROM F/W version……………………. : 0010000U;
Preamp vendor……………………… : 0x0001;
Preamp revision……………………. : 0x0003;

;

WD7500BPVT-22HXZT1, DCM EHCVJVNB, Western Digital 750GB SATA 2.5 Hard Drive

HDD #1 Specs:;
Serial Number: WX71C7059881;
Model: WD7500BPVT-22HXZT1;
Date: 20 SEP 2010;
DCM: EHCVJVNB;
Product of: Thailand;
PCB Sticker: 771692-105 01PD1;
PCB Revision: 2060-771692-005 REV A;

;

Micro Jogs;
——————————;
LH  : PH  : Micro Jog (Hex/Dec);
——————————;
0   : 0   : BA2/2978;
1   : 1   : AF0/2800;
2   : 2   : BB2/2994;
3   : 3   : B05/2821;

;

ROM F/W version……………………. : 0006001E;
Preamp vendor……………………… : 0x0001;
Preamp revision……………………. : 0x0003;

;

WD7500BPVT-22HXZT1, DCM HACVJABB, Western Digital 750GB SATA 2.5 Hard Drive

HDD with Serial Number: WX21A50K7651;
Model: WD7500BPVT-22HXZT1;
Date: 23 MAY 2010;
DCM: HACVJABB;
Product of: Thailand;
PCB Sticker: 2061-771692-101 05P;
PCB Revision: 2060-771692-001 REV P1;
;

Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 0 : BA1/2977;
1 : 1 : AB9/2745;
2 : 2 : BB4/2996;
3 : 3 : B55/2901;

;

ROM F/W: 00020028;
Heads map: 0,1,2,3;
Preamp vendor: 0x0001;
Preamp revision: 0x0003;

;

WD7500BPKX-00HPJT0, DCM HBOTJHK, Western Digital 750GB SATA 2.5 Hard Drive

HDD with Serial Number: WX21A1475069;
Model: WD7500BPKX-00HPJT0;
Date: 20 FEB 2014;
DCM: HBOTJHK;
Product of: Malaysia;
PCB Sticker: 771629-106 AK;
PCB Revision: 2060-771629-006 REV A;
;

Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 0 : AE0/2784;
1 : 1 : B6C/2924;
2 : 2 : ADE/2782;
3 : 3 : B42/2882;

;

;
ROM F/W version: 0015008;
Heads map: 0,1,2,3;
Preamp vendor: 0x0001;
Preamp revision: 0x0003;

HDD with Serial Number: WX11A46HHH74;
Model: WD7500BPKX-00HPJT0;
Date: 18 SEP 2016;
DCM: HBOTJHK;
Product of: Malaysia;
PCB Sticker: 771629-106 AL;
PCB Revision: 2060-771629-006 REV A;
;

——————————;
LH  : PH  : Micro Jog (Hex/Dec);
——————————;
0   : 0   : B94/2964;
1   : 1   : B62/2914;
2   : 2   : B96/2966;
3   : 3   : AEE/2798;
;
ROM F/W Version: 0005000E;
Heads map: 0,1,2,3;
Preamp vendor: 0x0001;
Preamp revision: 0x0003

;

WD7500BPKX-75HPJT0, DCM EHOTJHK, Western Digital 750GB SATA 2.5 Hard Drive

HDD with Serial Number: WX71EB3EJ112;
Model: WD7500BPKX-75HPJT0;
Date: 14 FEB 2014;
DCM: EHOTJHK;
Product of: Malaysia;
PCB Sticker: 771629-106 AK;
PCB Revision: 2060-771629-006 REV A;
;

Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 0 : AEE/2798;
1 : 1 : BC8/3016;
2 : 2 : AFC/2812;
3 : 3 : BAA/2986;

;

;
ROM F/W version: 0015008;
Heads map: 0,1,2,3;
Preamp vendor: 0x0001;
Preamp revision: 0x0003;

;
