Category: HDD

HDD #1 Specs:;
Serial Number: WXD1A83X4635;
Model: WD7500BPKX-80HPJT0;
Date: 11 OCT 2013;
DCM: HHOTJHK;
Product of: Malaysia;
PCB Sticker: 2061-771629-106 AK;
PCB Revision: 2060-771629-006 REV A;

;

Micro Jogs;
——————————;
LH  : PH  : Micro Jog (Hex/Dec);
——————————;
0   : 0   : B66/2918;
1   : 1   : B06/2822;
2   : 2   : B6E/2926;
3   : 3   : AFA/2810;

;

ROM F/W version……………………. : 00150005;
Preamp vendor……………………… : 0x0001;
Preamp revision……………………. : 0x0003;

;

HDD with Serial Number: WX61AC4L4H5K;
Model: WD7500BPKX-22HPJT0;
Date: 01 FEB 2015;
DCM: HHNTJHK;
Product of: Malaysia;
PCB Sticker: 771629-106 AK;
PCB Revision: 2060-771629-006 REV A;

;

Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 0 : B40/2880;
1 : 1 : B00/2816;
2 : 2 : B34/2868;
3 : 3 : B36/2870;
ROM F/W version……………………. : 0015000D;
Heads map…………………………. : 0,1,2,3;
Preamp vendor……………………… : 0x0001;
Preamp revision……………………. : 0x0003;

;

HDD with Serial Number: WX41AB2S6776;
Model: WD7500BPVT-00A1YT0;
Date: APR 12 2013;
DCM: HBCTJBN;
Product of: Malaysia;
PCB Sticker: 771823-300 AH;
PCB Revision: 2060-771823-000 REV A;
;

;

HDD with Serial Number: WXA1A74LU9J2;
Model: WD7500BPKX-22HPJT0;
Date: 15 SEP 2014;
DCM: HHNTJHN;
Product of: Malaysia;
PCB Sticker: 771629-106 AK;
PCB Revision: 2060-771629-006 REV A;
;

Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 0 : B94/2964;
1 : 1 : B34/2868;
2 : 2 : B84/2948;
3 : 3 : B6C/2924;
ROM F/W version……………………. : 0015000B;
Heads map…………………………. : 0,1,2,3;
Preamp vendor……………………. : 0x0001;
Preamp revision………………….. : 0x0003;

;

Specifications;

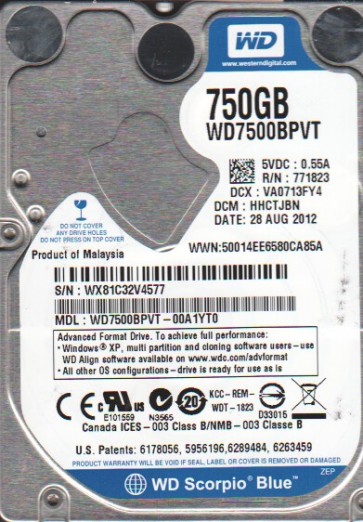

SN: WX81C32V4577;
Model: WD7500BPVT-00A1YT0;
Date: 28 AUG 2012;
DCM: HHCTJBN ;
Product of: Malaysia;
PCB Sticker: 771823-300 AE;
PCB Revision: 2060-771823-000 REV A;

;

Micro Jogs;
——————————;
LH  : PH  : Micro Jog (Hex/Dec);
——————————;
0   : 0   : FEC/4076;
1   : 1   : 1079/4217;
2   : 2   : 100A/4106;
3   : 3   : 1076/4214;
;

;

ROM F/W version……………………. : 00030052;
Preamp vendor……………………… : 0x0001;
Preamp revision……………………. : 0x0000;

;

HDD with Serial Number: WXW1E747Z81S;
Model: WD7500BPKX-75HPJT0;
Date: 03 NOV 2014;
DCM: EANTJAK;
Product of: Malaysia;
PCB Sticker: 771629-106 AK;
PCB Revision: 2060-771629-006 REV A;
;

Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 0 : B7A/2938;
1 : 1 : BA6/2982;
2 : 2 : B48/2888;
3 : 3 : BA0/2976;

;

;
ROM F/W version: 001500D;
Heads map: 0,1,2,3;
Preamp vendor: 0x0001;
Preamp revision: 0x0003;

;

HDD with Serial Number: WXH1CB1Y4199;
Model: WD7500BPVT-00A1YT0;
Date: 12 JAN 2012;
DCM: HHCVJHB;
Product of: Malaysia;
PCB Sticker: 771823-300 02P;
PCB Revision: 2060-771823-000 REV A;
;

Micro Jogs;
——————————;
LH  : PH  : Micro Jog (Hex/Dec);
——————————;
0   : 0   : FFF/4095;
1   : 1   : EB5/3765;
2   : 2   : 102C/4140;
3   : 3   : EB7/3767;
ROM F/W version……………………. : 0003001U;
Heads map…………………………. : 0,1,2,3;
Preamp vendor……………………. : 0x0001;
Preamp revision………………….. : 0x0000;

;

HDD with Serial Number: WXJ1EA3LRLY7;
Model: WD7500BPKX-75HPJT0;
Date: 05 FEB 2014;
DCM: EAOTJAK;
Product of: Malaysia;
PCB Sticker: 771629-106 AK;
PCB Revision: 2060-771629-006 REV A;
;

Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 0 : B18/2840;
1 : 1 : AC2/2754;
2 : 2 : B20/2848;
3 : 3 : AA8/2728;
ROM F/W version……………………. : 00150008;
Heads map…………………………. : 0,1,2,3;
Preamp vendor……………………. : 0x0001;
Preamp revision………………….. : 0x0003;

;

HDD with Serial Number: WX31AC0R0301;
Model: WD7500BPVT-00HXZT1;
Date: 09 JAN 2012;
DCM: HACVJBB;
Product of: Thailand;
PCB Sticker: 771692-205 AA;
PCB Revision: 2060-771692-005 REV A;
;

Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 0 : B8B/2955;
1 : 1 : B1C/2844;
2 : 2 : B70/2928;
3 : 3 : B32/2866;
ROM F/W version……………………. : 00100019;
Heads map…………………………. : 0,1,2,3;
Preamp vendor……………………. : 0x0001;
Preamp revision………………….. : 0x0003;

;

HDD with Serial Number: WX41A962CX3L;
Model: WD7500BPKX-00HPJT0;
Date: 27 DEC 2016;
DCM: HAOTJAB;
Product of: Malaysia;
PCB Sticker: 771629-106 AL;
PCB Revision: 2060-771629-006 REV A;

;

Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 0 : BB2/2994;
1 : 1 : A62/2658;
2 : 2 : BBC/3004;
3 : 3 : A78/2680;

;

ROM F/W version: 0005000E;
Heads map: 0,1,2,3;
Preamp vendor: 0x0001;
Preamp revision: 0x0003;

;

HDD with Serial Number: WXM1AC57933N;
Model: WD7500BPKX-00HPJT0;
Date: 31 DEC 2018;
DCM: HAOTJAB;
Product of: Malaysia;
PCB Sticker: 771629-106 AK;
PCB Revision: 2060-771629-006 REV A;

;

Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 0 : C04/3076;
1 : 1 : AC4/2756;
2 : 2 : C3C/3132;
3 : 3 : AB8/2744;

;

ROM F/W version: 00150005;
Heads map: 0,1,2,3;
Preamp vendor: 0x0001;
Preamp revision: 0x0003;

;
