WD7500BMVW-11S5XS1, DCM EBOTJBK, Western Digital 750GB USB 2.5 Hard Drive

HDD with Serial Number: WXQ1E82JTSH1;
Model: WD7500BMVW-11S5XS1;
Date: 21 APR 2015;
DCM: EBOTJBK;
Product of: Malaysia;
PCB Sticker: 771801-102 ACD1;
PCB Revision: 2060-771801-002 REV A;
;

Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 0 : 115C/4444;
1 : 1 : 1158/4440;
2 : 2 : 1118/4376;
ROM F/W version……………………. : 00030080;
Heads map…………………………. : 0,1,2;
Preamp vendor……………………… : 0x0001;
Preamp revision……………………. : 0x0000;

;

WD7500BMVW-11AJGS1, DCM SBKTJBN, Western Digital 750GB USB 2.5 Hard Drive

HDD with Serial Number: WXJ1E745KEP0;
Model: WD7500BMVW-11AJGS1;
Date: 01 JUN 2015;
DCM: SBKTJBN;
Product of: Malaysia;
PCB Sticker: 771961-000 01PD10;
PCB Revision: 2060-771961-000 REV P1;
;

Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 1 : 00/0;
1 : 2 : 00/0;
2 : 3 : 00/0;
ROM F/W version……………………. : 00160056;
Heads map…………………………. : 1,2,3;
Preamp vendor……………………… : 0x0001;
Preamp revision……………………. : 0x0000;

;

WD7500BMVW-11AJGS3, DCM HHKTJBKB, Western Digital 750GB USB 2.5 Hard Drive

HDD with Serial Number: WX71AC3E0122;
Model: WD7500BMVW-11AJGS3;
Date: 24 APR 2014;
DCM: HHKTJBKB;
Product of: Thailand;
PCB Sticker: 771961-101 AC;
PCB Revision: 2060-771961-001 REV A;
;

——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0   : 0   : 00/0;
1   : 1   : 00/0;
2   : 2   : 00/0;
;
ROM F/W Version: 0016001C;
Heads map: 0,1,2;
Preamp vendor: 0x0001;
Preamp revision: 0x0000

;

WD7500BMVW-11AJGS1, DCM SBKTJHK, Western Digital 750GB USB 2.5 Hard Drive

HDD with Serial Number: WXQ1E93UNJF9;
Model: WD7500BMVW-11AJGS1;
Date: 24 APR 2014;
DCM: SBKTJHK;
Product of: Malaysia;
PCB Sticker: 771961-001 AD;
PCB Revision: 2060-771961-001 REV A;
;

Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 0 : 00/0;
1 : 1 : 00/0;
2 : 3 : 00/0;
ROM F/W version……………………. : 0016001C;
Heads map…………………………. : 0,1,3;
Preamp vendor……………………… : 0x0001;
Preamp revision……………………. : 0x0000;

;

WD7500BMVW-11AJGS4, DCM , Western Digital 750GB USB 2.5 Hard Drive

HDD with Serial Number: WX41AA619V30;
Model: WD7500BMVW-11AJGS4;
Date: 11 MAY 2019;
Product of: Malaysia;
PCB Sticker: 771961-S01 AC;
PCB Revision: 2060-771961-001 REV B;
;

——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0   : 0   : 00/0;
1   : 1   : 00/0;
2   : 2   : 00/0;
3   : 3   : 00/0;
;
ROM F/W Version: 00160094;
Heads map: 0,1,2,3;
Preamp vendor: 0x0000;
Preamp revision: 0x0000

;

WD7500BMVW-11AJGS1, DCM SBOTJBB, Western Digital 750GB USB 2.5 Hard Drive

HDD with Serial Number: WX51E43HUL04;
Model: WD7500BMVW-11AJGS1;
Date: 28 NOV 2015;
DCM: SBOTJBB;
Product of: Malaysia;
PCB Sticker: 771961-001 AAD3;
PCB Revision: 2060-771961-001 REV A;
;

——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0   : 0   : 00/0;
1   : 1   : 00/0;
2   : 3   : 00/0;
;
ROM F/W Version: 0016007C;
Heads map: 0,1,3;
Preamp vendor: 0x0001;
Preamp revision: 0x0000

;

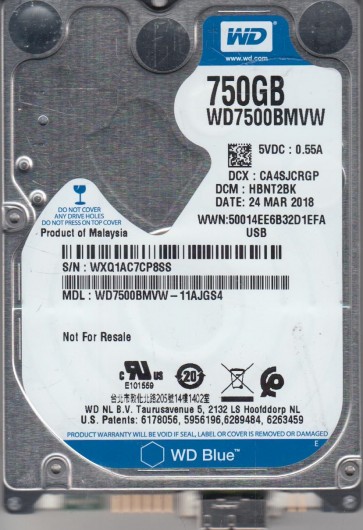

WD7500BMVW-11AJGS4, DCM HBNT2BK, Western Digital 750GB USB 2.5 Hard Drive

HDD with Serial Number: WXQ1AC7CP8SS;
Model: WD7500BMVW-11AJGS4;
Date: 24 MAR 2018;
DCM: HBNT2BK;
Product of: Malaysia;
PCB Sticker: 771961-S01 AD;
PCB Revision: 2060-771961-001 REV B;
;

Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0   : 0   : 00/0;
1   : 1   : 00/0;
2   : 2   : 00/0;
ROM F/W version……………………. : 00160094;
Heads map…………………………. : 0,1,2;
Preamp vendor……………………. : 0x0000;
Preamp revision………………….. : 0x0000;

;

WD7500BMVW-11AJGS1, DCM SBOTJBN, Western Digital 750GB USB 2.5 Hard Drive

HDD with Serial Number: WXD1EB3JYD48;
Model: WD7500BMVW-11AJGS1;
Date: 03 APR 2015;
DCM: SBOTJBN;
Product of: Malaysia;
PCB Sticker: 771961-001 AE;
PCB Revision: 2060-771961-001 REV A;
;

Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 0 : 00/0;
1 : 1 : 00/0;
2 : 3 : 00/0;
ROM F/W version……………………. : 00160056;
Heads map…………………………. : 0,1,3;
Preamp vendor……………………… : 0x0001;
Preamp revision……………………. : 0x0000;

;

WD7500BMVW-11AJGS4, DCM HHNT2BK, Western Digital 750GB USB 2.5 Hard Drive

HDD with Serial Number: WXF1A389AH1H;
Model: WD7500BMVW-11AJGS4;
Date: 08 APR 2018;
DCM: HHNT2BK;
Product of: Malaysia;
PCB Sticker: 771961-S01 AD;
PCB Revision: 2060-771961-001 REV B;
;

——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0   : 0   : 00/0;
1   : 2   : 00/0;
2   : 3   : 00/0;
;
ROM F/W Version: 00160094;
Heads map: 0,2,3;
Preamp vendor: 0x0000;
Preamp revision: 0x0000

;

WD7500BMVW-11AJGS2, DCM , Western Digital 750GB USB 2.5 Hard Drive

HDD with Serial Number: WXL1E45DYDKD;
Model: WD7500BMVW-11AJGS2;
Date: 02 MAR 2019;
Product of: Thailand;
PCB Sticker: 771961-J01 AC;
PCB Revision: 2060-771961-001 REV B;
;

;
