Category: HDD

HDD with Serial Number: WXM1AC79AE21;
Model: WD7500BMVW-11AJGS2;
Date: 09 MAR 2018;
DCM: HBNTJHK;
Product of: Malaysia;
PCB Sticker: 771961-G01 AH;
PCB Revision: 2060-771961-001 REV B;
;

——————————;
LH  : PH  : Micro Jog (Hex/Dec);
——————————;
0   : 0   : 00/0;
1   : 2   : 00/0;
2   : 3   : 00/0;
;
ROM F/W Version: 00160094;
Heads map: 0,2,3;
Preamp vendor: 0x0001;
Preamp revision: 0x0000

;

HDD with Serial Number: WXB1A3372118;
Model: WD7500BMVW-11S5XS0;
Date: 14 NOV 2015;
DCM: HBMVJBK;
Product of: Malaysia;
PCB Sticker: 771801-002 AGD27;
PCB Revision: 2060-771801-002 REV A;
;

——————————;
LH  : PH  : Micro Jog (Hex/Dec);
——————————;
0   : 1   : 113A/4410;
1   : 2   : 100C/4108;
2   : 3   : 114F/4431;
;
ROM F/W Version: 00030080;
Heads map: 1,2,3;
Preamp vendor: 0x0001;
Preamp revision: 0x0000

;

HDD with Serial Number: WXC1E33EUFY3;
Model: WD7500BMVW-11AJGS0;
Date: 26 APR 2014;
DCM: SBMTJBB;
Product of: Malaysia;
PCB Sticker: 771961-F00 01P;
PCB Revision: 2060-771961-000 REV P1;

;

Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 1 : 00/0;
1 : 2 : 00/0;
2 : 3 : 00/0;

;

ROM F/W version……………………. : 0016001C;
Preamp vendor……………………… : 0x0001;
Preamp revision……………………. : 0x0000;

;

HDD with Serial Number: WXB1A34K2744;
Model: WD7500BMVW-11AJGS2;
Date: 18 MAY 2014;
DCM: HHKTJHK;
Product of: Malaysia;
PCB Sticker: 771961-G01 AD;
PCB Revision: 2060-771961-001 REV A;
;

Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 0 : 00/0;
1 : 1 : 00/0;
2 : 3 : 00/0;
ROM F/W version……………………. : 0016001C;
Heads map…………………………. : 0,1,3;
Preamp vendor……………………. : 0x0001;
Preamp revision………………….. : 0x0000;

HDD with Serial Number: WX71A6577SRV;
Model: WD7500BMVW-11AJGS2;
Date: 18 NOV 2015;
DCM: HHKTJHK;
Product of: Thailand;
PCB Sticker: 771961-G01 AG;
PCB Revision: 2060-771961-001 REV B;
;

Micro Jogs;
——————————;
LH  : PH  : Micro Jog (Hex/Dec);
——————————;
0   : 0   : 00/0;
1   : 1   : 00/0;
2   : 3   : 00/0;
ROM F/W version……………………. : 0016007C;
Heads map…………………………. : 0,1,3;
Preamp vendor……………………. : 0x0001;
Preamp revision………………….. : 0x0000;

;

HDD with Serial Number: WX61C12H4798;
Model: WD7500BMVW-11S5XS0;
Date: 01 JUN 2012;
DCM: HHOVJHK;
Product of: Malaysia;
PCB Sticker: 771801-002 AC;
PCB Revision: 2060-771801-002 REV A;

;

Micro Jogs;
——————————;
LH  : PH  : Micro Jog (Hex/Dec);
——————————;
0   : 0   : FBF/4031;
1   : 1   : 1005/4101;
2   : 2   : FE3/4067;
3   : 3   : FEB/4075;
ROM F/W version……………………. : 0003003V;
Preamp vendor……………………… : 0x0001;
Preamp revision……………………. : 0x0000;
;
;
;
;

;

HDD with Serial Number: WX51E43NKD43;
Model: WD7500BMVW-11AJGS0;
Date: 24 MAY 2016;
DCM: SHKTJHK;
Product of: Malaysia;
PCB Sticker: 771961-F00 01P;
PCB Revision: 2060-771961-000 REV P1;
;

Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 0 : 00/0;
1 : 1 : 00/0;
2 : 2 : 00/0;
ROM F/W version……………………. : 0016007C;
Heads map…………………………. : 0,1,2;
Preamp vendor……………………… : 0x0001;
Preamp revision……………………. : 0x0000;

;

HDD with Serial Number: WXL1EB3FCLS8;
Model: WD7500BMVW-11AJGS2;
Date: 24 MAY 2014;
DCM: SBKTJBK;
Product of: Malaysia;
PCB Sticker: 771961-G01 AD;
PCB Revision: 2060-771961-001 REV A;
;

——————————;
LH  : PH  : Micro Jog (Hex/Dec);
——————————;
0   : 0   : 00/0;
1   : 1   : 00/0;
2   : 3   : 00/0;
;
ROM F/W Version: 0016001C;
Heads map: 0,1,3;
Preamp vendor: 0x0001;
Preamp revision: 0x0000

;

HDD with Serial Number: WX31E13CX913;
Model: WD7500BMVW-11S5XS0;
Date: 20 MAY 2016;
DCM: SHKTJHK;
Product of: Malaysia;
PCB Sticker: 771801-002 AGD27;
PCB Revision: 2060-771801-002 REV A;
;

Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 0 : 11B5/4533;
1 : 1 : 1043/4163;
2 : 3 : 1014/4116;
ROM F/W version……………………. : 00030080;
Heads map…………………………. : 0,1,3;
Preamp vendor……………………… : 0x0001;
Preamp revision……………………. : 0x0000;

;

HDD with Serial Number: WCAPT0597618;
Model: WD7500AYYS-01RCA0;
Date: 10 NOV 2007;
DCM: HBRNHA2ABB;
Product of: Thailand;
PCB Sticker: 2061-701474-300 AA;
PCB Revision: 2060-701474-002 REV A;
;

;

Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 0 : 85C/2140;
1 : 1 : 888/2184;
2 : 2 : 866/2150;
3 : 3 : 86C/2156;
4 : 4 : 842/2114;
5 : 5 : 8BC/2236;
6 : 6 : 8A8/2216;
7 : 7 : 8A4/2212;
;
ROM F/W version……………………. : 00200007;
Preamp vendor……………………… : 0x0000;
Preamp revision……………………. : 0x0002;

;

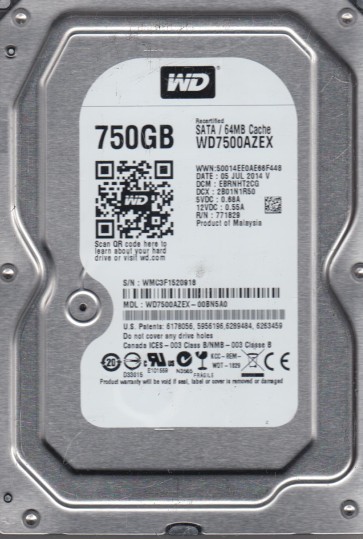

HDD with Serial Number: WMC3F1520918;
Model: WD7500AZEX-00BN5A0;
Date: 05 JUL 2014;
DCM: EBRNHT2CG;
Product of: Malaysia;
PCB Sticker: 771829-704 AA;
PCB Revision: 2060-771829-004 REV A;
;

Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 0 : 00/0;
1 : 1 : 00/0;
ROM F/W version……………………. : 00060038;
Heads map…………………………. : 0,1;
Preamp vendor……………………. : 0x0000;
Preamp revision………………….. : 0x0003;

;
