Category: HDD

HDD with Serial Number: WCC1S0416239;
Model: WD7500AZEX-00ZF5A0;
Date: 11 SEP 2012;
DCM: EBNNNV2MHB;
Product of: Thailand;
PCB Sticker: 771824-506 AC;
PCB Revision: 2060-771824-006 REV A;
;

;

HDD #1 Specs:;
Serial Number: WCAU47723520;
Model: WD7500AAVS-00D7B1;
Date: 03 MAR 2009;
DCM: HHNNNT2MAB;
Product of: Thailand;
PCB Sticker: 2061-701590-A00 AD;
PCB Revision: 2060-701590-000 REV A;

;

Micro Jogs;
——————————;
LH  : PH  : Micro Jog (Hex/Dec);
——————————;
0   : 2   : A99/2713;
1   : 3   : A4B/2635;
2   : 4   : AA3/2723;
3   : 5   : A11/2577;
4   : 6   : AB7/2743;
ROM F/W version……………………. : 000500C2;
Preamp vendor……………………… : 0x0000;
Preamp revision……………………. : 0x0002;
;
;
;
;

;

Specifications;
SN: WCAU44132090;
Model: WD7500AAVS-00D7B1;
Date: 26 OCT 2008;
DCM: HHRNHT2CFB ;
Product of: Thailand;
PCB Sticker: 2061-701590-B00 02P;
PCB Revision: 2060-701590-000 REV A;

;

;

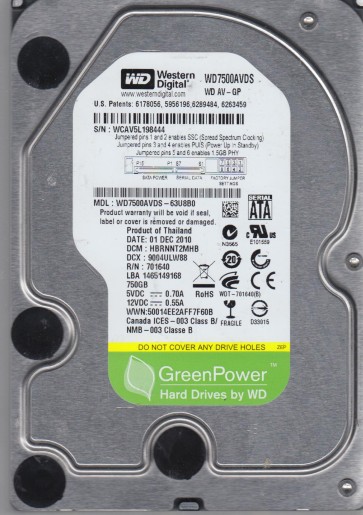

HDD with Serial Number: WCAV5L198444;
Model: WD7500AVDS-63U8B0;
Date: 01 DEC 2010;
DCM: HBRNNT2MHB;
Product of: Thailand;
PCB Sticker: 2061-701640-700 AG;
PCB Revision: 2060-701640-001 REV A;
;

Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 0 : CA3/3235;
1 : 1 : CD2/3282;
2 : 2 : C65/3173;

;

ROM F/W: 009000A1;
Heads map: 0,1,2;
Preamp vendor: 0x0000;
Preamp revision: 0x0002;

;

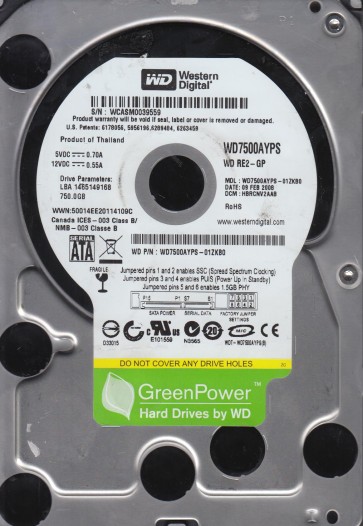

HDD #1 Specs:;
SN: WCASM0039559;
Model: WD7500AYPS-01ZKB0;
Date: 09 FEB 2008;
DCM: HBRCNV2AAB ;
Product of: Thailand;
PCB Sticker: 2061-701474-600 01P;
PCB Revision: 2060-701474-004 REV A;

;

Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 0 : 93A/2362;
1 : 1 : A1C/2588;
2 : 2 : 9E6/2534;
3 : 3 : 9C8/2504;
4 : 6 : 9E0/2528;
5 : 7 : 9B2/2482;

;

ROM F/W version……………………. : 005C002D;
Preamp vendor……………………… : 0x0000;
Preamp revision……………………. : 0x0002;

;

HDD #1 Specs:;
SN: WCAPT0800548;
Model: WD7500AYYS-01RCA0;
Date: 23 AUG 2008;
DCM: HARNHA2AAB ;
Product of: Thailand;
PCB Sticker: 2061-701474-300 AB;
PCB Revision: 2060-701474-002 REV A;

Micro Jogs;
——————————;
LH  : PH  : Micro Jog (Hex/Dec);
——————————;
0   : 0   : 8DC/2268;
1   : 1   : 8F6/2294;
2   : 2   : 870/2160;
3   : 3   : 8C2/2242;
4   : 4   : 8D2/2258;
5   : 5   : 914/2324;
6   : 6   : 8BC/2236;
7   : 7   : 8D4/2260;
;
ROM F/W version……………………. : 00200007;
Preamp vendor……………………… : 0x0000;
Preamp revision……………………. : 0x0002;
;
HDD #2 Specs:;
SN: WCAPT1081070;
Model: WD7500AYYS-01RCA0;
Date: 29 JUN 2008;
DCM: HARNHA2AAB ;
Product of: Thailand;
PCB Sticker: 2061-701474-300 AC;
PCB Revision: 2060-701474-002 REV A;
;

;

HDD with Serial Number: WCAPT0971026;
Model: WD7500AYYS-01RCA0;
Date: 23 APR 2008;
DCM: HARNNA2ABB;
Product of: Thailand;
PCB Sticker: 2061-701474-300 AC;
PCB Revision: 2060-701474-002 REV A;
;

Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 0 : 836/2102;
1 : 1 : 9E4/2532;
2 : 2 : 832/2098;
3 : 3 : 8EC/2284;
4 : 4 : 8D6/2262;
5 : 5 : A22/2594;
6 : 6 : 89E/2206;
7 : 7 : A18/2584;
ROM F/W version……………………. : 00200007;
Heads map…………………………. : 0,1,2,3,4,5,6,7;
Preamp vendor……………………. : 0x0000;
Preamp revision………………….. : 0x0002;

;

HDD with Serial Number: WCAPT0369413;
Model: WD7500AYYS-01RCA0;
Date: 30 AUG 2007;
DCM: HBRNHA2AAB;
Product of: Thailand;
PCB Sticker: 2061-701474-300 AA;
PCB Revision: 2060-701474-002 REV A;
;

Micro Jogs;
——————————;
LH  : PH  : Micro Jog (Hex/Dec);
——————————;
0   : 0   : 900/2304;
1   : 1   : 944/2372;
2   : 2   : 8DA/2266;
3   : 3   : 8DE/2270;
4   : 4   : 8DE/2270;
5   : 5   : 910/2320;
6   : 6   : 8AE/2222;
7   : 7   : 8DE/2270;
ROM F/W version……………………. : 00200006;
Heads map…………………………. : 0,1,2,3,4,5,6,7;
Preamp vendor……………………. : 0x0000;
Preamp revision………………….. : 0x0002;
;
;
;

;

HDD with Serial Number: WCAPT0880488;
Model: WD7500AAKS-00RBA0;
Date: 12 MAR 2008;
DCM: HBRNNA2AAB;
Product of: Thailand;
PCB Sticker: 2061-701474-300 AB;
PCB Revision: 2060-701474-002 REV A;
;

;

HDD with Serial Number: WMATR0229856;
Model: WD7500AALX-009BA0;
Date: 16 JAN 2012;
DCM: HHNNNTJCH;
Product of: Malaysia;
PCB Sticker: 2061-771640-303 AC;
PCB Revision: 2060-771640-003 REV A;

;

Micro Jogs;
——————————;
LH  : PH  : Micro Jog (Hex/Dec);
——————————;
0   : 0   : C76/3190;
1   : 1   : D54/3412;
2   : 2   : C62/3170;
ROM F/W version……………………. : 00010068;
Preamp vendor……………………… : 0x0001;
Preamp revision……………………. : 0x0001;
;
;
;
;

;
