HDD #1 Specs:;
Serial Number: WCAU47723572;
Model: WD7500AAVS-00D7B1;
Date: 03 MAR 2009;
DCM: DANNHT2MFB;
Product of: Thailand;
PCB Sticker: 2061-701590-A00 AD;
PCB Revision: 2060-701590-000 REV A;
;
;
Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 2 : A60/2656;
1 : 3 : A39/2617;
2 : 4 : A58/2648;
3 : 6 : A7D/2685;
4 : 7 : A62/2658;
ROM F/W version……………………. : 000500C2;
Preamp vendor……………………… : 0x0000;
Preamp revision……………………. : 0x0002;
;
;
;
;
;

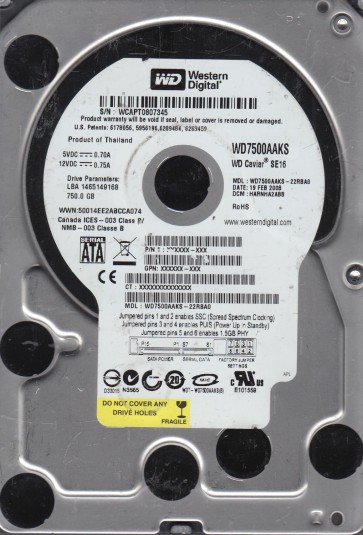

HDD with Serial Number: WCAPT0807345;
Model: WD7500AAKS-22RBA0;
Date: 19 FEB 2008;
DCM: HARNHA2ABB;
Product of: Thailand;
PCB Sticker: 2061-701474-300 AA;
PCB Revision: 2060-701474-002 REV A;
;
Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 0 : 91C/2332;
1 : 1 : 8FA/2298;
2 : 2 : 8F0/2288;
3 : 3 : 87A/2170;
4 : 4 : 90A/2314;
5 : 5 : 8B4/2228;
6 : 6 : 914/2324;
7 : 7 : 8B2/2226;
ROM F/W version……………………. : 00200007;
Heads map…………………………. : 0,1,2,3,4,5,6,7;
Preamp vendor……………………… : 0x0000;
Preamp revision……………………. : 0x0002;
HDD with Serial Number: WCAPT0832092;
Model: WD7500AAKS-22RBA0;
Date: 01 MAR 2008;
DCM: HARNHA2ABB;
Product of: Thailand;
PCB Sticker: 2061-701474-300 AA;
PCB Revision: 2060-701474-002 REV A;
;
Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 0 : 8C8/2248;
1 : 1 : 8D8/2264;
2 : 2 : 868/2152;
3 : 3 : 8E6/2278;
4 : 4 : 88C/2188;
5 : 5 : 8FA/2298;
6 : 6 : 8E2/2274;
7 : 7 : 8E0/2272;
ROM F/W version……………………. : 00200007;
Heads map…………………………. : 0,1,2,3,4,5,6,7;
Preamp vendor……………………. : 0x0000;
Preamp revision………………….. : 0x0002;
;
HDD with Serial Number: WCATR7587169;
Model: WD7500AALX-009BA0;
Date: 16 JUN 2011;
DCM: HHRNHTJCAB;
Product of: Thailand;
PCB Sticker: 2061-771640-K03 AC;
PCB Revision: 2060-771640-003 REV A;
;
ROM F/W 0001005M;
Heads map 1,2,3;
Preamp Vendor: x001;
Preamp revision: x001;
;
Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 1 : CCA/3274;
1 : 2 : C36/3126;
2 : 3 : CA7/3239
;
Specifications;
SN: WCAU43912285;
Model: WD7500AAVS-00D7B1;
Date: 27 OCT 2008;
DCM: DHNNHT2AFB ;
Product of: THAILAND;
PCB Sticker: 2061-701537-Q00 AD;
PCB Revision: 2060-701537-004 REV A;
;
;
;
HDD with Serial Number: WCAPT0752203;
Model: WD7500AAKS-22RBA0;
Date: 17 AUG 2008;
DCM: HARNNA2AAB;
Product of: Thailand;
PCB Sticker: 2061-701474-300 AA;
PCB Revision: 2060-701474-002 REV A;
;
Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 0 : 90A/2314;
1 : 1 : 8EA/2282;
2 : 2 : 936/2358;
3 : 3 : 8D2/2258;
4 : 4 : 93E/2366;
5 : 5 : 8B6/2230;
6 : 6 : 918/2328;
7 : 7 : 8D4/2260;
ROM F/W version……………………. : 00200007;
Heads map…………………………. : 0,1,2,3,4,5,6,7;
Preamp vendor……………………. : 0x0000;
Preamp revision………………….. : 0x0002;
;
Specifications;

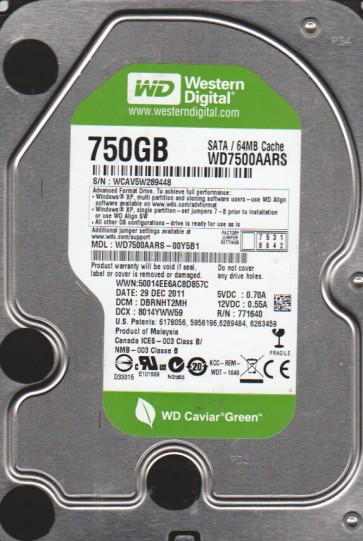

SN: WCAV5W289448;
Model: WD7500AARS-00Y5B1;
Date: 29 DEC 2011;
DCM: DBRNHT2MH ;
Product of: Malaysia;
PCB Sticker: 771640-B03 AD;
PCB Revision: 2060-771640-003 REV A;
;
Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 0 : BA7/2983;
1 : 2 : B9A/2970;
2 : 3 : CAA/3242;
ROM F/W version……………………. : 0015004G;
Preamp vendor……………………… : 0x0000;
Preamp revision……………………. : 0x0002;
;
;
;
;
;
HDD #1 Specs:;
Serial Number: WCAU47712974;
Model: WD7500AAVS-00D7B1;
Date: 03 MAR 2009;
DCM: HANNHT2MBB;
Product of: Thailand;
PCB Sticker: 2061-701590-A00 AD;
PCB Revision: 2060-701590-000 REV A;
;
Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 2 : A08/2568;
1 : 3 : AAD/2733;
2 : 4 : A23/2595;
3 : 5 : A91/2705;
4 : 6 : 9EA/2538;
ROM F/W version……………………. : 000500C2;
Preamp vendor……………………… : 0x0000;
Preamp revision……………………. : 0x0002;
;
;
;
;
;
HDD with Serial Number: WCAPT0589057;
Model: WD7500AAKS-22RBA0;
Date: 28 OCT 2007;
DCM: HBRNHA2ABB;
Product of: Thailand;
PCB Sticker: 2061-701474-300 AA;
PCB Revision: 2060-701474-002 REV A;
;
;
Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 0 : 8B6/2230;
1 : 1 : 8C8/2248;
2 : 2 : 90A/2314;
3 : 3 : 8E6/2278;
4 : 4 : 8B0/2224;
5 : 5 : 918/2328;
6 : 6 : 904/2308;
7 : 7 : 916/2326;
;
ROM F/W version: 20.07K;
Heads map: 0,1,2,3,4,5,6,7;
Preamp vendor: 0x0000;
Preamp revision: 0x0002;
;
HDD with Serial Number: WCAV5N583077;
Model: WD7500AARS-00Y5B1;
Date: 22 JAN 2011;
DCM: DGRNHT2CGB;
Product of: Thailand;
PCB Sticker: 2061-771640-B03 AC;
PCB Revision: 2060-771640-003 REV A;
;
Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 0 : C98/3224;
1 : 2 : C88/3208;
2 : 3 : C01/3073;
ROM F/W version……………………. : 00150031;
Preamp vendor……………………… : 0x0000;
Preamp revision……………………. : 0x0002;
;
;
;
;
;
HDD #1 Specs:;
SN: WCAU43958058;
Model: WD7500AAVS-00D7B1;
Date: 26 OCT 2008;
DCM: HARNHT2CAB ;
Product of: Thailand;
PCB Sticker: 2061-701590-A00 05P;
PCB Revision: 2060-701590-000 REV A;
;
;
Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 2 : A7C/2684;
1 : 3 : A35/2613;
2 : 4 : A9C/2716;
3 : 5 : A36/2614;
4 : 6 : AFB/2811;
5 : 7 : A0E/2574;
ROM F/W version……………………. : 000500AP;
Preamp vendor……………………… : 0x0000;
Preamp revision……………………. : 0x0002;
;
;
;
;
;
