Category: HDD

HDD with Serial Number: WCAPT0825079;
Model: WD7500AAKS-22RBA0;
Date: 19 SEP 2008;
DCM: HBRNNA2AAB;
Product of: Thailand;
PCB Sticker: 2061-701474-300 AA;
PCB Revision: 2060-701474-002 REV A;
;

Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 0 : 92A/2346;
1 : 1 : 8EE/2286;
2 : 2 : 90C/2316;
3 : 3 : 934/2356;
4 : 4 : 95E/2398;
5 : 5 : 8FE/2302;
6 : 6 : 98E/2446;
7 : 7 : 8C6/2246;

;

ROM F/W version:00200007;
Preamp vendor:0x0000;
Preamp revision:0x0002;

;

HDD with Serial Number: WCAV5N327749;
Model: WD7500AARS-00Y5B1;
Date: 15 JAN 2011;
DCM: EHNNHT2CGB;
Product of: Thailand;
PCB Sticker: 2061-771640-B03 AC;
PCB Revision: 2060-771640-003 REV A;
;

Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 0 : C0C/3084;
1 : 1 : C96/3222;
2 : 2 : BCE/3022;
3 : 3 : C44/3140;

;

ROM F/W version:00150031;
Preamp vendor:0x0000;
Preamp revision:0x0002;

;

HDD #1 Specs:;
Serial Number: WCAU47725666;
Model: WD7500AAVS-00D7B1;
Date: 03 MAR 2009;
DCM: HARNHT2MAB;
Product of: Thailand;
PCB Sticker: 2061-701590-A00 AD;
PCB Revision: 2060-701590-000 REV A;

Micro Jogs;
——————————;
LH  : PH  : Micro Jog (Hex/Dec);
——————————;
0   : 2   : A87/2695;
1   : 4   : A51/2641;
2   : 5   : A46/2630;
3   : 6   : A74/2676;
4   : 7   : 9F5/2549;

ROM F/W version……………………. : 000500C2;
Preamp Vendor……………………… : 0000;
Preamp Rev………………………… : 0002;

HDD #2 Specs:;
Serial Number: WCAU47674680;
Model: WD7500AAVS-00D7B1;
Date: 03 MAR 2009;
DCM: HARNHT2MAB;
Product of: Thailand;
PCB Sticker: 2061-701590-A00 AD;
PCB Revision: 2060-701590-000 REV A;

Micro Jogs;
——————————;
LH  : PH  : Micro Jog (Hex/Dec);
——————————;
0   : 2   : A9E/2718;
1   : 4   : ACD/2765;
2   : 5   : A79/2681;
3   : 6   : AA5/2725;
4   : 7   : A56/2646;

ROM F/W version……………………. : 000500C2;
Preamp Vendor……………………… : 0000;
Preamp Rev………………………… : 0002;

;

HDD with Serial Number: WCAPT0993690;
Model: WD7500AAKS-65RBA0;
Date: 29 APR 2008;
DCM: HARNHA2ABB;
Product of: Thailand;
PCB Sticker: 2061-701474-300 AB;
PCB Revision: 2060-701474-002 REV A;
;

Micro Jogs;
——————————;
LH  : PH  : Micro Jog (Hex/Dec);
——————————;
0   : 0   : 87A/2170;
1   : 1   : 906/2310;
2   : 2   : 896/2198;
3   : 3   : 8DA/2266;
4   : 4   : 890/2192;
5   : 5   : 8A8/2216;
6   : 6   : 884/2180;
7   : 7   : 8E8/2280

;

HDD with Serial Number: WCAV5N302772;
Model: WD7500AARS-00Y5B1;
Date: 15 JAN 2011;
DCM: HANNNT2CHB;
Product of: Thailand;
PCB Sticker: 2061-771640-B03 AC;
PCB Revision: 2060-771640-003 REV A;
;

Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 0 : CB9/3257;
1 : 2 : CA3/3235;
2 : 3 : C5C/3164;

;

ROM F/W version:00150031;
Preamp vendor:0x0000;
Preamp revision:0x0002;

;

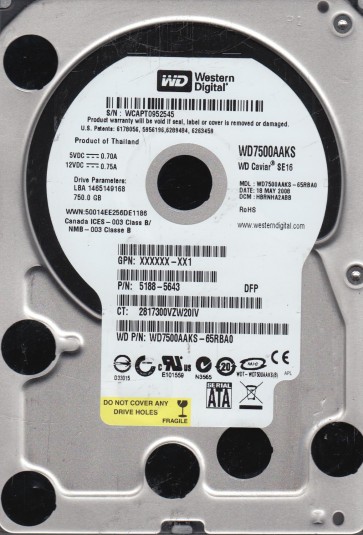

HDD with Serial Number: WCAPT0952545;
Model: WD7500AAKS-65RBA0;
Date: 18 MAY 2008;
DCM: HBRNHA2ABB;
Product of: Thailand;
PCB Sticker: 2061-701474-300 AC;
PCB Revision: 2060-701474-002 REV A;
;

Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 0 : 960/2400;
1 : 1 : 974/2420;
2 : 2 : 994/2452;
3 : 3 : 990/2448;
4 : 4 : 9AE/2478;
5 : 5 : 966/2406;
6 : 6 : 92E/2350;
7 : 7 : 994/2452;
ROM F/W version……………………. : 00200007;
Heads map…………………………. : 0,1,2,3,4,5,6,7;
Preamp vendor……………………. : 0x0000;
Preamp revision………………….. : 0x0002;

;

HDD with Serial Number: WCAV5N504623;
Model: WD7500AARS-00Y5B1;
Date: 22 JAN 2011;
DCM: HHNNHV2MHB;
Product of: Thailand;
PCB Sticker: 2061-771640-B03 AC;
PCB Revision: 2060-771640-003 REV A;
;

Micro Jogs;
——————————;
LH  : PH  : Micro Jog (Hex/Dec);
——————————;
0   : 0   : C04/3076;
1   : 1   : BC3/3011;
2   : 2   : BB4/2996

;

HDD with Serial Number: WCATR7527218;
Model: WD7500AALX-009BA0;
Date: 08 JUN 2011;
DCM: EANNNTJAHB;
Product of: Thailand;
PCB Sticker: 2061-771640-X03 AA;
PCB Revision: 2060-771640-003 REV A;

;

Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 1 : C84/3204;
1 : 2 : D1C/3356;
2 : 3 : C60/3168;

;

ROM F/W version……………………. : 0001005M;
Preamp vendor……………………… : 0x0001;
Preamp revision……………………. : 0x0001;

;

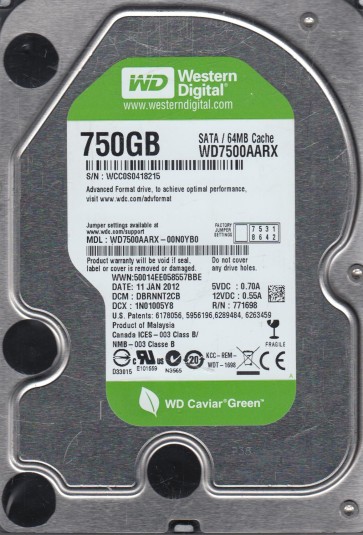

HDD with Serial Number: WCC0S0418215;
Model: WD7500AARX-00N0YB0;
Date: 11 JAN 2012;
DCM: DBRNNT2CB;
Product of: Malaysia;
PCB Sticker: 2061-771698-904 AC;
PCB Revision: 2060-771698-004 REV A;
;

Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 0 : C84/3204;
1 : 1 : CFD/3325;
2 : 3 : D09/3337;
ROM F/W version……………………. : 00510045;
Heads map…………………………. : 0,1,3;
Preamp vendor……………………. : 0x0000;
Preamp revision………………….. : 0x0005;

;

HDD #1 Specs:;
SN: WCATR3530736;
Model: WD7500AALX-009BA0;
Date: 01 DEC 2010;
DCM: EARNHTJAAB ;
Product of: Thailand;
PCB Sticker: 2061-771640-303 ABD2;
PCB Revision: 2060-771640-003 REV P1;

;

;
Micro Jogs;
——————————;
LH  : PH  : Micro Jog (Hex/Dec);
——————————;
0   : 0   : CE1/3297;
1   : 1   : C4A/3146;
2   : 2   : CE9/3305;
3   : 3   : C2D/3117;
ROM F/W version……………………. : 00020006;
Preamp vendor……………………… : 0x0001;
Preamp revision……………………. : 0x0001;
;
;
;
;

;
