Category: HDD

HDD with Serial Number: WCATR2638587;
Model: WD7500AALX-009BA0;
Date: 25 MAY 2013;
DCM: HANNHTJCB;
Product of: Thailand;
PCB Sticker: 2061-701640-D02 ACD14;
PCB Revision: 2060-701640-002 REV A;
;

Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 0 : D1F/3359;
1 : 1 : CE3/3299;
2 : 2 : CF6/3318;
ROM F/W version……………………. : 00010076;
Heads map…………………………. : 0,1,2;
Preamp vendor……………………… : 0x0001;
Preamp revision……………………. : 0x0001;

;

HDD with Serial Number: WCAU40537246;
Model: WD7500AAVS-00D7B0;
Date: 31 MAY 2008;
DCM: HHNNHT2MBB;
Product of: Thailand;
PCB Sticker: 2061-701537-Q00 AC;
PCB Revision: 2060-701537-004 REV A;

;

Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 2 : A24/2596;
1 : 3 : A89/2697;
2 : 4 : 9F3/2547;
3 : 5 : AA0/2720;
4 : 6 : A1E/2590;
5 : 7 : A91/2705;

;

ROM F/W version……………………. : 0005004K;
Preamp vendor……………………… : 0x0000;
Preamp revision……………………. : 0x0002;

;

Micro Jogs;
——————————;
LH  : PH  : Micro Jog (Hex/Dec);
——————————;
0   : 0   : 8C0/2240;
1   : 1   : 8A2/2210;
2   : 2   : 8E8/2280;
3   : 3   : 8B2/2226;
4   : 4   : 8B2/2226;
5   : 5   : 8C8/2248;
6   : 6   : 8BE/2238;
7   : 7   : 908/2312;
;
ROM F/W version……………………. : 00200004;
Preamp vendor……………………… : 0x0000;
Preamp revision……………………. : 0x0002;
;
HDD with Serial Number: WCAPT0165237;
Model: WD7500AAKS-00RBA0;
Date: 22 JUN 2007;
DCM: HARNNA2AAB;
Product of: Thailand;
PCB Sticker: 2061-701474-300 04P;
PCB Revision: 2060-701474-002 REV A;

Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 0 : 936/2358;
1 : 1 : 982/2434;
2 : 2 : 920/2336;
3 : 3 : 98E/2446;
4 : 4 : 900/2304;
5 : 5 : 994/2452;
6 : 6 : 8CE/2254;
7 : 7 : 98C/2444;

ROM F/W version……………………. : 00200004;
Preamp vendor……………………… : 0x0000;
Preamp revision……………………. : 0x0002;

HDD with Serial Number: WCAPT0005168;
Model: WD7500AAKS-00RBA0;
Date: 16 MAY 2007;
DCM: HARNNA2AAB;
Product of: Thailand;
PCB Sticker: 2061-701474-300 AA;
PCB Revision: 2060-701474-002 REV A;
;

Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 0 : 8B6/2230;
1 : 1 : 8DC/2268;
2 : 2 : 8B6/2230;
3 : 3 : 89A/2202;
4 : 4 : 888/2184;
5 : 5 : 86C/2156;
6 : 6 : 8AC/2220;
7 : 7 : 8DC/2268;
ROM F/W version……………………. : 00300024;
Heads map…………………………. : 0,1,2,3,4,5,6,7;
Preamp vendor……………………. : 0x0000;
Preamp revision………………….. : 0x0002;

;

HDD with Serial Number: WCATR4404229;
Model: WD7500AALX-009BA0;
Date: 29 DEC 2012;
DCM: HHNNHTJAH;
Product of: Thailand;
PCB Sticker: 2061-771640-303 ABD2;
PCB Revision: 2060-771640-003 REV P1;
;

Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 0 : C45/3141;
1 : 2 : C56/3158;
2 : 3 : C41/3137;

;

ROM F/W version:00010068;
Preamp vendor:0x0001;
Preamp revision:0x0001;

;

HDD with Serial Number: WCAU40452859;
Model: WD7500AAVS-00D7B0;
Date: 09 NOV 2008;
DCM: HHNNNT2CB;
Product of: Malaysia;
PCB Sticker: 2061-701537-Q00 AC;
PCB Revision: 2060-701537-004 REV A;
;

Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 2 : AA7/2727;
1 : 3 : A34/2612;
2 : 4 : A80/2688;
3 : 5 : A7C/2684;
4 : 6 : AA4/2724;
5 : 7 : A99/2713;
ROM F/W version……………………. : 000500AP;
Heads map…………………………. : 2,3,4,5,6,7;
Preamp vendor……………………. : 0x0000;
Preamp revision………………….. : 0x0002;

;

HDD with Serial Number: WCAPT1039073;
Model: WD7500AAKS-00RBA0;
Date: 15 MAY 2008;
DCM: HBRNHA2AAB;
Product of: Thailand;
PCB Sticker: 2061-701474-300 AC;
PCB Revision: 2060-701474-002 REV A;
;

;

HDD with Serial Number: WMATR0173985;
Model: WD7500AALX-009BA0;
Date: 16 JAN 2012;
DCM: HHNNHTJCH;
Product of: Malaysia;
PCB Sticker: 2061-771640-303 AC;
PCB Revision: 2060-771640-003 REV A;

;

Micro Jogs;
——————————;
LH  : PH  : Micro Jog (Hex/Dec);
——————————;
0   : 1   : D49/3401;
1   : 2   : D41/3393;
2   : 3   : D6F/3439;
ROM F/W version……………………. : 00010068;
Preamp vendor……………………… : 0x0001;
Preamp revision……………………. : 0x0001;
;
;
;
;

;

HDD #1 Specs:;
Serial Number: WCAU47784629;
Model: WD7500AAVS-00D7B1;
Date: 03 MAR 2009;
DCM: DANNHT2MAB;
Product of: Thailand;
PCB Sticker: 2061-701590-A00 AD;
PCB Revision: 2060-701590-000 REV A;

;

Micro Jogs;
——————————;
LH  : PH  : Micro Jog (Hex/Dec);
——————————;
0   : 2   : A15/2581;
1   : 4   : 9DC/2524;
2   : 5   : 9F0/2544;
3   : 6   : 9C0/2496;
4   : 7   : 9C6/2502;

;

Preamp Vendor……………………… : 0000;
Preamp Rev………………………… : 0002;
;

;

Specifications;

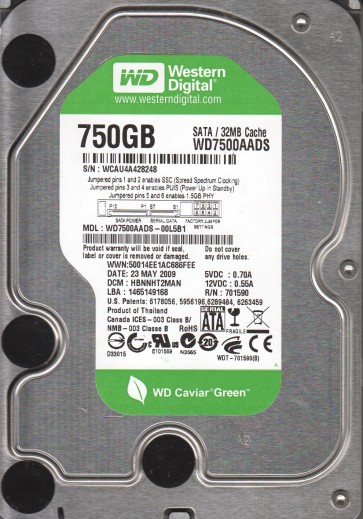

SN: WCAU4A428248;
Model: WD7500AADS-00L5B1;
Date: 23 MAY 2009;
DCM: HBNNHT2MAN ;
Product of: Thailand;
PCB Sticker: 2061-701590-J00 AD;
PCB Revision: 2060-701590-000 REV A;

;

Micro Jogs;
——————————;
LH  : PH  : Micro Jog (Hex/Dec);
——————————;
0   : 2   : A4E/2638;
1   : 3   : A03/2563;
2   : 4   : A5F/2655;
3   : 5   : 9FD/2557;
4   : 7   : A16/2582;
ROM F/W version……………………. : 000500CE;
Preamp vendor……………………… : 0x0000;
Preamp revision……………………. : 0x0002;
;
;
;
;
;
;

;

HDD with Serial Number: WCAU4A741217;
Model: WD7500AADS-00L5B1;
Date: 02 JUN 2009;
DCM: HHRNNT2MBN;
Product of: Thailand;
PCB Sticker: 2061-701590-J00 AD;
PCB Revision: 2060-701590-000 REV A;
;

Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 2 : AEF/2799;
1 : 3 : A0F/2575;
2 : 4 : AFE/2814;
3 : 5 : A16/2582;
4 : 6 : ACB/2763;
ROM F/W version……………………. : 000500CE;
Heads map…………………………. : 2,3,4,5,6;
Preamp vendor……………………. : 0x0000;
Preamp revision………………….. : 0x0002;

;
