Category: HDD

HDD with Serial Number: WCAV51216286;
Model: WD7500AADS-00M2B0;
Date: 14 AUG 2009;
DCM: DARCHV2CAB;
Product of: Thailand;
PCB Sticker: 2061-701640-700 02PD2;
PCB Revision: 2060-701640-001 REV A;
;

Micro Jogs;
——————————;
LH  : PH  : Micro Jog (Hex/Dec);
——————————;
0   : 1   : BCB/3019;
1   : 2   : BBF/3007;
2   : 3   : B76/2934;
ROM F/W version……………………. : 00900014;
Heads map…………………………. : 1,2,3;
Preamp vendor……………………. : 0x0000;
Preamp revision………………….. : 0x0002;
;
;
;

;

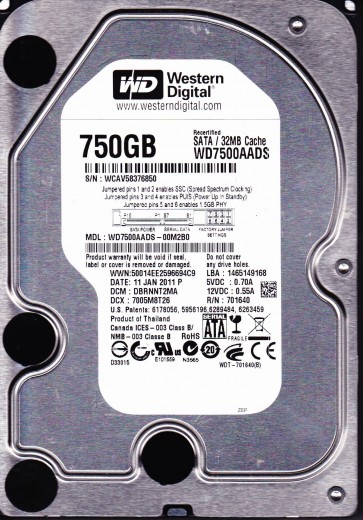

Specifications:;
SN WCAV58376850;
Model WD7500AADS-00M2B0;
Date 11 JAN 2011 P;
DCM DBRNNT2MA ;
Product of Thailand;
PCB Sticker: 2061-701640-202 04pd4;
PCB Revision: 2060-701640-002 REV A;

;

ROM F/W version……………………. : 0072003Q;
Preamp vendor……………………… : 0x0000;
Preamp revision……………………. : 0x0002;
Heads map…………………………. : 0,2,3;

;

Micro Jogs;
——————————;
LH  : PH  : Micro Jog (Hex/Dec);
——————————;
0   : 0   : C5D/3165;
1   : 2   : C5E/3166;
2   : 3   : CB9/3257;
;
;

;

HDD with Serial Number: WCAV51063486;
Model: WD7500AADS-00M2B0;
Date: 09 AUG 2009;
DCM: EARCHV2CHB;
Product of: Thailand;
PCB Sticker: 2061-701640-A00 AAD2;
PCB Revision: 2060-701640-000 REV P1;
;

Micro Jogs;
——————————;
LH  : PH  : Micro Jog (Hex/Dec);
——————————;
0   : 1   : C3A/3130;
1   : 2   : CB2/3250;
2   : 3   : C3C/3132;
ROM F/W version……………………. : 00900014;
Heads map…………………………. : 1,2,3;
Preamp vendor……………………. : 0x0000;
Preamp revision………………….. : 0x0002;

;

HDD with Serial Number: WCAV54676283;
Model: WD7500AADS-00M2B0;
Date: 26 NOV 2009;
DCM: HANCNT2MAN;
Product of: Thailand;
PCB Sticker: 2061-701640-202 03PD3;
PCB Revision: 2060-701640-002 REV A;
;

Micro Jogs;
——————————;
LH  : PH  : Micro Jog (Hex/Dec);
——————————;
0   : 0   : C2C/3116;
1   : 2   : CF3/3315;
2   : 3   : CB0/3248;
ROM F/W version……………………. : 0010002J;
Heads map…………………………. : 0,2,3;
Preamp vendor……………………. : 0x0000;
Preamp revision………………….. : 0x0002;

;

HDD with Serial Number: WMAV50161851;
Model: WD7500AADS-00M2B0;
Date: 11 JUN 2009;
DCM: HARCNV2MH;
Product of: Malaysia;
PCB Sticker: 2061-701640-A00 05PD2;
PCB Revision: 2060-701640-000 REV P1;
;

Micro Jogs;
——————————;
LH  : PH  : Micro Jog (Hex/Dec);
——————————;
0   : 0   : BC0/3008;
1   : 1   : B46/2886;
2   : 3   : B40/2880

;

HDD with Serial Number: WMAV50286202;
Model: WD7500AADS-00M2B0;
Date: 29 NOV 2009;
DCM: HHNNHT2CH;
Product of: Malaysia;
PCB Sticker: 2061-701640-202 04PD1;
PCB Revision: 2060-701640-002 REV A;
;

Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 1 : CB5/3253;
1 : 2 : C2E/3118;
2 : 3 : C4E/3150;
ROM F/W version……………………. : 0070003G;
Heads map…………………………. : 1,2,3;
Preamp vendor……………………. : 0x0000;
Preamp revision………………….. : 0x0002;

;

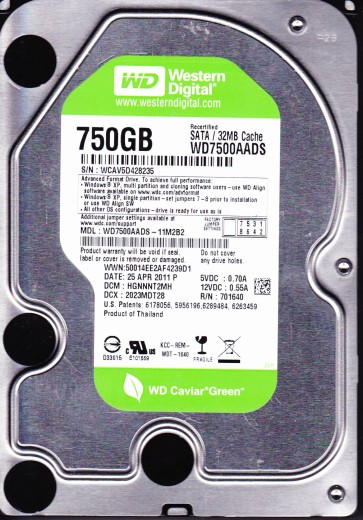

Specifications:;
SN WCAV5D428235;
Model WD7500AADS-11M2B2;
Date 25 APR 2011 P;
DCM HGNNNT2MH ;
Product of Thailand;
PCB Sticker: 2061-701640-407 ABD7;
PCB Revision: 2060-701640-007 REV A;

;

;

HDD with Serial Number: WCASJ0082609;
Model: WD7500AACS-32ZJB0;
Date: 28 AUG 2007;
DCM: HARCNV2AAB;
Product of: Thailand;
PCB Sticker: 2061-701474-300 AA;
PCB Revision: 2060-701474-002 REV A;
;

Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 1 : 95C/2396;
1 : 2 : 9AC/2476;
2 : 4 : 9AE/2478;
3 : 5 : 93A/2362;
4 : 6 : 956/2390;
5 : 7 : 95A/2394;
ROM F/W version……………………. : 0000002A;
Heads map…………………………. : 1,2,4,5,6,7;
Preamp vendor……………………. : 0x0000;
Preamp revision………………….. : 0x0002;

;

HDD with Serial Number: WCAU4A380064;
Model: WD7500AADS-32L5B1;
Date: 21 MAY 2009;
DCM: DHRNHT2MFB;
Product of: Thailand;
PCB Sticker: 2061-701590-J00 AD;
PCB Revision: 2060-701590-000 REV A;
;

Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 2 : A2D/2605;
1 : 3 : A81/2689;
2 : 4 : A7A/2682;
3 : 5 : A7D/2685;
4 : 6 : ABC/2748;
5 : 7 : A6E/2670;

;

;
ROM F/W version: 000500CE;
Heads map: 2,3,4,5,6,7;
Preamp vendor: 0x0000;
Preamp revision: 0x0002;

;

HDD with Serial Number: WCAU50064619;
Model: WD7500AACS-65D6B0;
Date: 25 AUG 2008;
DCM: DANNHT2CAB;
Product of: Thailand;
PCB Sticker: 2061-701537-R00 AD;
PCB Revision: 2060-701537-004 REV A;
;

Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 2 : A05/2565;
1 : 3 : A7F/2687;
2 : 5 : A4E/2638;
3 : 6 : A00/2560;
4 : 7 : A92/2706;
ROM F/W version……………………. : 0005005P;
Heads map…………………………. : 2,3,5,6,7;
Preamp vendor……………………… : 0x0000;
Preamp revision……………………. : 0x0002;

;
