Category: HDD

HDD with Serial Number: WCATR4449785;
Model: WD6402AAEX-00Z3A0;
Date: 30 NOV 2010;
DCM: HANNHTJABB;
Product of: Thailand;
PCB Sticker: 2061-771640-303 ABD2;
PCB Revision: 2060-771640-003 REV P1;
;

Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 0 : C09/3081;
1 : 1 : C4F/3151;
2 : 3 : C4D/3149;

;

;
ROM F/W version: 00010036;
Heads map: 0,1,3;
Preamp vendor: 0x0001;
Preamp revision: 0x0001;

;

HDD with Serial Number: WMAKE1699863;
Model: WD740GD-00FLA2;
Date: 26 DEC 2004;
DCM: HBCAJAB;
Product of: Malaysia;
PCB Sticker: 2061-001213-100 AM;
PCB Revision: 2060-001213-004 REV A;
;

;

HDD with Serial Number: WCASM0002725;
Model: WD7500AACS-00ZJB0;
Date: 14 DEC 2007;
DCM: HARCHT2AAB;
Product of: Thailand;
PCB Sticker: 2061-701474-300 AA;
PCB Revision: 2060-701474-002 REV A;

;

Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 0 : CCF/3279;
1 : 1 : D47/3399;
2 : 2 : D27/3367;
3 : 3 : D53/3411;
4 : 6 : CF3/3315;
5 : 7 : D3F/3391;

;

ROM F/W version……………………. : 005C0032;
Preamp vendor……………………… : 0x0000;
Preamp revision……………………. : 0x0002;

;

Specifications;

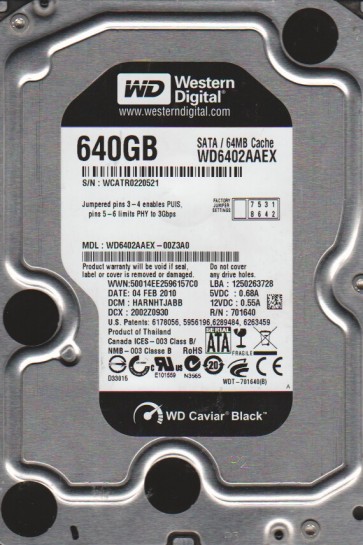

SN: WCATR0220521;
Model: WD6402AAEX-00Z3A0;
Date: 04 FEB 2010;
DCM: HARNHTJABB ;
Product of: Thailand;
PCB Sticker: 2061-701640-X07 01PD6;
PCB Revision: 2060-701640-007 REV A;

;

Micro Jogs;
——————————;
LH  : PH  : Micro Jog (Hex/Dec);
——————————;
0   : 0   : C9C/3228;
1   : 1   : C56/3158;
2   : 2   : C9B/3227;
3   : 3   : C69/3177;
ROM F/W version……………………. : 0001001T;
Preamp vendor……………………… : 0x0001;
Preamp revision……………………. : 0x0001;
;
;
;
;
;
;

;

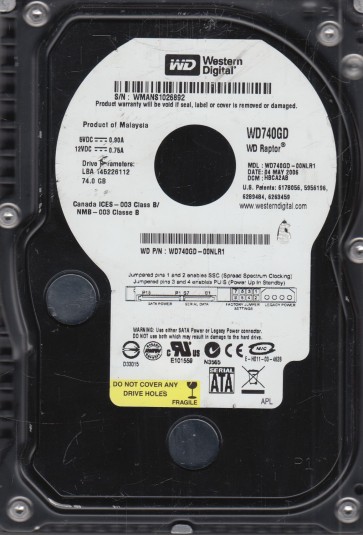

HDD with Serial Number: WMANS1026892;
Model: WD740GD-00NLR1;
Date: 04 MAY 2006;
DCM: HBCA2AB;
Product of: Malaysia;
PCB Sticker: 2061-701384-890 AED4;
PCB Revision: 2060-701384-002 REV A;
;

ROM version……………………….. : 20.0MP;
Head map………………………….. : 2,5;

;

HDD with Serial Number: WCASJ0500935;
Model: WD7500AACS-00ZJB0;
Date: 31 OCT 2007;
DCM: HARCHV2AAB;
Product of: Thailand;
PCB Sticker: 2061-701474-300 AA;
PCB Revision: 2060-701474-002 REV A;

Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 1 : 9AA/2474;
1 : 2 : A44/2628;
2 : 3 : 9A0/2464;
3 : 4 : A3A/2618;
4 : 5 : 9DA/2522;
5 : 6 : A44/2628;
ROM F/W version……………………. : 005C001U;
Heads map…………………………. : 1,2,3,4,5,6;
Preamp vendor……………………… : 0x0000;
Preamp revision……………………. : 0x0002;

HDD with Serial Number: WCASJ0255086;
Model: WD7500AACS-00ZJB0;
Date: 17 SEP 2007;
DCM: HARCHV2AAB;
Product of: Thailand;
PCB Sticker: 2061-701474-300 AC;
PCB Revision: 2060-701474-002 REV A;
;

Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 0 : 970/2416;
1 : 1 : 928/2344;
2 : 4 : 978/2424;
3 : 5 : 8EC/2284;
4 : 6 : 9C6/2502;
5 : 7 : 8EC/2284;

ROM F/W version: 005B000E;
Heads map: 0,1,4,5,6,7;
Preamp vendor: 0x0000;
Preamp revision: 0x0002;

;

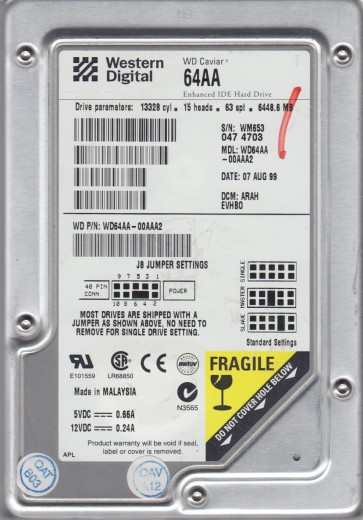

HDD with Serial Number: WM6530474703;
Model: WD64AA-00AAA2;
Date: 07 AUG 1999;
DCM: ARAHEVHBO;
Product of: Malaysia;
PCB Sticker: 788003C;
PCB Revision: 60-600788-002 REV A;
;

;

HDD #1 Specs:;
Serial Number: WMAKE1820045;
Model: WD740GD-50FLA2;
Date: 31 JAN 2005;
DCM: HBCAJAB;
Product of: Malaysia;
PCB Sticker: 2061-001213-100 AN;
PCB Revision: 2060-001213-004 REV A;

;

ROM version……………………….. : 31.03F;
Head map………………………….. : 2,3,4,5;

;

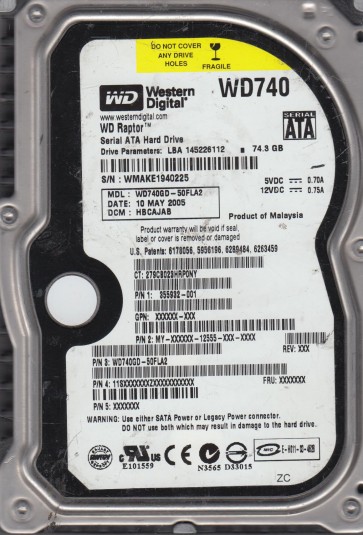

HDD with Serial Number: WMAKE1940225;
Model: WD740GD-50FLA2;
Date: 10 MAY 2005;
DCM: HBCAJAB;
Product of: Malaysia;
PCB Sticker: 2061-001213-100 APD26;
PCB Revision: 2060-001213-004 REV A;

;

;
ROM version……………………….. : 31.05F;

;

Head map………………………….. : 2,3,4,5;

;

HDD with Serial Number: WCASN0076387;
Model: WD7500AACS-00ZJB0;
Date: 14 MAY 2008;
DCM: HARCHV2ABB;
Product of: Thailand;
PCB Sticker: 2061-701474-600 01P;
PCB Revision: 2060-701474-004 REV A;

;

Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 0 : 9D8/2520;
1 : 1 : 9F2/2546;
2 : 2 : 992/2450;
3 : 3 : 9D8/2520;
4 : 4 : 9E2/2530;
5 : 6 : A0E/2574;

;

ROM F/W version: 005C003H;
Heads map: 0,1,2,3,4,6 ;
Preamp vendor: 0x0000;
Preamp revision: 0x0002;

;

;

;

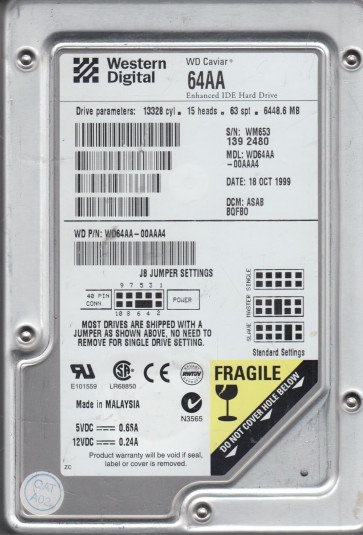

HDD with Serial Number: WM6531392480;
Model: WD64AA-00AAA4;
Date: 18 OCT 1999;
DCM: ASABBQFBO;
Product of: Malaysia;
PCB Revision: 60-600788-002 REV A;
;

;
