Category: HDD

HDD with Serial Number: WCATR4180021;
Model: WD6401AALS-00E3A0;
Date: 19 OCT 2010;
DCM: HARNHTJABB;
Product of: Thailand;
PCB Sticker: 2061-771640-303 ABD2;
PCB Revision: 2060-771640-003 REV P1;
;

Micro Jogs;
——————————;
LH  : PH  : Micro Jog (Hex/Dec);
——————————;
0   : 0   : C52/3154;
1   : 1   : D09/3337;
2   : 2   : C5A/3162;
ROM F/W version……………………. : 00010036;
Heads map…………………………. : 0,1,2;
Preamp vendor……………………. : 0x0001;
Preamp revision………………….. : 0x0001;

;

HDD with Serial Number: WCATR4290906;
Model: WD6401AALS-00E3A0;
Date: 23 OCT 2010;
DCM: HBNNHTJAAB;
Product of: Thailand;
PCB Sticker: 2061-771640-303 ABD2;
PCB Revision: 2060-771640-003 REV P1;
;

Micro Jogs;
——————————;
LH  : PH  : Micro Jog (Hex/Dec);
——————————;
0   : 0   : C70/3184;
1   : 1   : C54/3156;
2   : 3   : C58/3160;
ROM F/W version……………………. : 0001002G;
Heads map…………………………. : 0,1,3;
Preamp vendor……………………. : 0x0001;
Preamp revision………………….. : 0x0001;

;

HDD with Serial Number: WCATR4128261;
Model: WD6401AALS-00E3A0;
Date: 21 OCT 2010;
DCM: HBNNHTJCBB;
Product of: Thailand;
PCB Sticker: 2061-771640-303 ABD2;
PCB Revision: 2060-771640-003 REV P1;
;

Micro Jogs;
——————————;
LH  : PH  : Micro Jog (Hex/Dec);
——————————;
0   : 0   : BE5/3045;
1   : 2   : D55/3413;
2   : 3   : CC2/3266;
ROM F/W version……………………. : 00020006;
Heads map…………………………. : 0,2,3;
Preamp vendor……………………. : 0x0001;
Preamp revision………………….. : 0x0001;

;

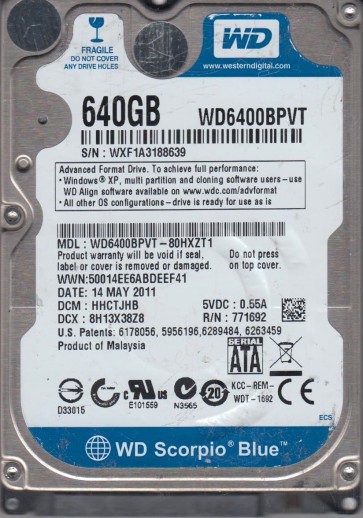

HDD with Serial Number: WXF1A3188639;
Model: WD6400BPVT-80HXZT1;
Date: 14 MAY 2011;
DCM: HHCTJHB;
Product of: Malaysia;
PCB Sticker: 771692-505 03P;
PCB Revision: 2060-771692-005 REV A;

;

Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 0 : AFE/2814;
1 : 1 : B44/2884;
2 : 2 : ADD/2781;
3 : 3 : B83/2947/;
ROM F/W version……………………. : 0006002E;
Heads map…………………………. : 0,1,2,3;
Preamp vendor……………………. : 0x0001;
Preamp revision………………….. : 0x0003;

;

HDD #1 Specs:;
SN: WCATR4007059;
Model: WD6401AALS-00E3A0;
Date: 21 OCT 2010;
DCM: HBRNHTJABB ;
Product of: Thailand;
PCB Sticker: 771640-202 06P;
PCB Revision: 2060-771640-002 REV P2;

;

Micro Jogs;
——————————;
LH  : PH  : Micro Jog (Hex/Dec);
——————————;
0   : 1   : C5D/3165;
1   : 2   : CE7/3303;
2   : 3   : C5F/3167;
;
;

;

HDD with Serial Number: WX41A1152414;
Model: WD6400BPVT-80HXZT1;
Date: 25 JAN 2011;
DCM: HHCVJBB;
Product of: Malaysia;
PCB Sticker: 771692-205 AA;
PCB Revision: 2060-771692-005 REV A;
;

Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 0 : B2F/2863;
1 : 1 : B84/2948;
2 : 2 : B03/2819;
3 : 3 : B7A/2938;
;
ROM F/W version: 0006002E;
Heads map: 0,1,2,3;
Preamp vendor: 0x0001;
Preamp revision: 0x0003;

;

HDD with Serial Number: WMATV7359199;
Model: WD6401AALS-00E8B0;
Date: 27 APR 2010;
DCM: HANNNT2CA;
Product of: Malaysia;
PCB Sticker: 2061-701567-400 AF;
PCB Revision: 2060-701567-000 REV A;

;

Micro Jogs;
——————————;
LH  : PH  : Micro Jog (Hex/Dec);
——————————;
0   : 2   : ACC/2764;
1   : 3   : A9A/2714;
2   : 4   : AC3/2755;
3   : 5   : A93/2707;
4   : 6   : ADC/2780;
5   : 7   : A83/2691;

;

ROM F/W version……………………. : 0007004B;
Preamp Vendor……………………… : 0000;
Preamp Rev………………………… : 0003;

;

HDD with Serial Number: WXD1A51R0820;
Model: WD6400BPVT-80HXZT1;
Date: 13 JUN 2011;
DCM: HHOTJBN;
Product of: Malaysia;
PCB Sticker: 771692-505 03P;
PCB Revision: 2060-771692-005 REV A;
;

Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 0 : ACA/2762;
1 : 1 : B7D/2941;
2 : 2 : AAB/2731;
3 : 3 : B6F/2927;
ROM F/W version……………………. : 0010000U;
Heads map…………………………. : 0,1,2,3;
Preamp vendor……………………. : 0x0001;
Preamp revision………………….. : 0x0003;

;

HDD with Serial Number: WMATV7201586;
Model: WD6401AALS-00E8B0;
Date: 19 APR 2010;
DCM: HBNNNT2CA;
Product of: Malaysia;
PCB Sticker: 2061-701567-400 AF;
PCB Revision: 2060-701567-000 REV A;
;

Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 2 : A10/2576;
1 : 3 : A03/2563;
2 : 4 : A08/2568;
3 : 5 : 9FD/2557;
4 : 6 : A0F/2575;
5 : 7 : A1A/2586;
ROM F/W version……………………. : 0007004B;
Heads map…………………………. : 2,3,4,5,6,7;
Preamp vendor……………………. : 0x0000;
Preamp revision………………….. : 0x0003;

HDD with Serial Number: WMATV7770746;
Model: WD6401AALS-00E8B0;
Date: 13 JUN 2010;
DCM: HBNNNT2CA;
Product of: Malaysia;
PCB Sticker: 2061-701567-400 AF;
PCB Revision: 2060-701567-000 REV A;
;

Micro Jogs;
——————————;
LH  : PH  : Micro Jog (Hex/Dec);
——————————;
0   : 2   : AA5/2725;
1   : 3   : A19/2585;
2   : 4   : A7A/2682;
3   : 5   : A1F/2591;
4   : 6   : AB9/2745;
5   : 7   : A21/2593;
ROM F/W version……………………. : 0005009U;
Heads map…………………………. : 2,3,4,5,6,7;
Preamp vendor……………………. : 0x0000;
Preamp revision………………….. : 0x0003;

;

HDD with Serial Number: WXH1A71W5530;
Model: WD6400BPVT-80HXZT3;
Date: 17 AUG 2011;
DCM: HBOTJBB;
Product of: Malaysia;
PCB Sticker: 771820-000 03P;
PCB Revision: 2060-771820-000 REV P1;
;

Micro Jogs;
——————————;
LH  : PH  : Micro Jog (Hex/Dec);
——————————;
0   : 0   : AA2/2722;
1   : 1   : B07/2823;
2   : 2   : AD6/2774;
3   : 3   : B3B/2875;
ROM F/W version……………………. : 00650009;
Heads map…………………………. : 0,1,2,3;
Preamp vendor……………………. : 0x0001;
Preamp revision………………….. : 0x0003;

;
