Category: HDD

HDD with Serial Number: WX81A81S8175;
Model: WD6400BPVT-22HXZT3;
Date: 06 SEP 2011;
DCM: HHCT2HB;
Product of: Malaysia;
PCB Sticker: 771820-000 03P;
PCB Revision: 2060-771820-000 REV P1;
;

Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 0 : B0D/2829;
1 : 1 : B15/2837;
2 : 2 : B03/2819;
3 : 3 : B24/2852;
ROM F/W version……………………. : 00650009;
Heads map…………………………. : 0,1,2,3;
Preamp vendor……………………… : 0x0000;
Preamp revision……………………. : 0x0009;

;

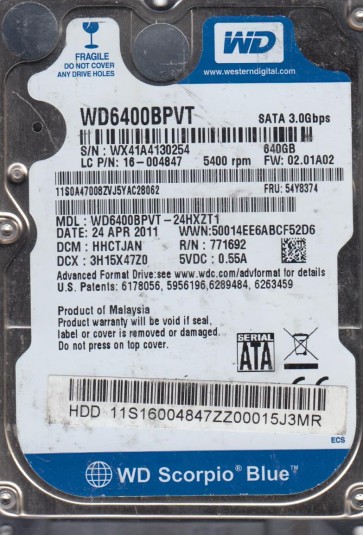

HDD with Serial Number: WX41A4130254;
Model: WD6400BPVT-24HXZT1;
Date: 24 APR 2011;
DCM: HHCTJAN;
Product of: Malaysia;
PCB Sticker: 771692-505 03P;
PCB Revision: 2060-771692-005 REV A;
;

ROM F/W 0006002E;
Heads map 0,1,2,3;
Preamp Vendor: x001;
Preamp revision: x003;
;
Micro Jogs;
——————————;
LH  : PH  : Micro Jog (Hex/Dec);
——————————;
0   : 0   : AD1/2769;
1   : 1   : BFE/3070;
2   : 2   : A84/2692;
3   : 3   : BD3/3027

;

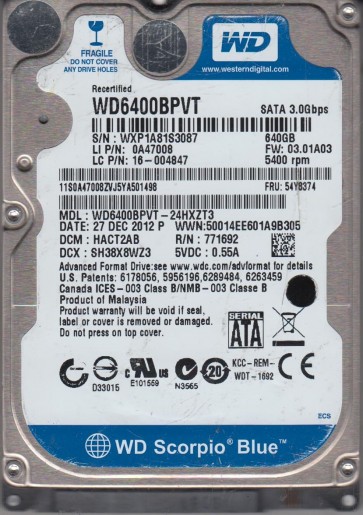

HDD with Serial Number: WXP1A81S3087;
Model: WD6400BPVT-24HXZT3;
Date: 27 DEC 2012;
DCM: HACT2AB;
Product of: Malaysia;
PCB Sticker: 771820-000 03P;
PCB Revision: 2060-771820-000 REV P1;
;

Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 0 : BE3/3043;
1 : 1 : B4B/2891;
2 : 2 : BCC/3020;
3 : 3 : B5E/2910;
ROM F/W version……………………. : 0065001B;
Heads map…………………………. : 0,1,2,3;
Preamp vendor……………………. : 0x0000;
Preamp revision………………….. : 0x0009;

;

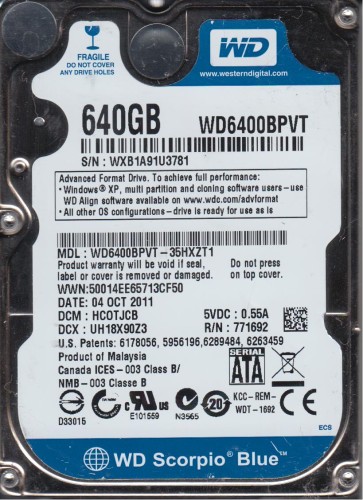

HDD with Serial Number: WXB1A91U3781;
Model: WD6400BPVT-35HXZT1;
Date: 04 OCT 2011;
DCM: HCOTJCB;
Product of: Malaysia;
PCB Sticker: 771692-112 AA;
PCB Revision: 2060-771692-002 REV A;

;

Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 0 : B76/2934;
1 : 1 : AB2/2738;
2 : 2 : B92/2962;
3 : 3 : AF0/2800;
;
ROM F/W version……………………. : 00100019;
Preamp vendor……………………… : 0x0001;
Preamp revision……………………. : 0x0003;

;

HDD with Serial Number: WXG1A31S6004;
Model: WD6400BPVT-55HXZT2;
Date: 11 MAY 2011;
DCM: HBCTJAN;
Product of: Malaysia;
PCB Sticker: 771692-505 03PD20;
PCB Revision: 2060-771692-005 REV A;
;

Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 0 : B96/2966;
1 : 1 : AA2/2722;
2 : 2 : BD9/3033;
3 : 3 : AF0/2800;
ROM F/W version……………………. : 0006002E;
Heads map…………………………. : 0,1,2,3;
Preamp vendor……………………… : 0x0001;
Preamp revision……………………. : 0x0003;

;

HDD with Serial Number: WX61A41L0701;
Model: WD6400BPVT-55HXZT2;
Date: 04 MAY 2011;
DCM: HBCTJBN;
Product of: Malaysia;
PCB Sticker: 771692-505 03PD20;
PCB Revision: 2060-771692-005 REV A;
;

ROM F/W 0006002E;
Heads map 0,1,2,3;
Preamp vendor:x0001;
preamp revision:x0003;
;
Micro Jogs;
——————————;
LH  : PH  : Micro Jog (Hex/Dec);
——————————;
0   : 0   : B69/2921;
1   : 1   : B1E/2846;
2   : 2   : B8E/2958;
3   : 3   : B23/2851

;

HDD #1 Specs:;
SN: WXH1A3104822;
Model: WD6400BPVT-55HXZT2;
Date: 10 MAY 2011;
DCM: HBCTJHB ;
Product of: Malaysia;
PCB Sticker: 771692-505 03PD20;
PCB Revision: 2060-771692-005 REV A;

;

;

HDD with Serial Number: WX21AC0S0047;
Model: WD6400BPVT-22HXZT1;
Date: 18 DEC 2010;
DCM: HHCVJBBB;
Product of: Thailand;
PCB Sticker: 771692-105 AC;
PCB Revision: 2060-771692-005 REV A;
;

Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 0 : B99/2969;
1 : 1 : AB9/2745;
2 : 2 : B8C/2956;
3 : 3 : AB9/2745;
;
ROM F/W version: 006002E;
Heads map: 0,1,2,3;
Preamp vendor: 0x0001;
Preamp revision: 0x0003;

;

HDD with Serial Number: WXF1A3143621;
Model: WD6400BPVT-55HXZT2;
Date: 05 MAY 2011;
DCM: HBCTJHN;
Product of: Malaysia;
PCB Sticker: 771692-505 03PD20;
PCB Revision: 2060-771692-005 REV A;
;

Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 0 : A83/2691;
1 : 1 : ADF/2783;
2 : 2 : A8C/2700;
3 : 3 : B1B/2843;
ROM F/W version……………………. : 0006002E;
Heads map…………………………. : 0,1,2,3;
Preamp vendor……………………. : 0x0001;
Preamp revision………………….. : 0x0003;

;

HDD with Serial Number: WXK1A5130410;
Model: WD6400BPVT-22HXZT1;
Date: 15 JUN 2011;
DCM: HHOTJBN;
Product of: Malaysia;
PCB Sticker: 771692-505 03P;
PCB Revision: 2060-771692-005 REV A;
;

Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 0 : BAC/2988;
1 : 1 : B98/2968;
2 : 2 : BDA/3034;
3 : 3 : B98/2968;

;

;
ROM F/W version: 0010000U;
Heads map: 0,1,2,3;
Preamp vendor: 0x0001;
Preamp revision: 0x0003;

;
