Category: HDD

HDD with Serial Number: WX81A41C7600;
Model: WD6400BPVT-22HXZT1;
Date: 26 MAY 2011;
DCM: HBCTJVB;
Product of: Malaysia;
PCB Sticker: 771692-505 03P;
PCB Revision: 2060-771692-005 REV A;
;

Micro Jogs;
——————————;
LH  : PH  : Micro Jog (Hex/Dec);
——————————;
0   : 0   : B5B/2907;
1   : 1   : AF5/2805;
2   : 2   : AD7/2775;
3   : 3   : B3C/2876;
ROM F/W version……………………. : 0010000Q;
Heads map…………………………. : 0,1,2,3;
Preamp vendor……………………… : 0x0001;
Preamp revision……………………. : 0x0003;
;
;
;
;

;

HDD with Serial Number: WX81C90A5098;
Model: WD6400BEVT-75A0RT0;
Date: 07 NOV 2010;
DCM: HACVJBB;
Product of: Malaysia;
PCB Sticker: 2061-771672-F04 AC;
PCB Revision: 2060-771672-004 REV A;
;

Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 0 : C80/3200;
1 : 1 : BA6/2982;
2 : 2 : C7B/3195;
3 : 3 : BAA/2986;
ROM F/W version……………………. : 0014003R;
Heads map…………………………. : 0,1,2,3;
Preamp vendor……………………… : 0x0001;
Preamp revision……………………. : 0x0003;

;

HDD with Serial Number: WXJ0A99V0309;
Model: WD6400BMVV-11A1CS0;
Date: 27 OCT 2009;
DCM: HBCVJABB;
Product of: Thailand;
PCB Sticker: 2061-701675-001 ACD1;
PCB Revision: 2060-701675-001 REV P1;

;

Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 0 : B52/2898;
1 : 1 : B0B/2827;
2 : 2 : B54/2900;
3 : 3 : B02/2818;

;

ROM F/W Version: 001300CA;
Heads Map: 0,1,2,3;
Preamp Vendor: 0x0001;
Preamp Revision: 0x0003;

;

;

;

HDD with Serial Number: WXD1A81S4915;
Model: WD6400BPVT-22HXZT1;
Date: 02 SEP 2011;
DCM: HCOTJBN;
Product of: Malaysia;
PCB Sticker: 771692-505 03PD16;
PCB Revision: 2060-771692-005 REV A;
;

Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 0 : AFA/2810;
1 : 1 : B12/2834;
2 : 2 : AEE/2798;
3 : 3 : AD0/2768;
ROM F/W version……………………. : 00100019;
Heads map…………………………. : 0,1,2,3;
Preamp vendor…………………….. : 0x0001;
Preamp revision…………………… : 0x0003;

;

HDD with Serial Number: WX81A90T4816;
Model: WD6400BEVT-75A0RT0;
Date: 01 OCT 2010;
DCM: HACVJVB;
Product of: Malaysia;
PCB Sticker: 2061-771672-F04 AA;
PCB Revision: 2060-771672-004 REV A;
;

Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 0 : B38/2872;
1 : 1 : B31/2865;
2 : 2 : B5F/2911;
3 : 3 : B0A/2826;

;

ROM F/W version:0014003R;
Preamp vendor:0x0001;
Preamp revision:0x0003;

;

Specifications;
SN: WXC0AA9Y0336;
Model: WD6400BMVV-11A1CS0;
Date: 10 NOV 2009;
DCM: HBCVJBBB
R/N 771675;
Product of: Thailand;
PCB Sticker: 2061-701675-002 03P;
PCB Revision: 2060-701675-002 REV P1;

;

;

HDD with Serial Number: WXH1C3014916;
Model: WD6400BEVT-75A0RT0;
Date: 10 MAY 2010;
DCM: HBCVJBB;
Product of: Malaysia;
PCB Sticker: 2061-771672-F04 AA;
PCB Revision: 2060-771672-004 REV A;
Micro Jogs;
——————————;
LH  : PH  : Micro Jog (Hex/Dec);
——————————;
0   : 0   : B07/2823;
1   : 1   : B19/2841;
2   : 2   : B84/2948;
3   : 3   : B32/2866;
ROM F/W version……………………. : 00140027;
Heads map…………………………. : 0,1,2,3;
Preamp vendor……………………. : 0x0001;
Preamp revision………………….. : 0x0003;

HDD with Serial Number: WXP1A30H4714;
Model: WD6400BEVT-75A0RT0;
Date: 10 MAY 2010;
DCM: HBCVJBB;
Product of: Malaysia;
PCB Sticker: 2061-771672-F04;
PCB Revision: 2060-771672-004 REV A;
;

——————————;
LH  : PH  : Micro Jog (Hex/Dec);
——————————;
0   : 0   : BAA/2986;
1   : 1   : AE8/2792;
2   : 2   : B5C/2908;
3   : 3   : B13/2835;
;
ROM F/W Version: 00140027;
Heads map: 0,1,2,3;
Preamp vendor: 0x0001;
Preamp revision: 0x0003

;

Specifications;
SN: WXC0AA9W4865;
Model: WD6400BMVV-11A1CS0;
Date: 11 NOV 2009;
DCM: HBCVJHBB
R/N 771675;
Product of: Thailand;
PCB Sticker: 2061-701675-002 03P;
PCB Revision: 2060-701675-002 REV P1;

;

;

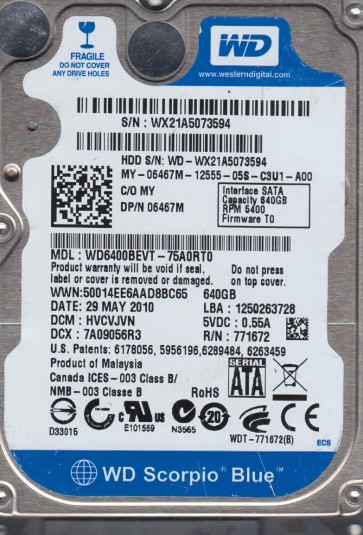

HDD with Serial Number: WX21A5073594;
Model: WD6400BEVT-75A0RT0;
Date: 29 MAY 2010;
DCM: HVCVJVN;
Product of: Malaysia;
PCB Sticker: 2061-771672-F04 AA;
PCB Revision: 2060-771672-004 REV A;
;

;

HDD with Serial Number: WX40AA9F2329;
Model: WD6400BMVV-11A1CS0;
Date: 28 OCT 2009;
DCM: HHCVJHBB;
Product of: Thailand;
PCB Sticker: 2061-701675-001 ACD2;
PCB Revision: 2060-701675-001 REV P1;

;

Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 0 : BA7/2983;
1 : 1 : A87/2695;
2 : 2 : BB5/2997;
3 : 3 : AD8/2776;
;
ROM F/W version……………………. : 001300CA;
Preamp vendor……………………… : 0x0001;
Preamp revision……………………. : 0x0003;

;

;
