Category: HDD

HDD with Serial Number: WXH0AB9U3193;
Model: WD6400BEVT-00A0RT0;
Date: 21 JAN 2012;
DCM: HBCVJHN;
Product of: Malaysia;
PCB Sticker: 2061-771672-001 AE;
PCB Revision: 2060-771672-001 REV P1;

;

Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 0 : B77/2935;
1 : 1 : BBB/3003;
2 : 2 : C15/3093;
3 : 3 : B7B/2939;
ROM F/W version……………………. : 0014001B;
Heads map…………………………. : 0,1,2,3;
Preamp vendor…………………….. : 0x0001;
Preamp revision………………….. : 0x0003;

;

HDD with Serial Number: WXE1AA081994;
Model: WD6400BEVT-22A0RT0;
Date: 09 NOV 2010;
DCM: HVCVJVB;
Product of: Malaysia;
PCB Sticker: 2061-771672-F04 AC;
PCB Revision: 2060-771672-004 REV A;
;

Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 0 : B9C/2972;
1 : 1 : B1F/2847;
2 : 2 : B43/2883;
3 : 3 : B14/2836;

;

ROM F/W: 0014003R;
Heads map: 0,1,2,3;
Preamp vendor: 0x0001;
Preamp revision: 0x0003;

;

HDD with Serial Number: WCAUF1472031;
Model: WD6400AAVS-00G9B1;
Date: 11 OCT 2008;
DCM: HBRNHT2MAN;
Product of: Thailand;
PCB Sticker: 2061-701590-A00 05P;
PCB Revision: 2060-701590-000 REV A;
;

Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 0 : A74/2676;
1 : 1 : 9D8/2520;
2 : 2 : A62/2658;
3 : 3 : A14/2580;
ROM F/W version……………………. : 000500AQ;
Heads map…………………………. : 0,1,2,3;
Preamp vendor……………………… : 0x0000;
Preamp revision……………………. : 0x0002;

;

HDD with Serial Number: WX60AB9K5504;
Model: WD6400BEVT-00A0RT0;
Date: 08 OCT 2010;
DCM: HHCVJBB;
Product of: Thailand;
PCB Sticker: 2061-771672-001 AC;
PCB Revision: 2060-771672-001 REV P1;
;

Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 0 : BAB/2987;
1 : 1 : B12/2834;
2 : 2 : BF0/3056;
3 : 3 : B22/2850;
ROM F/W version……………………. : 001400DB;
Heads map…………………………. : 0,1,2,3;
Preamp vendor……………………. : 0x0001;
Preamp revision………………….. : 0x0003;

;

HDD with Serial Number: WX51A80M4076;
Model: WD6400BEVT-24A0RT0;
Date: 25 AUG 2010;
DCM: HBCVJBB;
Product of: Malaysia;
PCB Sticker: 2061-771672-F04 AA;
PCB Revision: 2060-771672-004 REV A;
;

Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 0 : C32/3122;
1 : 1 : B0F/2831;
2 : 2 : C1F/3103;
3 : 3 : B18/2840;
ROM F/W version……………………. : 00140025;
Heads map…………………………. : 0,1,2,3;
Preamp vendor……………………. : 0x0001;
Preamp revision………………….. : 0x0003;

;

HDD with Serial Number: WCAUF2867133;
Model: WD6400AAVS-00G9B1;
Date: 15 MAR 2009;
DCM: HGNNHT2MBB;
Product of: Thailand;
PCB Sticker: 2061-701590-A00 AD;
PCB Revision: 2060-701590-000 REV A;
;

Micro Jogs;
——————————;
LH  : PH  : Micro Jog (Hex/Dec);
——————————;
0   : 0   : A50/2640;
1   : 1   : A84/2692;
2   : 2   : A5E/2654;
3   : 3   : A90/2704;
ROM F/W version……………………. : 000500C2;
Heads map…………………………. : 0,1,2,3;
Preamp vendor……………………. : 0x0000;
Preamp revision………………….. : 0x0002;

;

HDD #1 Specs:;
SN: WXK1E50UH501;
Model: WD6400BEVT-00A0RT0;
Date: 05 NOV 2012;
DCM: HHCVJHB ;
Product of: Malaysia;
PCB Sticker: 2061-771672-F04 AC;
PCB Revision: 2060-771672-004 REV A;

;

Micro Jogs;
——————————;
LH  : PH  : Micro Jog (Hex/Dec);
——————————;
0   : 0   : BD4/3028;
1   : 1   : BA1/2977;
2   : 2   : C16/3094;
3   : 3   : BA1/2977;

;

ROM F/W version……………………. : 0014003R;
Preamp vendor……………………… : 0x0001;
Preamp revision……………………. : 0x0003;

HDD with Serial Number: WX90AC9K5667;
Model: WD6400BEVT-00A0RT0;
Date: 28 DEC 2009;
DCM: HHCVJHB;
Product of: Malaysia;
PCB Sticker: 2061-771672-001 AE;
PCB Revision: 2060-771672-001 REV P1;
;

ROM F/W 0013000B;
Heads map:0,1,2,3;
Preamp Vendor: x001;
Preamp revision: x003;
;
Micro Jogs;
——————————;
LH  : PH  : Micro Jog (Hex/Dec);
——————————;
0   : 0   : C1C/3100;
1   : 1   : B5A/2906;
2   : 2   : BFB/3067;
3   : 3   : B8E/2958

;

HDD with Serial Number: WXA1C2073787;
Model: WD6400BEVT-60A0RT0;
Date: 29 MAY 2010;
DCM: EBCVJAN;
Product of: Malaysia;
PCB Sticker: 2061-771672-F04 AA;
PCB Revision: 2060-771672-004 REV A;
;

Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 0 : B9C/2972;
1 : 1 : B0A/2826;
2 : 2 : BAC/2988;
3 : 3 : AD5/2773;

;

;
ROM F/W version: 0014001W;
Heads map: 0,1,2,3;
Preamp vendor: 0x0001;
Preamp revision: 0x0003;

;

HDD with Serial Number: WCASY6648982;
Model: WD6400AAKS-75A7B2;
Date: 04 AUG 2009;
DCM: HHRNNT2MBB;
Product of: Thailand;
PCB Sticker: 2061-701590-L00 AD;
PCB Revision: 2060-701590-000 REV A;
;

Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 0 : A10/2576;
1 : 1 : 9C6/2502;
2 : 2 : 9AA/2474;
3 : 3 : 9A0/2464;
ROM F/W version……………………. : 000500CT;
Heads map…………………………. : 0,1,2,3;
Preamp vendor……………………… : 0x0000;
Preamp revision……………………. : 0x0002;

;

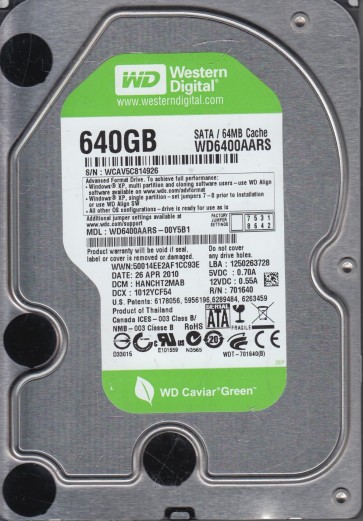

HDD with Serial Number: WCAV5C814926;
Model: WD6400AARS-00Y5B1;
Date: 26 APR 2010;
DCM: HANCHT2MAB;
Product of: Thailand;
PCB Sticker: 2061-701640-807 02PD9;
PCB Revision: 2060-701640-007 REV A;
;

Micro Jogs;
——————————;
LH  : PH  : Micro Jog (Hex/Dec);
——————————;
0   : 0   : C84/3204;
1   : 2   : C77/3191;
2   : 3   : C2A/3114;
ROM F/W version……………………. : 008400CR;
Heads map…………………………. : 0,2,3;
Preamp vendor……………………. : 0x0000;
Preamp revision………………….. : 0x0002;

;
