Category: HDD

WD6400AAVS-00G9B0, DCM DBNNHTJCGB, Western Digital 640GB SATA 3.5 Hard Drive

HDD with Serial Number: WCAUF0616966;
Model: WD6400AAVS-00G9B0;
Date: 03 AUG 2008;
DCM: DBNNHTJCGB;
Product of: Thailand;
PCB Sticker: 2061-701537-Q00 AD;
PCB Revision: 2060-701537-004 REV A;

;

ROM F/W version00050063 Heads map 0,1,2,3 Preamp vendor: x0001 Preamp revision: x0001 Micro Jogs —————————— LH : PH : Micro Jog (Hex/Dec) —————————— 0 : 0 : A82/2690 1 : 1 : AB2/2738 2 : 2 : A70/2672 3 : 3 : AA4/2724;

;

 ;

;

WD6400AAVS-00G9B0, DCM EARNNTJMB, Western Digital 640GB SATA 3.5 Hard Drive

HDD with Serial Number: WCAUF0402760;
Model: WD6400AAVS-00G9B0;
Date: 13 OCT 2009;
DCM: EARNNTJMB;
Product of: Thailand;
PCB Sticker: 2061-701537-Q00 AD;
PCB Revision: 2060-701537-004 REV A;
;

Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 0 : 9FC/2556;
1 : 1 : A06/2566;
2 : 2 : A0C/2572;
3 : 3 : A0E/2574;
ROM F/W version……………………. : 00050063;
Heads map…………………………. : 0,1,2,3;
Preamp vendor……………………. : 0x0001;
Preamp revision………………….. : 0x0001;

;

WD6400AAVS-00G9B0, DCM HARNNHT2MBB, Western Digital 640GB SATA 3.5 Hard Drive

HDD with Serial Number: WCAUF0690431;
Model: WD6400AAVS-00G9B0;
Date: 27 AUG 2008;
DCM: HARNNHT2MBB;
Product of: Thailand;
PCB Sticker: 2061-701537-Q00 AD;
PCB Revision: 2060-701537-004 REV A;
;

Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 0 : A30/2608;
1 : 1 : A68/2664;
2 : 2 : A16/2582;
3 : 3 : A1E/2590;
ROM F/W version……………………. : 00050063;
Heads map…………………………. : 0,1,2,3;
Preamp vendor……………………… : 0x0000;
Preamp revision……………………. : 0x0002;

;

WD6400AAKS-75A7B2, DCM HHNNHT2MAB, Western Digital 640GB SATA 3.5 Hard Drive

HDD with Serial Number: WCASYC080571;
Model: WD6400AAKS-75A7B2;
Date: 08 MAR 2010;
DCM: HHNNHT2MAB;
Product of: Thailand;
PCB Sticker: 2061-701590-L02 01P;
PCB Revision: 2060-701590-001 REV B;
;

Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 0 : A62/2658;
1 : 1 : 9C8/2504;
2 : 2 : A08/2568;
3 : 3 : 9D4/2516;
ROM F/W version……………………. : 000500DG;
Heads map…………………………. : 0,1,2,3;
Preamp vendor……………………. : 0x0000;
Preamp revision………………….. : 0x0002;

;

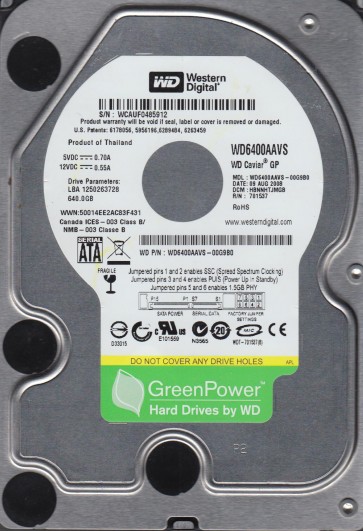

WD6400AAVS-00G9B0, DCM HBNNHTJMGB, Western Digital 640GB SATA 3.5 Hard Drive

HDD #1 Specs:;
Serial Number: WCAUF0485912;
Model: WD6400AAVS-00G9B0;
Date: 09 AUG 2008;
DCM: HBNNHTJMGB;
Product of: Thailand;
PCB Sticker: 2061-701537-Q00 AD;
PCB Revision: 2060-701537-004 REV A;

;

Micro Jogs;
——————————;
LH  : PH  : Micro Jog (Hex/Dec);
——————————;
0   : 0   : A94/2708;
1   : 1   : AC0/2752;
2   : 2   : A32/2610;
3   : 3   : AE8/2792;
;
;

;

WD6400AAKS-75A7B2, DCM HHNNHT2MBB, Western Digital 640GB SATA 3.5 Hard Drive

HDD with Serial Number: WCASYC079132;
Model: WD6400AAKS-75A7B2;
Date: 08 MAR 2010;
DCM: HHNNHT2MBB;
Product of: Thailand;
PCB Sticker: 2061-701590-L02 01P;
PCB Revision: 2060-701590-001 REV A;
;

Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 0 : 9EE/2542;
1 : 1 : 894/2196;
2 : 2 : 9DA/2522;
3 : 3 : 9E6/2534;
ROM F/W version……………………. : 000500DG;
Heads map…………………………. : 0,1,2,3;
Preamp vendor……………………. : 0x0000;
Preamp revision………………….. : 0x0002;

;

WD6400AAKS-75A7B2, DCM HHNNHT2MHB, Western Digital 640GB SATA 3.5 Hard Drive

HDD with Serial Number: WCASYC167555;
Model: WD6400AAKS-75A7B2;
Date: 14 MAR 2010;
DCM: HHNNHT2MHB;
Product of: Thailand;
PCB Sticker: 2061-701590-L02 01P;
PCB Revision: 2060-701590-001 REV B;
;

Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 0 : 9F2/2546;
1 : 1 : 9C8/2504;
2 : 2 : A06/2566;
3 : 3 : 9E4/2532;

;

;
ROM F/W version: 000500DG;
Heads map: 0,1,2,3;
Preamp vendor: 0x0000;
Preamp revision: 0x0002;

;

WD6400AAVS-00G9B1, DCM DARNHT2MHN, Western Digital 640GB SATA 3.5 Hard Drive

HDD with Serial Number: WCAUF2086338;
Model: WD6400AAVS-00G9B1;
Date: 04 NOV 2008;
DCM: DARNHT2MHN;
Product of: Thailand;
PCB Sticker: 2061-701590-A00 05P;
PCB Revision: 2060-701590-000 REV A;
;

Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 0 : A7A/2682;
1 : 1 : A4E/2638;
2 : 2 : A6A/2666;
3 : 3 : A86/2694;

;

ROM F/W version:000500AQ;
Preamp vendor:0x0000;
Preamp revision:0x0002;

;

WD6400AAKS-75A7B2, DCM HHNNHTJMH, Western Digital 640GB SATA 3.5 Hard Drive

HDD with Serial Number: WMASY7521520;
Model: WD6400AAKS-75A7B2;
Date: 24 MAR 2009;
DCM: HHNNHTJMH;
Product of: Malaysia;
PCB Sticker: 2061-701590-L00 AD;
PCB Revision: 2060-701590-000 REV A;
;

Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 0 : A88/2696;
1 : 1 : AF4/2804;
2 : 2 : AF8/2808;
3 : 3 : B1E/2846;

;

ROM F/W version:000500BU;
Preamp vendor:0x0001;
Preamp revision:0x0001;

;
