Category: HDD

HDD with Serial Number: WCASY0550142;
Model: WD6400AAKS-22A7B0;
Date: 30 MAY 2008;
DCM: HARNNT2CAB;
Product of: Thailand;
PCB Sticker: 2061-701537-E00 07P;
PCB Revision: 2060-701537-003 REV A;
;

Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 0 : A6B/2667;
1 : 1 : A0D/2573;
2 : 2 : A5A/2650;
3 : 3 : A67/2663;
ROM F/W version……………………. : 00050060;
Heads map…………………………. : 0,1,2,3;
Preamp vendor…………………….. : 0x0000;
Preamp revision…………………… : 0x0002;

;

HDD #1 Specs:;
SN: WCATR0564675;
Model: WD6400AAKS-00E4A0;
Date: 18 MAR 2010;
DCM: HANCNTJAAB ;
Product of: Thailand;
PCB Sticker: 2061-701640-D02 01PD1;
PCB Revision: 2060-701640-002 REV A;

;

Micro Jogs;
——————————;
LH  : PH  : Micro Jog (Hex/Dec);
——————————;
0   : 0   : C3F/3135;
1   : 1   : CB4/3252;
2   : 2   : C74/3188;
3   : 3   : C94/3220;
;

;

ROM F/W version……………………. : 0001001P;
Preamp vendor……………………… : 0x0001;
Preamp revision……………………. : 0x0001;

;

;
;

;

HDD with Serial Number: WCASYE001738;
Model: WD6400AAKS-08A7B2;
Date: 08 JUL 2010;
DCM: HARNNV2MAB;
Product of: Thailand;
PCB Sticker: 2061-701590-L01 06P;
PCB Revision: 2060-701590-001 REV A;
;

Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 0 : 8A6/2214;
1 : 1 : 8CC/2252;
2 : 2 : 89E/2206;
3 : 3 : 8DC/2268;

;

ROM F/W version:000500F0;
Preamp vendor:0x0000;
Preamp revision:0x0002;

;

HDD with Serial Number: WMASY2515977;
Model: WD6400AAKS-22A7B0;
Date: 28 JUL 2008;
DCM: HARNNV2CB;
Product of: Malaysia;
PCB Sticker: 2061-701537-E00 07PD3;
PCB Revision: 2060-701537-003 REV A;
;

Micro Jogs;
——————————;
LH  : PH  : Micro Jog (Hex/Dec);
——————————;
0   : 0   : 8E7/2279;
1   : 1   : 8C8/2248;
2   : 2   : 8DC/2268;
3   : 3   : 8F9/2297;
ROM F/W version……………………. : 00050084;
Heads map…………………………. : 0,1,2,3;
Preamp vendor……………………. : 0x0000;
Preamp revision………………….. : 0x0002;

;

HDD with Serial Number: WCATR4476411;
Model: WD6400AAKS-00E4A0;
Date: 11 SEP 2013;
DCM: HARNNTJCB;
Product of: Thailand;
PCB Sticker: 771640-202 06P;
PCB Revision: 2060-701640-002 REV A;
;

Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 0 : D06/3334;
1 : 1 : C83/3203;
2 : 2 : CF0/3312;

;

ROM F/W version: 00010076;
Heads map: 0,1,2;
Preamp vendor: 0x0001;
Preamp revision: 0x0001;

;

HDD with Serial Number: WCASYD961064;
Model: WD6400AAKS-08A7B2;
Date: 11 JUL 2010;
DCM: HHRNNT2MGB;
Product of: Thailand;
PCB Sticker: 2061-701590-L01 06P;
PCB Revision: 2060-701590-001 REV A;

;

Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 0 : 9C8/2504;
1 : 1 : 9E6/2534;
2 : 2 : 9FA/2554;
3 : 3 : A0E/2574;

;

ROM F/W version……………………. : 000500F0;
Preamp vendor……………………… : 0x0000;
Preamp revision……………………. : 0x0002;

;

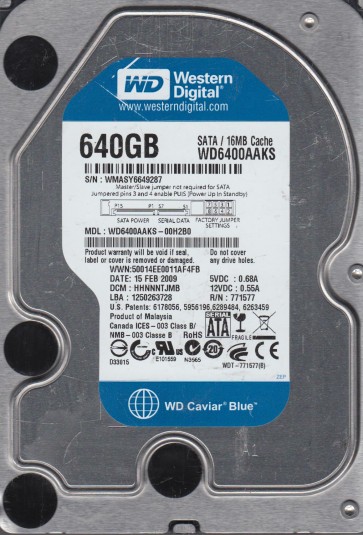

HDD with Serial Number: WMASY6649287;
Model: WD6400AAKS-00H2B0;
Date: 15 FEB 2009;
DCM: HHNNNTJMB;
Product of: Malaysia;
PCB Sticker: 2061-771577-900 04P;
PCB Revision: 2060-771577-001 REV A;
;

Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 0 : 9D8/2520;
1 : 1 : A82/2690;
2 : 2 : 9C2/2498;
3 : 3 : A4A/2634;
ROM F/W version……………………. : 000500BA;
Heads map…………………………. : 0,1,2,3;
Preamp vendor……………………. : 0x0001;
Preamp revision………………….. : 0X0001;

;

HDD with Serial Number: WCASY0344347;
Model: WD6400AAKS-22A7B0;
Date: 14 MAY 2008;
DCM: DBNNHV2MGB;
Product of: Thailand;
PCB Sticker: 2061-701537-E00 07P;
PCB Revision: 2060-701537-003 REV A;
;

Micro Jogs;
——————————;
LH  : PH  : Micro Jog (Hex/Dec);
——————————;
0   : 0   : 8D7/2263;
1   : 1   : 8C9/2249;
2   : 2   : 8EE/2286;
3   : 3   : 8E3/2275;
ROM F/W version……………………. : 00050060;
Heads map…………………………. : 0,1,2,3;
Preamp vendor……………………. : 0x0000;
Preamp revision………………….. : 0x0002;

;

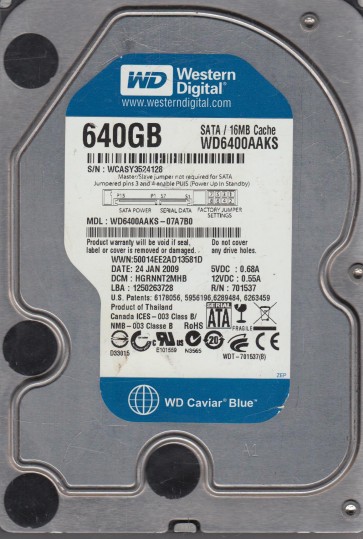

HDD with Serial Number: WCASY3524128;
Model: WD6400AAKS-07A7B0;
Date: 24 JAN 2009;
DCM: HGRNNT2MHB;
Product of: Thailand;
PCB Sticker: 2061-701537-E00 07PD3;
PCB Revision: 2060-701537-003 REV A;
;

Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 0 : 9FC/2556;
1 : 1 : A16/2582;
2 : 2 : 9F8/2552;
3 : 3 : 9F6/2550;
ROM F/W version……………………. : 000500AP;
Heads map…………………………. : 0,1,2,3;
Preamp vendor……………………. : 0x0000;
Preamp revision………………….. : 0x0002;

;

HDD with Serial Number: WCASY1452289;
Model: WD6400AAKS-22A7B0;
Date: 10 AUG 2008;
DCM: DHRNNT2CBN;
Product of: Thailand;
PCB Sticker: 2061-701537-E00 07PD3;
PCB Revision: 2060-701537-003 REV A;
;

Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 0 : A90/2704;
1 : 1 : A17/2583;
2 : 2 : AFF/2815;
3 : 3 : ABD/2749;
ROM F/W version……………………. : 00050089;
Heads map…………………………. : 0,1,2,3;
Preamp vendor……………………. : 0x0000;
Preamp revision………………….. : 0x0002;

;
