Category: HDD

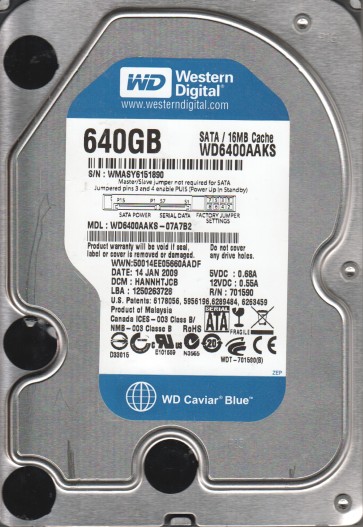

HDD #1 Specs:;
SN: WMASY6151890;
Model: WD6400AAKS-07A7B2;
Date: 14 JAN 2009;
DCM: HANNHTJCB ;
Product of: Malaysia;
PCB Sticker: 2061-701590-L00 AC;
PCB Revision: 2060-701590-000 REV A;

;

Micro Jogs;
——————————;
LH  : PH  : Micro Jog (Hex/Dec);
——————————;
0   : 0   : A00/2560;
1   : 1   : A0A/2570;
2   : 2   : 9FE/2558;
3   : 3   : A2E/2606;
ROM F/W version……………………. : 000500AP;
Preamp vendor……………………… : 0x0001;
Preamp revision……………………. : 0x0001;
;
;
;
;

;

;
;
;

;

HDD with Serial Number: WMASY5222462;
Model: WD6400AAKS-22A7B0;
Date: 02 DEC 2008;
DCM: EANNHTJCA;
Product of: Malaysia;
PCB Sticker: 2061-701537-E00 07PD3;
PCB Revision: 2060-701537-003 REV A;
;

Micro Jogs;
——————————;
LH  : PH  : Micro Jog (Hex/Dec);
——————————;
0   : 0   : A48/2632;
1   : 1   : 9B4/2484;
2   : 2   : A5C/2652;
3   : 3   : 9E6/2534;
ROM F/W version……………………. : 000500AP;
Heads map…………………………. : 0,1,2,3;
Preamp vendor……………………. : 0x0001;
Preamp revision………………….. : 0x0001;
;
;
;

;

HDD with Serial Number: WMASY5783671;
Model: WD6400AAKS-08A7B0;
Date: 01 JAN 2009;
DCM: DBNNNTJCA;
Product of: Malaysia;
PCB Sticker: 2061-701537-E00 07PD3;
PCB Revision: 2060-701537-003 REV A;
;

ROM F/W version 000500AP;
Heads map  0,1,2,3;
Preamp vendor: x0001;
Preamp revision: x0001;
;
;
Micro Jogs;
——————————;
LH  : PH  : Micro Jog (Hex/Dec);
——————————;
0   : 0   : A68/2664;
1   : 1   : A72/2674;
2   : 2   : A78/2680;
3   : 3   : A52/2642

;

HDD with Serial Number: WMASY1573774;
Model: WD6400AAKS-22A7B0;
Date: 13 MAY 2008;
DCM: EANNNV2MA;
Product of: Malaysia;
PCB Sticker: 2061-701537-E00 07P;
PCB Revision: 2060-701537-003 REV A;
;

Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 0 : 908/2312;
1 : 1 : 8CB/2251;
2 : 2 : 90F/2319;
3 : 3 : 8B5/2229;

;

ROM F/W version:00050060;
Preamp vendor:0x0000;
Preamp revision:0x0002;

;

HDD with Serial Number: WMASY5062751;
Model: WD6400AAKS-08A7B0;
Date: 26 NOV 2008;
DCM: EBNNHTJCB;
Product of: Malaysia;
PCB Sticker: 2061-701537-E00 07PD3;
PCB Revision: 2060-701537-003 REV A;
;

Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 0 : A08/2568;
1 : 1 : 9EC/2540;
2 : 2 : 9FE/2558;
3 : 3 : 9DE/2526;
ROM F/W version……………………. : 000500AP;
Heads map…………………………. : 0,1,2,3;
Preamp vendor……………………. : 0x0001;
Preamp revision………………….. : 0x0001;

;

HDD with Serial Number: WMASY4455732;
Model: WD6400AAKS-22A7B0;
Date: 29 OCT 2008;
DCM: EBNNNTJMA;
Product of: Malaysia;
PCB Sticker: 2061-701537-E00 07PD3;
PCB Revision: 2060-701537-003 REV A;
;

Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 0 : 9D4/2516;
1 : 1 : 9A6/2470;
2 : 2 : 9FC/2556;
3 : 3 : 97A/2426;
ROM F/W version……………………. : 000500AP;
Heads map…………………………. : 0,1,2,3;
Preamp vendor……………………… : 0x0001;
Preamp revision……………………. : 0x0001;

;

HDD with Serial Number: WMASY3996354;
Model: WD6400AAKS-08A7B0;
Date: 19 OCT 2008;
DCM: HARNNT2CB;
Product of: Malaysia;
PCB Sticker: 2061-701537-E00 07PD3;
PCB Revision: 2060-701537-003 REV A;
;

Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 0 : 9EC/2540;
1 : 1 : A1A/2586;
2 : 2 : A1A/2586;
3 : 3 : A58/2648;

;

ROM F/W version:000500AP;
Preamp vendor:0x0000;
Preamp revision:0x0002;

;

HDD with Serial Number: WCASY1816316;
Model: WD6400AAKS-22A7B0;
Date: 21 JUL 2008;
DCM: EGRNNT2MHN;
Product of: Thailand;
PCB Sticker: 2061-701537-E00 07PD3;
PCB Revision: 2060-701537-003 REV A;

;

Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 0 : A99/2713;
1 : 1 : 9D6/2518;
2 : 2 : A8B/2699;
3 : 3 : 9D4/2516;

;

ROM F/W version……………………. : 00050084;
Preamp vendor……………………… : 0x0000;
Preamp revision……………………. : 0x0002;

;

HDD with Serial Number: WCAUF3185463;
Model: WD6400AACS-00G8B1;
Date: 18 JUN 2009;
DCM: EANNHT2CBB;
Product of: Thailand;
PCB Sticker: 2061-701590-B00 AD;
PCB Revision: 2060-701590-000 REV A;
;

Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 0 : A06/2566;
1 : 1 : AD0/2768;
2 : 2 : 9EE/2542;
3 : 3 : ACE/2766;
ROM F/W version……………………. : 000500CV;
Heads map…………………………. : 0,1,2,3;
Preamp vendor……………………. : 0x0000;
Preamp revision………………….. : 0x0002;

;

HDD with Serial Number: WCAV53882079;
Model: WD6400AADS-11M2B1;
Date: 27 APR 2011;
DCM: EHNYHT2MH;
Product of: Thailand;
PCB Sticker: 2061-701640-402 01PD7;
PCB Revision: 2060-701640-002 REV A;
;

Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 1 : C96/3222;
1 : 2 : C3C/3132;
2 : 3 : CB7/3255;

;

ROM F/W version: 0080007P;
Heads map: 1,2,3;
Preamp vendor: 0x0000;
Preamp revision: 0x0002;

;
