Category: HDD

HDD with Serial Number: WCAUF0028679;
Model: WD6400AACS-00G8B0;
Date: 07 JUL 2008;
DCM: HARNHTJMAB;
Product of: Thailand;
PCB Sticker: 2061-701537-R00 AD;
PCB Revision: 2060-701537-004 REV A;
;

Micro Jogs;
——————————;
LH  : PH  : Micro Jog (Hex/Dec);
——————————;
0   : 0   : A80/2688;
1   : 1   : A92/2706;
2   : 2   : AAA/2730;
3   : 3   : A80/2688;
ROM F/W version……………………. : 0005005T;
Heads map…………………………. : 0,1,2,3;
Preamp vendor……………………. : 0x0001;
Preamp revision………………….. : 0x0001;

;

HDD with Serial Number: WCAV50183679;
Model: WD6400AACS-00M3B0;
Date: 17 JUN 2009;
DCM: EANCHV2MAB;
Product of: Thailand;
PCB Sticker: 2061-701640-A00 05PD1;
PCB Revision: 2060-701640-000 REV P1;
;

Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 1 : B1C/2844;
1 : 2 : B5B/2907;
2 : 3 : B49/2889;
ROM F/W version……………………. : 0096002C;
Heads map…………………………. : 1,2,3;
Preamp vendor……………………. : 0x0000;
Preamp revision………………….. : 0x0002;

;

HDD with Serial Number: WCASY3201953;
Model: WD6400AAKS-00A7B2;
Date: 05 DEC 2008;
DCM: EHRNHTJMHB;
Product of: Thailand;
PCB Sticker: 2061-701590-L00 01P;
PCB Revision: 2060-701590-000 REV A;
;

Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 0 : A0C/2572;
1 : 1 : A12/2578;
2 : 2 : A0E/2574;
3 : 3 : A1C/2588;

;

ROM F/W: 000500AP;
Heads map: 0,1,2,3;
Preamp vendor: 0x0001;
Preamp revision: 0x0001;

;

HDD with Serial Number: WCAUF2984303;
Model: WD6400AACS-00G8B1;
Date: 17 APR 2009;
DCM: DARNNTJMHB;
Product of: Thailand;
PCB Sticker: 2061-701590-B00 AD;
PCB Revision: 2060-701590-000 REV A;
;

Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 0 : A74/2676;
1 : 1 : 9F2/2546;
2 : 2 : A5E/2654;
3 : 3 : A1A/2586;
ROM F/W version……………………. : 000500C2;
Heads map…………………………. : 0,1,2,3;
Preamp vendor……………………. : 0x0001;
Preamp revision………………….. : 0x0001;

;

Specifications;

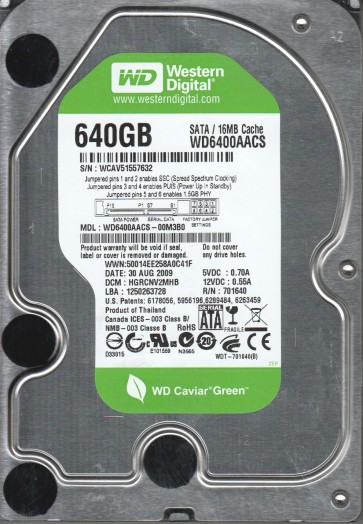

SN: WCAV51557632;
Model: WD6400AACS-00M3B0;
Date: 30 AUG 2009;
DCM: HGRCNV2MHB ;
Product of: Thailand;
PCB Sticker: 2061-701640-700 02PD3;
PCB Revision: 2060-701640-001 REV A;

;

Micro Jogs;
——————————;
LH  : PH  : Micro Jog (Hex/Dec);
——————————;
0   : 0   : B19/2841;
1   : 1   : B30/2864;
2   : 2   : AFB/2811;
ROM F/W version……………………. : 0090001G;
Preamp vendor……………………… : 0x0000;
Preamp revision……………………. : 0x0002;
;
;
;
;
;
;

;

HDD with Serial Number: WCASYC040770;
Model: WD6400AAKS-00A7B2;
Date: 27 JUL 2010;
DCM: HANNHT2MA;
Product of: Thailand;
PCB Sticker: 2061-701590-L01 04P;
PCB Revision: 2060-701590-001 REV A;
;

Micro Jogs;
——————————;
LH  : PH  : Micro Jog (Hex/Dec);
——————————;
0   : 0   : A10/2576;
1   : 1   : 9F8/2552;
2   : 2   : A10/2576;
3   : 3   : 9E6/2534

;

HDD with Serial Number: WCAUF3193936;
Model: WD6400AACS-00G8B1;
Date: 24 JUN 2009;
DCM: DHNNHTJCBB;
Product of: Thailand;
PCB Sticker: 2061-701590-B00 AD;
PCB Revision: 2060-701590-000 REV A;

;

Micro Jogs;
——————————;
LH  : PH  : Micro Jog (Hex/Dec);
——————————;
0   : 0   : A7A/2682;
1   : 1   : ADA/2778;
2   : 2   : A74/2676;
3   : 3   : AD4/2772;
ROM F/W version……………………. : 000500CV;
Preamp vendor……………………… : 0x0001;
Preamp revision……………………. : 0x0001;
;
;
;
;

;

HDD with Serial Number: WCAV51548296;
Model: WD6400AACS-00M3B0;
Date: 31 AUG 2009;
DCM: HHRCNV2MGB;
Product of: Thailand;
PCB Sticker: 2061-701640-700 02PD3;
PCB Revision: 2060-701640-001 REV A;
;

Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 0 : B3E/2878;
1 : 1 : B9A/2970;
2 : 2 : B7C/2940;
ROM F/W version……………………. : 0090001G;
Heads map…………………………. : 0,1,2;
Preamp vendor……………………. : 0x0000;
Preamp revision………………….. : 0x0002;

;

HDD with Serial Number: WMASY5770633;
Model: WD6400AAKS-00A7B2;
Date: 30 DEC 2008;
DCM: HANNHTJCH;
Product of: Malaysia;
PCB Sticker: 2061-701590-L00 AC;
PCB Revision: 2060-701590-000 REV A;
;

Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 0 : A78/2680;
1 : 1 : A74/2676;
2 : 2 : A98/2712;
3 : 3 : A70/2672;
ROM F/W version……………………. : 000500AP;
Heads map…………………………. : 0,1,2,3;
Preamp vendor……………………. : 0x0001;
Preamp revision………………….. : 0x0001;

;

HDD with Serial Number: WCAUF2664101;
Model: WD6400AACS-00G8B1;
Date: 22 JAN 2009;
DCM: DHRNHT2MHB;
Product of: Thailand;
PCB Sticker: 2061-701590-B00 02P;
PCB Revision: 2060-701590-000 REV A;

;

Micro Jogs;
——————————;
LH  : PH  : Micro Jog (Hex/Dec);
——————————;
0   : 0   : ADE/2782;
1   : 1   : A74/2676;
2   : 2   : AD4/2772;
3   : 3   : A68/2664;
ROM F/W version……………………. : 000500BG;
Preamp vendor……………………… : 0x0000;
Preamp revision……………………. : 0x0002;
;
;
;
;

;
