Category: HDD

HDD with Serial Number: WX11D4419056;
Model: WD60EFRX-68MYMN1;
Date: 12 AUG 2014;
DCM: HBRNHVJMAB;
Product of: Thailand;
PCB Sticker: 800001-500 01P;
PCB Revision: 2060-800001-000 REV P1;
;

——————————;
LH  : PH  : Micro Jog (Hex/Dec);
——————————;
0   : 0   : 00/0;
1   : 1   : 00/0;
2   : 2   : 00/0;
3   : 3   : 00/0;
4   : 4   : 00/0;
5   : 5   : 00/0;
6   : 6   : 00/0;
7   : 7   : 00/0;
8   : 8   : 00/0;
9   : 9   : 00/0;
;
ROM F/W Version: 0001002A;
Heads map: 0,1,2,3,4,5,6,7,8,9;
Preamp vendor: 0x0001;
Preamp revision: 0x0003

;

HDD with Serial Number: WX21D7453S7X;
Model: WD60EZRX-00MVLB1;
Date: 01 SEP 2014;
DCM: HBNNHVJAAB;
Product of: Thailand;
PCB Sticker: 800001-500 01P;
PCB Revision: 2060-800001-000 REV P1;

;

Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 0 : 00/0;
1 : 1 : 00/0;
2 : 2 : 00/0;
3 : 3 : 00/0;
4 : 4 : 00/0;
5 : 5 : 00/0;
6 : 6 : 00/0;
7 : 7 : 00/0;
8 : 8 : 00/0;
9 : 9 : 00/0;
;
ROM F/W version……………………. : 0021002J;
Preamp vendor……………………… : 0x0001;
Preamp revision……………………. : 0x0003;

;

HDD with Serial Number: WX91D65DC2K7;
Model: WD60EZRZ-00RWYB1;
Date: 08 NOV 2015;
DCM: HANCHTJMAB;
Product of: Thailand;
PCB Sticker: 800001-702 A1;
PCB Revision: 2060-800001-002 REV P1;
;

Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 0 : 00/0;
1 : 1 : 00/0;
2 : 2 : 00/0;
3 : 3 : 00/0;
4 : 4 : 00/0;
5 : 5 : 00/0;
6 : 6 : 00/0;
7 : 7 : 00/0;
8 : 8 : 00/0;
9 : 9 : 00/0;
ROM F/W version……………………. : 00010068;
Heads map…………………………. : 0,1,2,3,4,5,6,7,8,9;
Preamp vendor……………………… : 0x0001;
Preamp revision……………………. : 0x0003;

;

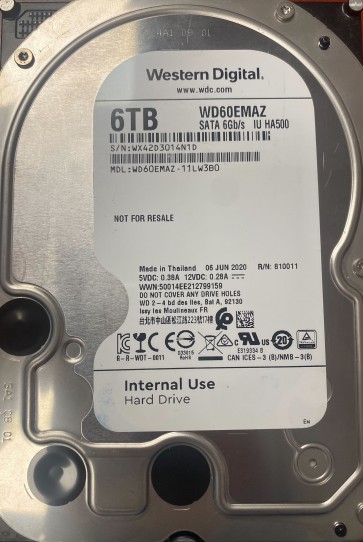

HDD with Serial Number: WX42D3014N1D;
Model: WD60EMAZ-11LW3B0;
Date: 06 JUN 2020;
Product of: Thailand;
PCB Sticker: 810011-811 03;
PCB Revision: 2060-810011-001 REV P1;
;

;

HDD with Serial Number: WX41D3402656;
Model: WD60EZRX-00MVLB1;
Date: 25 AUG 2014;
DCM: HBNNHVJABB;
Product of: Thailand;
PCB Sticker: 800001-500 01P;
PCB Revision: 2060-800001-000 REV P1;
;

Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 0 : 00/0;
1 : 1 : 00/0;
2 : 2 : 00/0;
3 : 3 : 00/0;
4 : 4 : 00/0;
5 : 5 : 00/0;
6 : 6 : 00/0;
7 : 7 : 00/0;
8 : 8 : 00/0;
9 : 9 : 00/0;
ROM F/W version……………………. : 0021002J;
Heads map…………………………. : 0,1,2,3,4,5,6,7,8,9;
Preamp vendor……………………. : 0x0001;
Preamp revision………………….. : 0x0003;

;

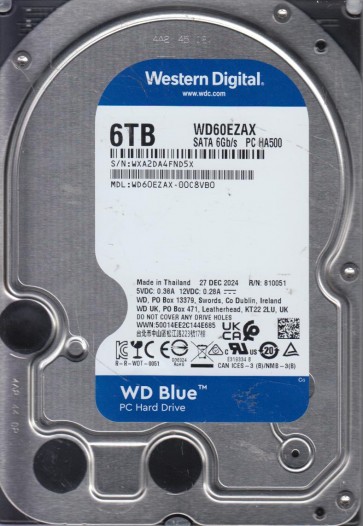

HDD with Serial Number: WXA2DA4FND5X;
Model: WD60EZAX-00C8VB0;
Date: 27 DEC 2024;
Product of: Thailand;
PCB Sticker: 810051-300 05;
PCB Revision: 2060-810051-000 REV P0;
ROM F/W: 009A000T
Heads map: 0,1,2,3,4,5
Preamp vendor: 0x0001
Preamp revision: 0x00D1;

;

HDD with Serial Number: WX31D944CV1A;
Model: WD60EZRX-00MVLB1;
Date: 29 NOV 2014;
DCM: HBNNHVJMAB;
Product of: Thailand;
PCB Sticker: 800001-702 02R;
PCB Revision: 2060-800001-002 REV P1;

;

Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 0 : 00/0;
1 : 1 : 00/0;
2 : 2 : 00/0;
3 : 3 : 00/0;
4 : 4 : 00/0;
5 : 5 : 00/0;
6 : 6 : 00/0;
7 : 7 : 00/0;
8 : 8 : 00/0;
9 : 9 : 00/0;
ROM F/W version……………………. : 0001003P;
Heads map…………………………. : 0,1,2,3,4,5,6,7,8,9;
Preamp vendor……………………. : 0x0001;
Preamp revision………………….. : 0x0003;

;

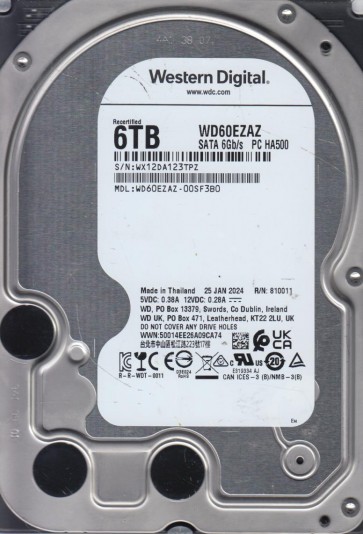

HDD with Serial Number: WX12DA123TPZ;
Model: WD60EZAZ-00SF3B0;
Date: 25 JAN 2024;
Product of: Thailand;
PCB Sticker: 810011-911 AJ;
PCB Revision: 2060-810011-001 REV P1;
;

Number of Heads: 6;
Preamp vendor: 0x0000;
Preamp revision: 0x0000;

;

HDD with Serial Number: WX11D557YZ4V;
Model: WD60EZRX-11MVLB1;
Date: 29 JUN 2015;
DCM: HANCKTJMAB;
Product of: Thailand;
PCB Sticker: 800001-702 A1;
PCB Revision: 2060-800001-002 REV P1;
;

;

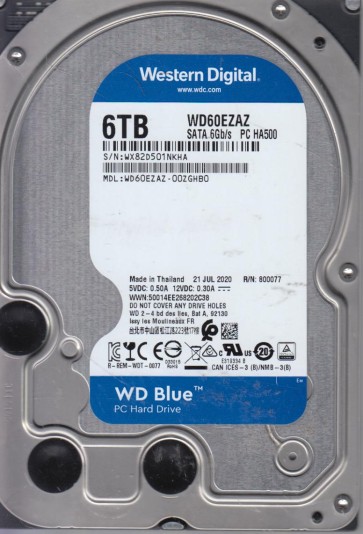

HDD with Serial Number: WX82D501NKHA;
Model: WD60EZAZ-00ZGHB0;
Date: 21 JUL 2020;
Product of: Thailand;
PCB Sticker: 800077-C03 AA;
PCB Revision: 2060-800077-003 REV P1;
;

Number of Heads: 6;
Preamp vendor: 0x0000;
Preamp revision: 0x0000;

HDD with Serial Number: WX11DC8DNJSX;
Model: WD60EZAZ-00ZGHB0;
Date: 22 JAN 2019;
Product of: Thailand;
PCB Sticker: 800077-C03 02;
PCB Revision: 2060-800077-003 REV P1;
;

HDD with Serial Number: WX51D68DLV90;
Model: WD60EZAZ-00ZGHB0;
Date: 26 NOV 2018;
Product of: Thailand;
PCB Sticker: 800077-C03 01;
PCB Revision: 2060-800077-003 REV P1;
;

HDD with Serial Number: WX51D68DLDZL;
Model: WD60EZAZ-00ZGHB0;
Date: 28 NOV 2018;
Product of: Thailand;
PCB Sticker: 800077-C03 01;
PCB Revision: 2060-800077-003 REV P2;
;

;
