Category: HDD

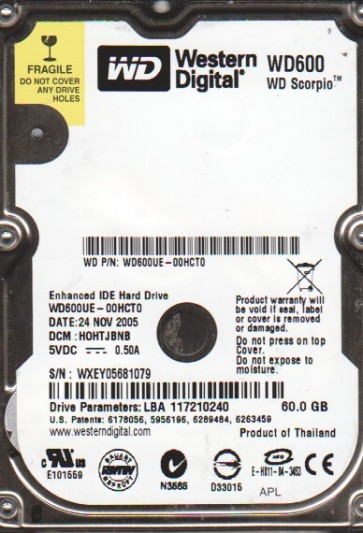

Specifications;
SN: WXEY05681079;
Model: WD600UE-00HCT0;
Date: 24 NOV 2005;
DCM: HOHTJBNB ;
Product of: Thailand;
PCB Sticker: 2061-701281-100 AF;
PCB Revision: 2060-701281-001 REV A;

;

;

HDD with Serial Number: WXC207088316;
Model: WD600VE-11KWT0;
Date: 07 MAR 2007;
DCM: FOTJABB;
Product of: Thailand;
PCB Sticker: 2061-701402-200 AC;
PCB Revision: 2060-701402-002 REV B;

;

Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 1 : 71D/1821;
1 : 2 : 681/1665;
ROM F/W version……………………. : 00020034;
Heads map…………………………. : 1,2;
Preamp vendor…………………….. : 0x0004;
Preamp revision…………………… : 0x0001;

HDD with Serial Number: WXC207113617;
Model: WD600VE-11KWT0;
Date: 07 MAR 2007;
DCM: FOTJABB;
Product of: Thailand;
PCB Sticker: 2061-701402-200 AC;
PCB Revision: 2060-701402-002 REV B;
;

Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 1 : 6B3/1715;
1 : 2 : 697/1687;
ROM F/W version……………………. : 00020034;
Heads map…………………………. : 1,2;
Preamp vendor…………………….. : 0x0004;
Preamp revision…………………… : 0x0001;

HDD with Serial Number: WXC207107170;
Model: WD600VE-11KWT0;
Date: 07 MAR 2007;
DCM: FOTJABB;
Product of: Thailand;
PCB Sticker: 2061-701402-200 AC;
PCB Revision: 2060-701402-002 REV B;
;

Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 1 : 6D7/1751;
1 : 2 : 631/1585;
ROM F/W version……………………. : 00020034;
Heads map…………………………. : 1,2;
Preamp vendor……………………. : 0x0004;
Preamp revision………………….. : 0x0001;

;

HDD with Serial Number: WXJ1H26M4V5Z;
Model: WD60EFRX-68L0BN1;
Date: 02 JUL 2016;
DCM: EBNCKTJMBB;
Product of: Thailand;
PCB Sticker: 800001-205 AA;
PCB Revision: 2060-800001-005 REV P1;
;

;

HDD with Serial Number: WXEX05345375;
Model: WD600UE-00HCT0;
Date: 02 NOV 2005;
DCM: HYHTJHFH;
Product of: Thailand;
PCB Sticker: 2061-701281-100 AF;
PCB Revision: 2060-701281-001 REV A;

;

Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 0 : FC57/64599;
1 : 1 : FC51/64593;
2 : 2 : FC67/64615;

;

ROM F/W version……………………. : 104SD;
Preamp vendor……………………… : 0x0004;
Preamp revision……………………. : 0x0002;

;

HDD with Serial Number: WXE806799450;
Model: WD600VE-11KWT0;
Date: 11 JUL 2007;
DCM: HNTJBBB;
Product of: Thailand;
PCB Sticker: 2061-701402-200 AC;
PCB Revision: 2060-701402-002 REV B;

;

Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 0 : 6A7/1703;
1 : 1 : 741/1857;
ROM F/W version……………………. : 00020034;
Heads map…………………………. : 0,1;
Preamp vendor……………………. : 0x0004;
Preamp revision………………….. : 0x0001;

;

HDD with Serial Number: WXB1HB4PSXSZ;
Model: WD60EFRX-68L0BN1;
Date: 12 DEC 2015;
DCM: EBRCKTJABB;
Product of: Thailand;
PCB Sticker: 800001-205 AA;
PCB Revision: 2060-800001-005 REV P1;
;

HDD with Serial Number: WXC1HB4NCYA2;
Model: WD60EFRX-68L0BN1;
Date: 24 FEB 2016;
DCM: EBRCKTJABB;
Product of: Thailand;
PCB Sticker: 800001-205 AA;
PCB Revision: 2060-800001-005 REV P1;
;

;

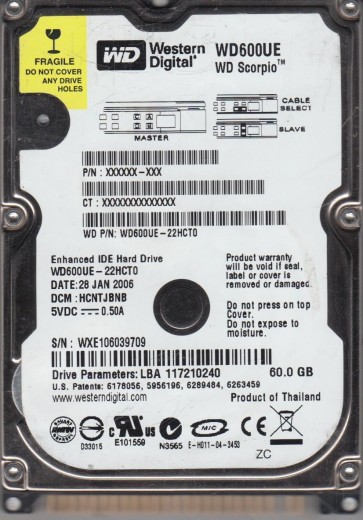

HDD with Serial Number: WXE106039709;
Model: WD600UE-22HCT0;
Date: 28 JAN 2006;
DCM: HCNTJBNB;
Product of: Thailand;
PCB Sticker: 2061-701285-100 AJ;
PCB Revision: 2060-701285-001 REV A;
;

;

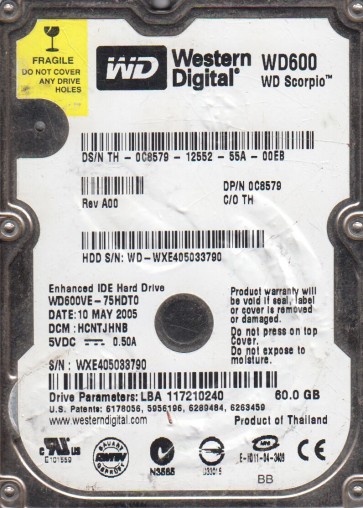

HDD #1 Specs:;
SN: WXE405033790;
Model: WD600VE-75HDT0;
Date: 10 MAY 2005;
DCM: HCNTJHNB ;
Product of: Thailand;
PCB Sticker: 2061-701285-100 AF;
PCB Revision: 2060-701285-001 REV A;

;

;

HDD with Serial Number: WXL1H164W9SR;
Model: WD60EFRX-68L0BN1;
Date: 04 AUG 2016;
DCM: EBRCKTJMBB;
Product of: Thailand;
PCB Sticker: 800001-205 AA;
PCB Revision: 2060-800001-005 REV P1;
;

Micro Jogs;
——————————;
LH  : PH  : Micro Jog (Hex/Dec);
——————————;
0   : 0   : 00/0;
1   : 1   : 00/0;
2   : 2   : 00/0;
3   : 3   : 00/0;
4   : 4   : 00/0;
5   : 5   : 00/0;
6   : 6   : 00/0;
7   : 7   : 00/0;
8   : 8   : 00/0;
9   : 9   : 00/0;
ROM F/W version……………………. : 0003001T;
Heads map…………………………. : 0,1,2,3,4,5,6,7,8,9;
Preamp vendor……………………. : 0x0001;
Preamp revision………………….. : 0x0003;

;

HDD #1 Specs:;
SN: WXE706443279;
Model: WD600VE-00HDT0;
Date: 27 AUG 2006;
DCM: HCHTJHNBN ;
Product of: Thailand;
PCB Sticker: 2061-701285-200 AB;
PCB Revision: 2060-701285-002 REV A;

;

Micro Jogs;
——————————;
LH  : PH  : Micro Jog (Hex/Dec);
——————————;
0   : 1   : FC7D/64637;
1   : 2   : FC83/64643;
2   : 3   : FC77/64631;
;
;

;
