Category: HDD

HDD with Serial Number: WMAM97278335;
Model: WD800JD-75JNC0;
Date: 16 APR 2005;
DCM: HSBHCTJCH;
Product of: Malaysia;
PCB Sticker: 2061-701293-B00 AM;
PCB Revision: 2060-701293-001 REV A;

;

Micro Jogs;
——————————;
LH  : PH  : Micro Jog (Hex/Dec);
——————————;
0   : 0   : 45A/1114;
1   : 1   : 45A/1114;
ROM F/W version……………………. : 088FC;
Preamp vendor……………………… : 0x0001;
Preamp revision……………………. : 0x0003;
;
;

;

HDD with Serial Number: WMAM97384954;
Model: WD800JD-75JNC0;
Date: 17 APR 2005;
DCM: HSBHCTJCH;
Product of: Malaysia;
PCB Sticker: 2061-701293-B00 AM;
PCB Revision: 2060-701293-001 REV A;

;

Micro Jogs;
——————————;
LH  : PH  : Micro Jog (Hex/Dec);
——————————;
0   : 0   : 43A/1082;
1   : 1   : 4A4/1188;
ROM F/W version……………………. : 088FC;
Preamp vendor……………………… : 0x0001;
Preamp revision……………………. : 0x0003;
;
;
;
;

;

HDD #1 Specs:;
Serial Number: WCAM97636777;
Model: WD800JD-75JNC0;
Date: 28 MAY 2005;
DCM: HSCAYTJAH;
Product of: Thailand;
PCB Sticker: 2061-701293-B00 AN;
PCB Revision: 2060-701293-001 REV A;

;

Micro Jogs;
——————————;
LH  : PH  : Micro Jog (Hex/Dec);
——————————;
0   : 0   : 458/1112;
1   : 1   : 4B4/1204;
ROM F/W version……………………. : 0891C;
Preamp vendor……………………… : 0x0001;
Preamp revision……………………. : 0x0004;
;
;
;
;

;

Specifications:;
SN WMAJ95013688;
Model WD800JD-75HKA1;
Date 24 JUL 2004;
DCM HSBACTJAB ;
Product of Malaysia;
PCB Sticker: 2061-001252-000;
PCB Revision: 2060-001252-000 REV A;

;

ROM F/W version……………………. : 14DAG;
Preamp vendor……………………… : 0x0001;
Preamp revision……………………. : 0x0003;
Heads map…………………………. : 0,1;

;

Micro Jogs;
——————————;
LH  : PH  : Micro Jog (Hex/Dec);
——————————;
0   : 0   : 42D/1069;
1   : 1   : 435/1077;
;
;

;

HDD #1 Specs:;
Serial Number: WMAM97036482;
Model: WD800JD-75JNC0;
Date: 26 APR 2005;
DCM: HSCHCTJCA;
Product of: Malaysia;
PCB Sticker: 2061-701293-B00 AM;
PCB Revision: 2060-701293-001 REV A;

;

Micro Jogs;
——————————;
LH  : PH  : Micro Jog (Hex/Dec);
——————————;
0   : 0   : 424/1060;
1   : 1   : 466/1126;
ROM F/W version……………………. : 0891C;
Preamp vendor……………………… : 0x0001;
Preamp revision……………………. : 0x0003;
;
;
;
;

;

HDD #1 Specs:;
SN: WMAJ95175372;
Model: WD800JD-75HKA1;
Date: 27 JUL 2004;
DCM: HSCACTJAH ;
Product of: Malaysia;
PCB Sticker: 2061-001252-000 AG;
PCB Revision: 2060-001252-000 REV A;

;

Micro Jogs;
——————————;
LH  : PH  : Micro Jog (Hex/Dec);
——————————;
0   : 0   : 441/1089;
1   : 1   : 43B/1083;
ROM F/W version……………………. : 14DAG;
Preamp vendor……………………… : 0x0001;
Preamp revision……………………. : 0x0003;
;
;
;
;
;
;

;

HDD with Serial Number: WCAM96964581;
Model: WD800JD-75JNC0;
Date: 10 MAY 2005;
DCM: HSCHYTJAH;
Product of: Thailand;
PCB Sticker: 2061-701293-B00 AM;
PCB Revision: 2060-701293-001 REV A;

;

Micro Jogs;
——————————;
LH  : PH  : Micro Jog (Hex/Dec);
——————————;
0   : 0   : 44C/1100;
1   : 1   : 452/1106;
ROM F/W version……………………. : 0891C;
Preamp vendor……………………… : 0x0001;
Preamp revision……………………. : 0x0003;
;
;
;
;

;

HDD with Serial Number: WMAM92421718;
Model: WD800JD-75JNA0;
Date: 09 NOV 2004;
DCM: DSBAYTJCH;
Product of: Malaysia;
PCB Sticker: 2061-001293-B00 AG;
PCB Revision: 2060-001293-000 REV A;
;

;

Specifications:;
SN WMAM99292350;
Model WD800JD-75LSA0;
Date 29 JUL 2005;
DCM DSBACTJCA ;
Product of Malaysia;
PCB Sticker: 2061-701335-A00 AC;
PCB Revision: 2060-701335-003 REV B;

;

;

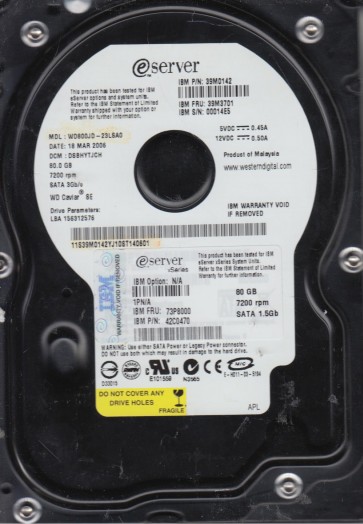

HDD #1 Specs:;
Serial Number: WMAM9S783084;
Model: WD800JD-23LSA0;
Date: 18 MAR 2006;
DCM: DSBHYTJCH;
Product of: Malaysia;
PCB Sticker: 2061-701335-E00 AD;
PCB Revision: 2060-701335-005 REV A;

;

Micro Jogs;
——————————;
LH  : PH  : Micro Jog (Hex/Dec);
——————————;
0   : 0   : 476/1142;
1   : 1   : 4B8/1208;
ROM F/W version……………………. : 063UD;
Preamp vendor……………………… : 0x0001;
Preamp revision……………………. : 0x0004;
;
;
;
;

;
;
;

;

HDD with Serial Number: WMAM9V078133;
Model: WD800JD-60LSA0;
Date: 23 APR 2006;
DCM: DSCHNTJAH;
Product of: Malaysia;
PCB Sticker: 2061-701335-E00 AD;
PCB Revision: 2060-701335-005 REV A;

;

Micro Jogs;
——————————;
LH  : PH  : Micro Jog (Hex/Dec);
——————————;
0   : 0   : 412/1042;
1   : 1   : 450/1104;
ROM F/W version……………………. : 06BUD;
Preamp vendor……………………… : 0x0001;
Preamp revision……………………. : 0x0004;
;
;
;
;

;
