HDD #1 Specs:;
Serial Number: WMAM9HM06607;
Model: WD800JD-23LSA0;
Date: 13 DEC 2006;
DCM: ESBHNTJCH;
Product of: Malaysia;
PCB Sticker: 2061-701335-E00 AK;
PCB Revision: 2060-701335-005 REV A;

;

Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 0 : 474/1140;
1 : 1 : 498/1176;

;

ROM F/W version……………………. : 06BVD;
Preamp vendor……………………… : 0x0001;
Preamp revision……………………. : 0x0004;

;

Specifications:;
SN WMAM9T607013;
Model WD800JD-60LSA0;
Date 12 APR 2006;
DCM ESBAYTJCA ;
Product of Malaysia;
PCB Sticker: 2061-701335-E00 AD;
PCB Revision: 2060-701335-005 REV A;

;

ROM F/W version……………………. : 063UD;
Preamp vendor……………………… : 0x0001;
Preamp revision……………………. : 0x0004;
Heads map…………………………. : 0,1;

;

Micro Jogs;
——————————;
LH  : PH  : Micro Jog (Hex/Dec);
——————————;
0   : 0   : 4B2/1202;
1   : 1   : 4A2/1186;
;
;

;

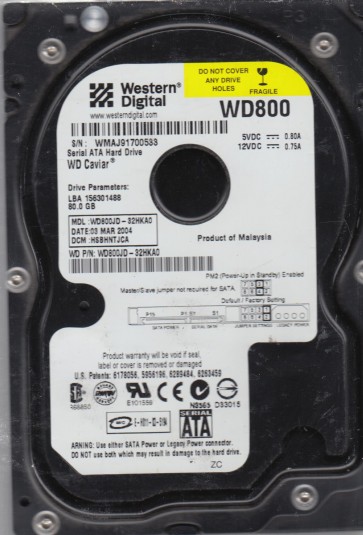

HDD with Serial Number: WMAJ91700533;
Model: WD800JD-32HKA0;
Date: 03 MAR 2004;
DCM: HSBHNTJCA;
Product of: Malaysia;
PCB Sticker: 2061-001252-000 AD;
PCB Revision: 2060-001252-000 REV A;
;

;

HDD with Serial Number: WMAM9Z909569;
Model: WD800JD-60LSA0;
Date: 09 JUL 2006;
DCM: HSBANTJCA;
Product of: Malaysia;
PCB Sticker: 2061-701335-E00 AE;
PCB Revision: 2060-701335-005 REV A;

;

Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 0 : 486/1158;
1 : 1 : 42E/1070;
ROM F/W version……………………. : 06BUD;
Heads map…………………………. : 0,1;
Preamp vendor…………………….. : 0x0001;
Preamp revision…………………… : 0x0004;

;

HDD #1 Specs:;
Serial Number: WMAET2414012;
Model: WD800JD-40GBB2;
Date: 27 NOV 2004;
DCM: DSBACTJAA;
Product of: Malaysia;
PCB Sticker: 2061-001215-400 AL;
PCB Revision: 2060-001215-003 REV A;

;

ROM version……………………….. : 09.00M;
Head map………………………….. : 0,1,5;
;
;
;
;

;

HDD #1 Specs:;
Serial Number: WMAM9Z033546;
Model: WD800JD-60LSA0;
Date: 28 JUN 2006;
DCM: HSBHCTJEH;
Product of: Malaysia;
PCB Sticker: 2061-701335-E00 AE;
PCB Revision: 2060-701335-005 REV A;

;

Micro Jogs;
——————————;
LH  : PH  : Micro Jog (Hex/Dec);
——————————;
0   : 0   : 4CE/1230;
1   : 1   : 4E4/1252;
;

;

ROM F/W version……………………. : 063UD;
Preamp vendor……………………… : 0x0001;
Preamp revision……………………. : 0x0004;

;

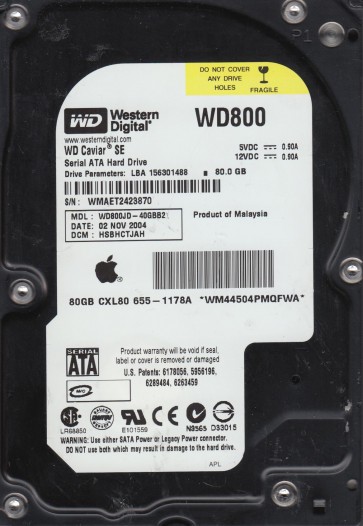

HDD #1 Specs:;
SN: WMAET2423870;
Model: WD800JD-40GBB2;
Date: 02 NOV 2004;
DCM: HSBHCTJAH ;
Product of: Malaysia;
PCB Sticker: 2061-001215-500 AB;
PCB Revision: 2060-001215-003 REV A;

;

ROM version……………………….. : 09.00M;
Head map………………………….. : 0,1,5;

;

HDD with Serial Number: WMAM9X674849;
Model: WD800JD-60LSA0;
Date: 15 JUN 2006;
DCM: HSBHYTJAH;
Product of: Malaysia;
PCB Sticker: 2061-701335-E00 AE;
PCB Revision: 2060-701335-005 REV A;

;

Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 0 : 48C/1164;
1 : 1 : 46C/1132;

;

ROM F/W version……………………. : 06BUD;
Preamp vendor……………………… : 0x0001;
Preamp revision……………………. : 0x0004;

;

HDD #1 Specs:;
SN: WMAM9F397997;
Model: WD800JD-22LSA0;
Date: 05 AUG 2006;
DCM: HSBANTJCH ;
Product of: Malaysia;
PCB Sticker: 2061-701335-A00 AH;
PCB Revision: 2060-701335-003 REV B;

;

Micro Jogs;
——————————;
LH  : PH  : Micro Jog (Hex/Dec);
——————————;
0   : 0   : 472/1138;
1   : 1   : 478/1144;
ROM F/W version……………………. : 06BSD;
Preamp vendor……………………… : 0x0001;
Preamp revision……………………. : 0x0004;

;

;
HDD #2 Specs:;
SN: WMAM9F455308;
Model: WD800JD-22LSA0;
Date: 22 OCT 2005;
DCM: HSBANTJCH ;
Product of: Malaysia;
PCB Sticker: 2061-701335-A00 AH;
PCB Revision: 2060-701335-003 REV B;

;

Micro Jogs;
——————————;
LH  : PH  : Micro Jog (Hex/Dec);
——————————;
0   : 0   : 45E/1118;
1   : 1   : 444/1092;
ROM F/W version……………………. : 06BSD;
Preamp vendor……………………… : 0x0001;
Preamp revision……………………. : 0x0004;
;
;
;
;

;

HDD #1 Specs:;
SN: WMAMD5990357;
Model: WD800JD-55MUA1;
Date: 25 APR 2006;
DCM: DSBACTJAA ;
Product of: Malaysia;
PCB Sticker: 2061-701335-E00 AD;
PCB Revision: 2060-701335-005 REV A;

;

;
Micro Jogs;
——————————;
LH  : PH  : Micro Jog (Hex/Dec);
——————————;
0   : 0   : 480/1152;
1   : 1   : 4B0/1200;
ROM F/W version……………………. : 101CE;
Preamp vendor……………………… : 0x0001;
Preamp revision……………………. : 0x0004;
;
;
;
;

;
