Category: HDD

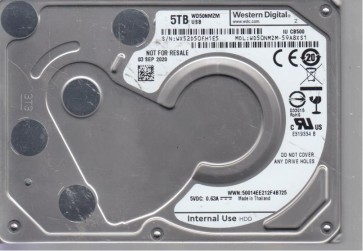

HDD with Serial Number: WX52D50FH1E5;
Model: WD50NMZM-59A8XS1;
Date: 03 SEP 2020;
Product of: Thailand;
PCB Sticker: 810033-001 01;
PCB Revision: 2060-810033-001 REV P0;

;

HDD with Serial Number: WX62DB10E3LH;
Model: WD50NMZM-59A8XS1;
Date: 01 FEB 2022;
Product of: Thailand;
PCB Sticker: 810033-001 17;
PCB Revision: 2060-810033-001 REV P0;
ROM F/W: 00.0AA
Heads map: 0,1,2,3,4,5,6,7,8,9
Preamp vendor: 0x0000
Preamp revision: 0x0001;

;

HDD with Serial Number: WX31D847KJT4;
Model: WD50EZRX-00MVLB1;
Date: 25 SEP 2014;
DCM: HBRNHVJABB;
Product of: Thailand;
PCB Sticker: 800001-700 A1;
PCB Revision: 2060-800001-000 REV P1;
;

;

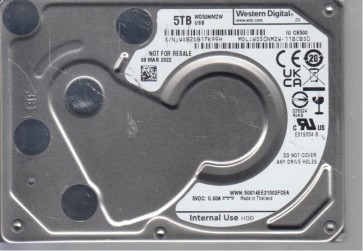

HDD with Serial Number: WXB2DB17K99H;
Model: WD50NMZW-11BCBS0;
Date: 08 MAR 2022;
Product of: Thailand;
PCB Sticker: 810035-000 19;
PCB Revision: 2060-810035-000 REV P0;
;

;

Number of Heads: 10;
Preamp vendor: 0x0000;
Preamp revision: 0x0001;

HDD with Serial Number: WX12D22CE426;
Model: WD50NMZW-11BCBS0;
Date: 23 NOV 2024;
Product of: Thailand;
PCB Sticker: 810035-000 19;
PCB Revision: 2060-810035-000 REV P0;
;

;

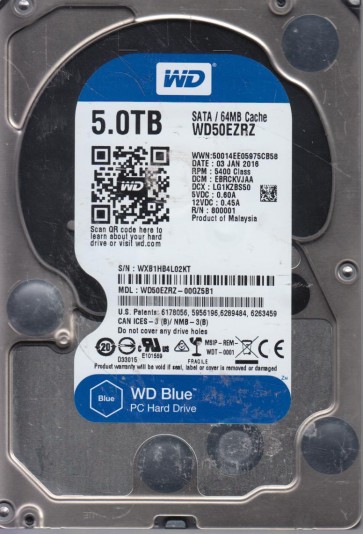

HDD with Serial Number: WXB1HB4L02KT;
Model: WD50EZRZ-00GZ5B1;
Date: 03 JAN 2016;
DCM: EBRCKVJAA;
Product of: Malaysia;
PCB Sticker: 800001-205 AA;
PCB Revision: 2060-800001-005 REV P1;
;

;

Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 0 : 00/0;
1 : 2 : 00/0;
2 : 3 : 00/0;
3 : 4 : 00/0;
4 : 5 : 00/0;
5 : 6 : 00/0;
6 : 7 : 00/0;
7 : 8 : 00/0;
8 : 9 : 00/0;

;

ROM F/W version: 00010084;
Heads map: 0,2,3,4,5,6,7,8,9;
Preamp vendor: 0x0001;
Preamp revision: 0x0003;

;

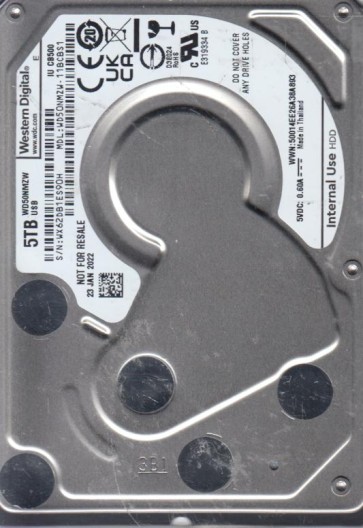

HDD with Serial Number: WX62DB1ES90H;
Model: WD50NMZW-11BCBS1;
Date: 23 JAN 2022;
Product of: Thailand;
PCB Sticker: 810035-100 16;
PCB Revision: 2060-810035-000 REV P0;
;

;

Number of Heads: 10;
Preamp vendor: 0x0000;
Preamp revision: 0x0001;

;

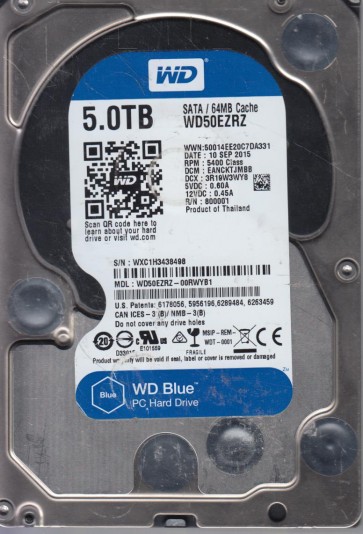

HDD with Serial Number: WXC1H3438498;
Model: WD50EZRZ-00RWYB1;
Date: 10 SEP 2015;
DCM: EANCKTJMBB;
Product of: Thailand;
PCB Sticker: 800001-702 A1;
PCB Revision: 2060-800001-002 REV P1;
;

;

Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 0 : 00/0;
1 : 1 : 00/0;
2 : 2 : 00/0;
3 : 3 : 00/0;
4 : 4 : 00/0;
5 : 5 : 00/0;
6 : 6 : 00/0;
7 : 8 : 00/0;
8 : 9 : 00/0;

;

ROM F/W version: 0001005C;
Heads map: 0,1,2,3,4,5,6,8,9;
Preamp vendor: 0x0001;
Preamp revision: 0x0003;

;

HDD with Serial Number: WX42D717DYYT;
Model: WD50NMZW-11BGRS1;
Date: 17 JAN 2023;
Product of: Thailand;
PCB Sticker: 810067-000 03;
PCB Revision: 2060-810067-000 REV P0;
;

;

HDD with Serial Number: WX11D45HRD6T;
Model: WD50EZRZ-32GZ5B1;
Date: 25 SEP 2015;
DCM: HARCKVJAA;
Product of: Malaysia;
PCB Sticker: 800001-205 AA;
PCB Revision: 2060-800001-005 REV P1;
;

;

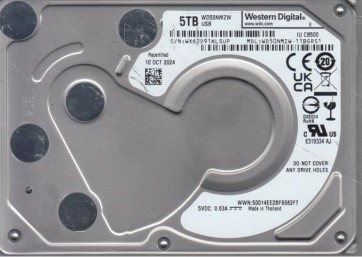

HDD with Serial Number: WX62D91KLSUP;
Model: WD50NMZW-11BGRS1;
Product of: Thailand;
PCB Revision: 2060-810067-000 REV P0;
Date: 10 OCT 2024;
Micro Jogs;
——————————;
LH  : PH  : Micro Jog (Hex/Dec);
——————————;
0   : 0   : 00/0;
1   : 1   : 00/0;
2   : 2   : 00/0;
3   : 3   : 00/0;
4   : 4   : 00/0;
5   : 5   : 00/0;
6   : 6   : 00/0;
7   : 7   : 00/0;
8   : 8   : 00/0;
9   : 9   : 00/0;
;
;
ROM F/W:0000000A;
Heads Map:0,1,2,3,4,5,6,7,8,9;
Preamp vendor:0x0000;
Preamp revision:0x0001;

;

HDD with Serial Number: WX11D943512L;
Model: WD50EFRX-68MYMN1;
Date: 24 OCT 2014;
DCM: HANNHVJAAB;
Product of: Thailand;
PCB Sticker: 800001-500 01PD1;
PCB Revision: 2060-800001-000 REV P1;
;

;
