Category: HDD

HDD with Serial Number: WCASYE224138;
Model: WD5002ABYS-02B1B0;
Date: 27 JUL 2010;
DCM: HGRNHT2MAB;
Product of: Thailand;
PCB Sticker: 2061-701537-U00 10PD1;
PCB Revision: 2060-701537-004 REV A;
;

Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 0 : 9F5/2549;
1 : 1 : 9CD/2509;
2 : 2 : 9F0/2544;
3 : 3 : 9F6/2550;
ROM F/W version……………………. : 0005009N;
Heads map…………………………. : 0,1,2,3;
Preamp vendor……………………. : 0x0000;
Preamp revision………………….. : 0x0002;

;

HDD with Serial Number: WCASY5937682;
Model: WD5002ABYS-01B1B0;
Date: 23 JUN 2009;
DCM: HANNHT2MAB;
Product of: Thailand;
PCB Sticker: 2061-701537-U00 08P;
PCB Revision: 2060-701537-004 REV A;

;

Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 0 : 9DC/2524;
1 : 1 : A16/2582;
2 : 2 : 9D4/2516;
3 : 3 : A01/2561;
ROM F/W version……………………. : 0005008T;
Heads map…………………………. : 0,1,2,3;
Preamp vendor……………………. : 0x0000;
Preamp revision………………….. : 0x0002;

;

HDD with Serial Number: WCASYF175307;
Model: WD5002ABYS-02B1B0;
Date: 10 OCT 2010;
DCM: DBNNHT2MBB;
Product of: Thailand;
PCB Sticker: 2061-701537-U00 10PD1;
PCB Revision: 2060-701537-004 REV A;
;

Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 0 : 9FD/2557;
1 : 1 : 9E6/2534;
2 : 2 : 9F8/2552;
3 : 3 : A10/2576;
ROM F/W version……………………. : 0005009N;
Heads map…………………………. : 0,1,2,3;
Preamp vendor……………………. : 0x0000;
Preamp revision………………….. : 0x0002;

;

HDD with Serial Number: WCASY8029286;
Model: WD5002ABYS-02B1B0;
Date: 10 OCT 2009;
DCM: HHRNHT2MGB;
Product of: Thailand;
PCB Sticker: 2061-701537-U00 09P;
PCB Revision: 2060-701537-004 REV A;
;

Micro Jogs;
——————————;
LH  : PH  : Micro Jog (Hex/Dec);
——————————;
0   : 0   : 9E2/2530;
1   : 1   : A3F/2623;
2   : 2   : 9FB/2555;
3   : 3   : AE4/2788;
ROM F/W version……………………. : 0005009N;
Heads map…………………………. : 0,1,2,3;
Preamp vendor……………………. : 0x0000;
Preamp revision………………….. : 0x0002;
;
;
;

;

HDD with Serial Number: WCASY1312707;
Model: WD5002ABYS-01B1B0;
Date: 29 JUN 2008;
DCM: HANNHT2MBB;
Product of: Thailand;
PCB Sticker: 2061-701537-U00 05P;
PCB Revision: 2060-701537-004 REV A;
;

Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 0 : 9F6/2550;
1 : 1 : 9E0/2528;
2 : 2 : 9FD/2557;
3 : 3 : A2C/2604;
ROM F/W version……………………. : 00050054;
Heads map…………………………. : 0,1,2,3;
Preamp vendor……………………… : 0x0000;
Preamp revision……………………. : 0x0002;

;

HDD with Serial Number: WCASYE834056;
Model: WD5002ABYS-02B1B0;
Date: 06 SEP 2010;
DCM: DGNNHT2MGB;
Product of: Thailand;
PCB Sticker: 2061-701537-U00 10PD1;
PCB Revision: 2060-701537-004 REV A;
;

Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 0 : 975/2421;
1 : 1 : A20/2592;
2 : 2 : 9DB/2523;
3 : 3 : A2F/2607;
ROM F/W version……………………. : 0005009N;
Heads map…………………………. : 0,1,2,3;
Preamp vendor……………………. : 0x0000;
Preamp revision………………….. : 0x0002;

;

HDD with Serial Number: WCASY6250445;
Model: WD5002ABYS-18B1B0;
Date: 14 JUL 2009;
DCM: HANNHT2CBB;
Product of: Thailand;
PCB Sticker: 2061-701537-U00 08P;
PCB Revision: 2060-701537-004 REV A;

;

Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 0 : A20/2592;
1 : 1 : A18/2584;
2 : 2 : A1E/2590;
3 : 3 : A0D/2573;

;

ROM F/W version……………………. : 0005008T;
Preamp vendor……………………… : 0x0000;
Preamp revision……………………. : 0x0002;

;

HDD #1 Specs:;
Serial Number: WCASY3714188;
Model: WD5002ABYS-01B1B0;
Date: 03 FEB 2009;
DCM: HANNHTJMAB;
Product of: Thailand;
PCB Sticker: 2061-701537-U00 06P;
PCB Revision: 2060-701537-004 REV A;

Micro Jogs;
——————————;
LH  : PH  : Micro Jog (Hex/Dec);
——————————;
0   : 0   : 9F8/2552;
1   : 1   : 98E/2446;
2   : 2   : 9ED/2541;
3   : 3   : 987/2439;
ROM F/W version……………………. : 0005008T;
Preamp vendor……………………… : 0x0001;
Preamp revision……………………. : 0x0001;
;
;

;

HDD with Serial Number: WCASYF070548;
Model: WD5002ABYS-02B1B0;
Date: 10 OCT 2010;
DCM: DHNNHT2MBB;
Product of: Thailand;
PCB Sticker: 2061-701537-U00 10PD1;
PCB Revision: 2060-701537-004 REV A;
;

Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 0 : 9F3/2547;
1 : 1 : 9FD/2557;
2 : 2 : 9A2/2466;
3 : 3 : A5F/2655;
ROM F/W version……………………. : 0005009N;
Heads map…………………………. : 0,1,2,3;
Preamp vendor…………………… : 0x0000;
Preamp revision…………………. : 0x0002;

;

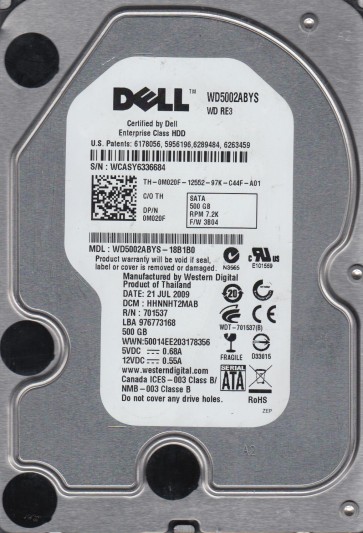

HDD with Serial Number: WCASY6336684;
Model: WD5002ABYS-18B1B0;
Date: 21 JUL 2009;
DCM: HHNNHT2MAB;
Product of: Thailand;
PCB Sticker: 2061-701537-U00 08P;
PCB Revision: 2060-701537-004 REV A;

;

Micro Jogs;
——————————;
LH  : PH  : Micro Jog (Hex/Dec);
——————————;
0   : 0   : 9E9/2537;
1   : 1   : A05/2565;
2   : 2   : 9FE/2558;
3   : 3   : 9E8/2536;

;

ROM F/W version……………………. : 0005008T;
Preamp vendor……………………… : 0x0000;
Preamp revision……………………. : 0x0002;

;
