Category: HDD

HDD #1 Specs:;
SN: WCAS81825260;
Model: WD5001ABYS-18YNA0;
Date: 15 NOV 2007;
DCM: HHNNHT2CH ;
Product of: Thailand;
PCB Sticker: 2061-701477-900 AD;
PCB Revision: 2060-701477-002 REV A;

;

;

HDD #1 Specs:;
Serial Number: WCAS88318552;
Model: WD5001ABYS-01YNA0;
Date: 19 AUG 2008;
DCM: HHNNNT2MHB;
Product of: Thailand;
PCB Sticker: 2061-701477-900 AGD10;
PCB Revision: 2060-701477-002 REV A;

;

 Micro Jogs;
——————————;
LH  : PH  : Micro Jog (Hex/Dec);
——————————;
0   : 2   : A3C/2620;
1   : 3   : A46/2630;
2   : 4   : A38/2616;
3   : 5   : A56/2646;
4   : 6   : A78/2680;
5   : 7   : A32/2610;
ROM F/W version……………………. : 005C002C;
Preamp vendor……………………… : 0x0000;
Preamp revision……………………. : 0x0002;
;
;

;

HDD with Serial Number: WCAS87582572;
Model: WD5001ABYS-01YNA0;
Date: 05 JUN 2008;
DCM: HANNHT2MAB;
Product of: Thailand;
PCB Sticker: 2061-701477-900 AE;
PCB Revision: 2060-701477-002 REV A;

;

Micro Jogs;
——————————;
LH  : PH  : Micro Jog (Hex/Dec);
——————————;
0   : 2   : A72/2674;
1   : 3   : AE2/2786;
2   : 4   : A82/2690;
3   : 5   : A8A/2698;
4   : 6   : A84/2692;
5   : 7   : A94/2708;
ROM F/W version……………………. : 005C002C;
Preamp vendor……………………… : 0x0000;
Preamp revision……………………. : 0x0002;
;
;
;
;

;

HDD #1 Specs:;
Serial Number: WCAS87516348;
Model: WD5001ABYS-01YNA0;
Date: 08 JUN 2008;
DCM: HARNHT2MAB;
Product of: Thailand;
PCB Sticker: 2061-701477-900 AE;
PCB Revision: 2060-701477-002 REV A;

;

Micro Jogs;
——————————;
LH  : PH  : Micro Jog (Hex/Dec);
——————————;
0   : 2   : AB8/2744;
1   : 3   : AE8/2792;
2   : 4   : A84/2692;
3   : 5   : AC0/2752;
4   : 6   : A8E/2702;
5   : 7   : AAA/2730;
ROM F/W version……………………. : 005C002C;
Preamp Vendor……………………… : 0000;
Preamp Rev………………………… : 0002;
;

;

HDD with Serial Number: WCAS87516127;
Model: WD5001ABYS-01YNA0;
Date: 04 JUN 2008;
DCM: HARNNT2MAB;
Product of: Thailand;
PCB Sticker: 2061-701477-900 AG;
PCB Revision: 2060-701477-002 REV A;
;

Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 2 : A18/2584;
1 : 3 : A56/2646;
2 : 4 : 9E6/2534;
3 : 5 : A4A/2634;
4 : 6 : A10/2576;
5 : 7 : A72/2674;
ROM F/W version……………………. : 005C002C;
Heads map…………………………. : 2,3,4,5,6,7;
Preamp vendor……………………. : 0x0000;
Preamp revision………………….. : 0x0002;

;

HDD with Serial Number: WCAS84115939;
Model: WD5001ABYS-01YNA0;
Date: 22 DEC 2007;
DCM: HBRCHT2CAB;
Product of: Thailand;
PCB Sticker: 2061-701477-900 AD;
PCB Revision: 2060-701477-002 REV A;

;

Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 2 : AD6/2774;
1 : 3 : AF4/2804;
2 : 4 : ABA/2746;
3 : 5 : ADC/2780;
4 : 6 : AC4/2756;
5 : 7 : AEA/2794;

;

ROM F/W version……………………. : 005C002C;
Preamp vendor……………………… : 0x0000;
Preamp revision……………………. : 0x0002;

;

HDD with Serial Number: WCAS84115951;

;

Model: WD5001ABYS-01YNA0;
Date: 22 DEC 2007;
DCM: HBRCHT2CAB;
Product of: Thailand;
PCB Sticker: 2061-701477-900 AD;
PCB Revision: 2060-701477-002 REV A;

;

Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 2 : A4C/2636;
1 : 3 : A10/2576;
2 : 4 : A2E/2606;
3 : 5 : A16/2582;
4 : 6 : A3A/2618;
5 : 7 : 9F2/2546;

;

ROM F/W version……………………. : 005C002C;
Preamp vendor……………………… : 0x0000;
Preamp revision……………………. : 0x0002;

;

HDD #1 Specs:;
Serial Number: WCAS87140368;
Model: WD5001ABYS-01YNA0;
Date: 28 APR 2008;
DCM: HHRNNT2MAB;
Product of: Thailand;
PCB Sticker: 2061-701477-900 AE;
PCB Revision: 2060-701477-002 REV A;

;

Micro Jogs;
——————————;
LH  : PH  : Micro Jog (Hex/Dec);
——————————;
0   : 2   : 9F2/2546;
1   : 3   : 9D0/2512;
2   : 4   : A14/2580;
3   : 5   : 9EA/2538;
4   : 6   : A14/2580;
5   : 7   : 9E0/2528;
ROM F/W version……………………. : 005C002C;
Preamp vendor……………………… : 0x0000;
Preamp revision……………………. : 0x0002;
;
;
;
;

;

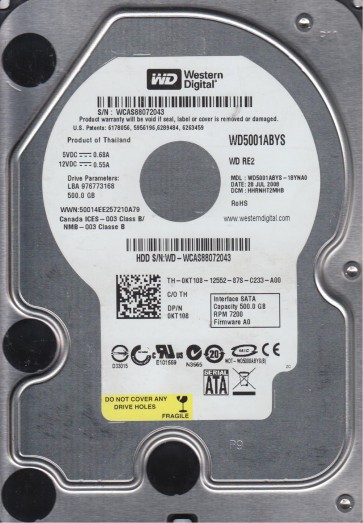

HDD with Serial Number: WCAS88072043;
Model: WD5001ABYS-18NA0;
Date: 28 JUL 2008;
DCM: HHRNHT2MHB;
Product of: Thailand;
PCB Sticker: 2061-701477-900 AGD10;
PCB Revision: 2060-701477-002 REV A;

;

Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 2 : A76/2678;
1 : 3 : ACC/2764;
2 : 4 : AAA/2730;
3 : 5 : AB2/2738;
4 : 6 : A62/2658;
5 : 7 : AD4/2772;

;

ROM F/W version……………………. : 005C002C;
Preamp vendor……………………… : 0x0000;
Preamp revision……………………. : 0x0002;

;

HDD #1 Specs:;
Serial Number: WCAS88160104;
Model: WD5001ABYS-18YNA0;
Date: 09 AUG 2008;
DCM: DANNNT2MBB;
Product of: Thailand;
PCB Sticker: 2061-701477-900 AGD10;
PCB Revision: 2060-701477-002 REV A;

;

Micro Jogs;
——————————;
LH  : PH  : Micro Jog (Hex/Dec);
——————————;
0   : 2   : A90/2704;
1   : 3   : A5A/2650;
2   : 4   : A78/2680;
3   : 5   : A34/2612;
4   : 6   : A72/2674;
5   : 7   : A3E/2622;
Preamp Vendor……………………… : 0000;
Preamp Rev………………………… : 0002;
;
;
;

;

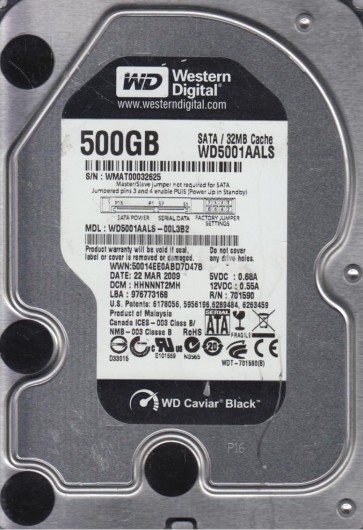

HDD with Serial Number: WMAT00032625;
Model: WD5001AALS-00L3B2;
Date: 22 MAR 2009;
DCM: HHNNNT2MH;
Product of: Malaysia;
PCB Sticker: 2061-701590-M00 AE;
PCB Revision: 2060-701590-000 REV A;
;

Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 0 : A30/2608;
1 : 1 : A5E/2654;
2 : 2 : A48/2632;
;
ROM F/W version: 000500BU;
Preamp vendor: 0x0000;
Preamp revision: 0x0002;

;

HDD with Serial Number: WCASY7107208;
Model: WD5001AALS-00L3B2;
Date: 10 JUN 2013;
DCM: DANNHV2MA;
Product of: Thailand;
PCB Sticker: 2061-701590-M00 AE;
PCB Revision: 2060-701590-000 REV A;
;

Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 0 : 8B6/2230;
1 : 1 : 90A/2314;
2 : 2 : 8B2/2226;
3 : 3 : 882/2178;
ROM F/W version……………………. : 000500F0;
Heads map…………………………. : 0,1,2,3;
Preamp vendor……………………. : 0x0000;
Preamp revision………………….. : 0x0002;

;
