HDD with Serial Number: WCAYU8754506;
Model: WD5001AALS-00F41A0;
Date: 07 DEC 2010;
DCM: HBRNHTJMGN;
Product of: Thailand;
PCB Sticker: 2061-771640-Q03 AB;
PCB Revision: 2060-771640-003 rev p1;
;
Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 0 : C8F/3215;
1 : 1 : CE0/3296;
;
ROM F/W version……………………. : 00000026;
Preamp vendor……………………… : 0x0001;
Preamp revision……………………. : 0x0001;
;
HDD #1 Specs:;
Serial Number: WCANU1651687;
Model: WD5000YS-18MPB0;
Date: 15 DEC 2006;
DCM: HCACAJAHB;
Product of: Thailand;
PCB Sticker: 2061-701383-E00 AJ;
PCB Revision: 2060-701383-001 REV A;
;
Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 0 : 7D6/2006;
1 : 1 : 7D4/2004;
2 : 2 : 81A/2074;
3 : 3 : 816/2070;
4 : 4 : 7F4/2036;
5 : 5 : 7EA/2026;
6 : 6 : 814/2068;
7 : 7 : 7FA/2042;
;
Preamp Vendor……………………… : 0001;
Preamp Rev………………………… : 0002;
;
;

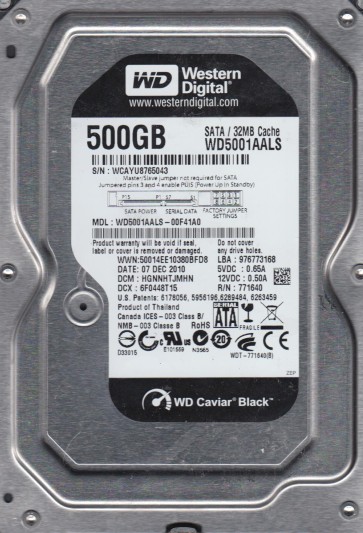

HDD with Serial Number: WCAYU8765043;
Model: WD5001AALS-00F41A0;
Date: 07 DEC 2010;
DCM: HGNNHTJMHN;
Product of: Thailand;
PCB Sticker: 2061-771640-Q03 AB;
PCB Revision: 2060-771640-003 REV P1;
;
Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 0 : C80/3200;
1 : 1 : C6D/3181;
ROM F/W version……………………. : 00000026;
Preamp vendor……………………… : 0x0001;
Preamp revision……………………. : 0x0001;
;
;
;
;
;
HDD with Serial Number: WCANU2022067;
Model: WD5000YS-18MPB0;
Date: 26 FEB 2007;
DCM: HCHCAJAHB;
Product of: Thailand;
PCB Sticker: 2061-701383-E00 AJ;
PCB Revision: 2060-701383-001 REV A;
;
Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 0 : 77A/1914;
1 : 1 : 7B2/1970;
2 : 2 : 7B8/1976;
3 : 3 : 7D2/2002;
4 : 4 : 796/1942;
5 : 5 : 7E4/2020;
6 : 6 : 79C/1948;
7 : 7 : 7F8/2040;
ROM F/W version……………………. : 072CE;
Heads map…………………………. : 0,1,2,3,4,5,6,7;
Preamp vendor……………………. : 0x0001;
Preamp revision………………….. : 0x0002;
;
HDD with Serial Number: WCAYU8907790;
Model: WD5001AALS-00F41A0;
Date: 07 DEC 2010;
DCM: HHRNHTJMHN;
Product of: Thailand;
PCB Sticker: 2061-771640-Q03 01P;
PCB Revision: 2060-771640-003 REV P1;
;
Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 0 : CAF/3247;
1 : 1 : C77/3191;
ROM F/W version……………………. : 00000026;
Preamp vendor……………………… : 0x0001;
Preamp revision……………………. : 0x0001;
;
;
;
;
;

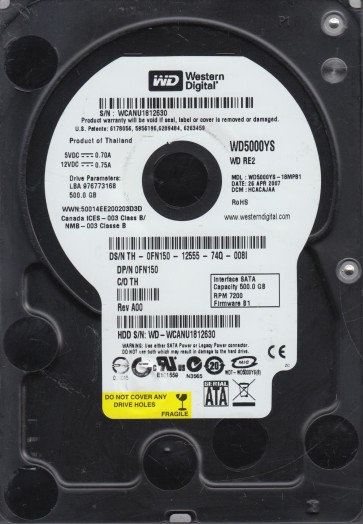

HDD with Serial Number: WCANU1812630;
Model: WD5000YS-18MPB1;
Date: 26 APR 2007;
DCM: HCACAJAA;
Product of: Thailand;
PCB Sticker: 2061-701383-E00 AJ;
PCB Revision: 2060-701383-001 REV A;
Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 0 : 78E/1934;
1 : 1 : 7BA/1978;
2 : 2 : 724/1828;
3 : 3 : 770/1904;
4 : 4 : 744/1860;
5 : 5 : 7A4/1956;
6 : 6 : 76C/1900;
7 : 7 : 7CA/1994;
ROM F/W version……………………. : 072QE;
Heads map…………………………. : 0,1,2,3,4,5,6,7;
Preamp vendor……………………. : 0x0001;
Preamp revision………………….. : 0x0002;
;
;
;
;
;

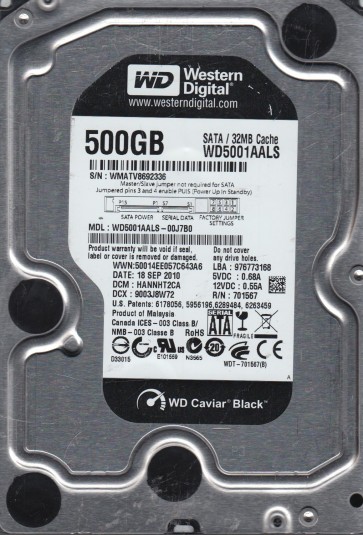

HDD with Serial Number: WMATV8692336;
Model: WD5001AALS-00J7B0;
Date: 18 SEP 2010;
DCM: HANNHT2CA;
Product of: Malaysia;
PCB Sticker: 2061-701567-400 AG;
PCB Revision: 2060-701567-000 REV A;
;
Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 4 : A84/2692;
1 : 5 : A6C/2668;
2 : 6 : A95/2709;
3 : 7 : A79/2681;
ROM F/W version……………………. : 0009009W;
Heads map…………………………. : 4,5,6,7;
Preamp vendor……………………… : 0x0000;
Preamp revision……………………. : 0x0003;
HDD with Serial Number: WMATV8648028;
Model: WD5001AALS-00J7B0;
Date: 19 SEP 2010;
DCM: HANNHT2CA;
Product of: Malaysia;
PCB Sticker: 2061-701567-400 AG;
PCB Revision: 2060-701567-000 REV A;
;
Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 3 : 9FA/2554;
1 : 4 : 9DA/2522;
2 : 5 : 9BB/2491;
3 : 6 : 9FD/2557;
ROM F/W version……………………. : 0009009W;
Heads map…………………………. : 3,4,5,6;
Preamp vendor…………………….. : 0x0000;
Preamp revision……………………. : 0x0003;
;
HDD with Serial Number: WMANU1155224;
Model: WD5000YS-01MPB0;
Date: 24 MAR 2006;
DCM: HBHCAJAH;
Product of: Malaysia;
PCB Sticker: 2061-701383-E00 AC;
PCB Revision: 2060-701383-001 REV A;
;
Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 0 : 8B8/2232;
1 : 1 : 864/2148;
2 : 2 : 7D2/2002;
3 : 3 : 896/2198;
4 : 4 : 7C8/1992;
5 : 5 : 8E6/2278;
6 : 6 : 858/2136;
7 : 7 : 89A/2202;
ROM F/W version……………………. : 070EE;
Heads map…………………………. : 0,1,2,3,4,5,6,7;
Preamp vendor……………………… : 0x0001;
Preamp revision……………………. : 0x0002;
;

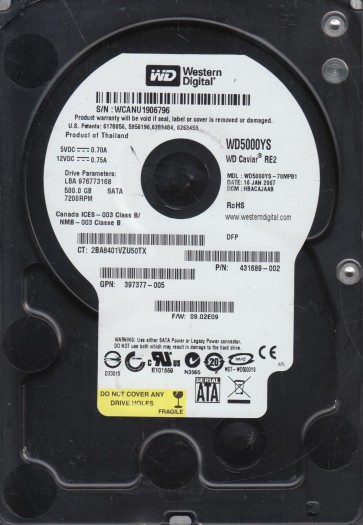

HDD with Serial Number: WCANU1906796;
Model: WD5000YS-70MPB1;
Date: 16 JAN 2007;
DCM: HBACAJAAB;
Product of: Thailand;
PCB Sticker: 2061-701383-E00 AJ;
PCB Revision: 2060-701383-001 REV A;
;
Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 0 : 826/2086;
1 : 1 : 7FA/2042;
2 : 2 : 84A/2122;
3 : 3 : 808/2056;
4 : 4 : 7E6/2022;
5 : 5 : 7EE/2030;
6 : 6 : 802/2050;
7 : 7 : 7F6/2038;
ROM F/W version……………………. : 072CE;
Heads map…………………………. : 0,1,2,3,4,5,6,7;
Preamp vendor……………………. : 0x0001;
Preamp revision………………….. : 0x0002;
;
;
;
HDD with Serial Number: WCANU1943712;
Model: WD5000YS-70MPB1;
Date: 15 JAN 2007;
DCM: HBACAJAAB;
Product of: Thailand;
PCB Sticker: 2061-701383-E00 AJ;
PCB Revision: 2060-701383-001 REV A;
;
Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 0 : 674/1652;
1 : 1 : 7C6/1990;
2 : 2 : 6A4/1700;
3 : 3 : 7EC/2028;
4 : 4 : 6CA/1738;
5 : 5 : 81E/2078;
6 : 6 : 6E2/1762;
7 : 7 : 7DA/2010;
ROM F/W version……………………. : 072CE;
Heads map…………………………. : 0,1,2,3,4,5,6,7;
Preamp vendor……………………. : 0x0001;
Preamp revision………………….. : 0x0002;
;
;
;
;
HDD with Serial Number: WMATV7768436;
Model: WD5001AALS-00J7B0;
Date: 17 JUL 2010;
DCM: HBNNNT2CB;
Product of: Malaysia;
PCB Sticker: 2061-701567-400 AG;
PCB Revision: 2060-701567-000 REV A;
;
Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 3 : A06/2566;
1 : 4 : 9F6/2550;
2 : 5 : A00/2560;
3 : 6 : 9A2/2466;
;
ROM F/W version: 0009009W;
Preamp vendor: 0x0000;
Preamp revision: 0x0003;
;
