WD5000LPVX-16V0TT3, DCM EHKTJVB, Western Digital 500GB SATA 2.5 Hard Drive

HDD with Serial Number: WXD1E64ES6KP;
Model: WD5000LPVX-16V0TT3;
Date: 17 SEP 2014;
DCM: EHKTJVB;
Product of: Malaysia;
PCB Sticker: 771959-000 AH;
PCB Revision: 2060-771959-000 REV A;
;

Micro Jogs;
——————————;
LH  : PH  : Micro Jog (Hex/Dec);
——————————;
0   : 0   : 00/0;
1   : 1   : 00/0;
ROM F/W version……………………. : 0006003T;
Heads map…………………………. : 0,1;
Preamp vendor……………………. : 0x0001;
Preamp revision………………….. : 0x0001;

;

WD5000LPVX-16V0TT3, DCM EVKT2VB, Western Digital 500GB SATA 2.5 Hard Drive

HDD with Serial Number: WXB1E643E04S;
Model: WD5000LPVX-16V0TT3;
Date: 27 JUL 2014;
DCM: EVKT2VB;
Product of: Malaysia;
PCB Sticker: 771959-000 AG;
PCB Revision: 2060-771959-000 REV A;
;

Micro Jogs;
——————————;
LH  : PH  : Micro Jog (Hex/Dec);
——————————;
0   : 0   : 00/0;
1   : 1   : 00/0;
ROM F/W version……………………. : 0006003T;
Heads map…………………………. : 0,1;
Preamp vendor……………………. : 0x0000;
Preamp revision………………….. : 0x0002;

HDD with Serial Number: WXB1E642KP6M;
Model: WD5000LPVX-16V0TT3;
Date: 27 JUL 2014;
DCM: EVKT2VB;
Product of: Malaysia;
PCB Sticker: 771959-000 AG;
PCB Revision: 2060-771959-000 REV A;
;

Micro Jogs;
——————————;
LH  : PH  : Micro Jog (Hex/Dec);
——————————;
0   : 0   : 00/0;
1   : 1   : 00/0;
ROM F/W version……………………. : 0006003T;
Heads map…………………………. : 0,1;
Preamp vendor……………………. : 0x0000;
Preamp revision………………….. : 0x0002;

;

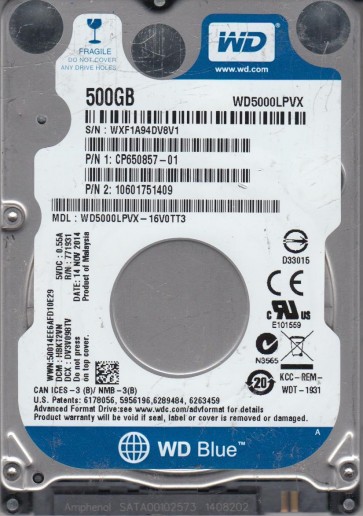

WD5000LPVX-16V0TT3, DCM HBKT2VN, Western Digital 500GB SATA 2.5 Hard Drive

HDD with Serial Number: WXF1A94DV8V1;
Model: WD5000LPVX-16V0TT3;
Date: 14 NOV 2014;
DCM: HBKT2VN;
Product of: Malaysia;
PCB Sticker: 771959-000 AH;
PCB Revision: 2060-771959-000 REV A;
;

Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 0 : 00/0;
1 : 1 : 00/0;
ROM F/W version……………………. : 0006003T;
Heads map…………………………. : 0,1;
Preamp vendor……………………. : 0x0000;
Preamp revision………………….. : 0x0002;

;

WD5000LPVX-16V0TT3, DCM HVKTJBN, Western Digital 500GB SATA 2.5 Hard Drive

HDD with Serial Number: WXF1A94DVYR0;
Model: WD5000LPVX-16V0TT3;
Date: 13 NOV 2014;
DCM: HVKTJBN;
Product of: Malaysia;
PCB Sticker: 771959-000 AH;
PCB Revision: 2060-771959-000 REV A;
;

Micro Jogs;
——————————;
LH  : PH  : Micro Jog (Hex/Dec);
——————————;
0   : 0   : 00/0;
1   : 1   : 00/0;
ROM F/W version……………………. : 0006003T;
Heads map…………………………. : 0,1;
Preamp vendor……………………. : 0x0001;
Preamp revision………………….. : 0x0001;

;

WD5000LPVX-22V0TT0, DCM DAKTJAN, Western Digital 500GB SATA 2.5 Hard Drive

HDD with Serial Number: WX31E73KWN11;
Model: WD5000LPVX-22V0TT0;
Date: 04 OCT 2013;
DCM: DAKTJAN;
Product of: Malaysia;
PCB Sticker: 771959-000 05P;
PCB Revision: 2060-771959-000 REV P2;
;

ROM F/W : 00060016;
Heads map 0,1;
Preamp Vendor: x001;
Preamp revision: x001;
;
Micro Jogs;
——————————;
LH  : PH  : Micro Jog (Hex/Dec);
——————————;
0   : 0   : 00/0;
1   : 1   : 00/0

;

WD5000LPVX-22V0TT0, DCM DHKTJAB, Western Digital 500GB SATA 2.5 Hard Drive

HDD with Serial Number: WX21EA4AS4FA;
Model: WD5000LPVX-22V0TT0;
Date: 30 DEC 2014;
DCM: DHKTJAB;
Product of: Malaysia;
PCB Sticker: 771959-000 AH;
PCB Revision: 2060-771959-000 REV A;
;

Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 0 : 00/0;
1 : 1 : 00/0;
ROM F/W version……………………. : 0006004P;
Heads map…………………………. : 0,1;
Preamp vendor……………………. : 0x0001;
Preamp revision………………….. : 0x0001;

;

WD5000LPVX-22V0TT0, DCM DHMT2AN, Western Digital 500GB SATA 2.5 Hard Drive

HDD with Serial Number: WX81EC46MF9X;
Model: WD5000LPVX-22V0TT0;
Date: 28 AUG 2015;
DCM: DHMT2AN;
Product of: Malaysia;
PCB Sticker: 771959-000 AH;
PCB Revision: 2060-771959-000 REV A;
;

Micro Jogs;
——————————;
LH  : PH  : Micro Jog (Hex/Dec);
——————————;
0   : 0   : 00/0;
1   : 1   : 00/0;
ROM F/W version……………………. : 0006006A;
Heads map…………………………. : 0,1;
Preamp vendor……………………. : 0x0000;
Preamp revision………………….. : 0x0002;

;

WD5000LPVX-22V0TT0, DCM DHMTJABB, Western Digital 500GB SATA 2.5 Hard Drive

HDD with Serial Number: WX91E13XUS94;
Model: WD5000LPVX-22V0TT0;
Date: 13 APR 2013;
DCM: DHMTJABB;
Product of: Thailand;
PCB Sticker: 771959-000 05P;
PCB Revision: 2060-771959-000 REV P2;
Micro Jogs;
——————————;
LH  : PH  : Micro Jog (Hex/Dec);
——————————;
0   : 0   : 00/0;
1   : 1   : 00/0;
ROM F/W version……………………. : 0005001G;
Heads map…………………………. : 0,1;
Preamp vendor……………………. : 0x0001;
Preamp revision………………….. : 0x0001;

;

WD5000LPVT-80G33T2, DCM HHCTJHBB, Western Digital 500GB SATA 2.5 Hard Drive

HDD with Serial Number: WXA1A92K5972;
Model: WD5000LPVT-80G33T2;
Date: 15 NOV 2012;
DCM: HHCTJHBB;
Product of: Thailand;
PCB Sticker: 771852-201 AC;
PCB Revision: 2060-771852-001 REV A;
;

Micro Jogs;
——————————;
LH  : PH  : Micro Jog (Hex/Dec);
——————————;
0   : 0   : 108D/4237;
1   : 1   : 1045/4165;
ROM F/W version……………………. : 0002004P;
Heads map…………………………. : 0,1;
Preamp vendor……………………. : 0x0001;
Preamp revision………………….. : 0x0001;

;

WD5000LPVX-00V0TT0, DCM HAMTJBB, Western Digital 500GB SATA 2.5 Hard Drive

HDD with Serial Number: WX51AB5K0634;
Model: WD5000LPVX-00V0TT0;
Date: 13 APR 2016;
DCM: HAMTJBB;
Product of: Malaysia;
PCB Sticker: 771959-000 AH;
PCB Revision: 2060-771959-000 REV A;
;

Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 0 : 00/0;
1 : 1 : 00/0;
;
ROM F/W version: 0006006A;
Heads map: 0,1;
Preamp vendor: 0x0001;
Preamp revision: 0x0001;

;
