Category: HDD

HDD with Serial Number: WMAM9CVK7801;
Model: WD800JD-08MSA1;
Date: 13 AUG 2008;
DCM: DSCANTJCA;
Product of: Malaysia;
PCB Sticker: 2061-701335-Q00 AC;
PCB Revision: 2060-701335-006 REV A;
;

——————————;
LH  : PH  : Micro Jog (Hex/Dec);
——————————;
0   : 0   : 46C/1132;
1   : 1   : 482/1154;
;
ROM F/W Version: 408UE;
Heads map: 0,1;
Preamp vendor: 0x0001;
Preamp revision: 0x0004

;

HDD #1 Specs:;
SN: WMAM9AT00189;
Model: WD800JD-08MSA1;
Date: 03 AUG 2006;
DCM: DSCANTJEA ;
Product of: Malaysia;
PCB Sticker: 2061-701335-E00 AE;
PCB Revision: 2060-701335-005 REV A;

;

Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 0 : 43E/1086;
1 : 1 : 45A/1114;

;

ROM F/W version……………………. : 408NE;
Preamp vendor……………………… : 0x0001;
Preamp revision……………………. : 0x0004;

;

Specifications:;
SN WMAM9NX43624;
Model WD800JD-08MSA1;
Date 06 MAY 2007;
DCM DSCHYTJEA ;
Product of Malaysia;
PCB Sticker: 2061-701335-E00 AL;
PCB Revision: 2060-701335-005 REV A;

;

ROM F/W version……………………. : 408UE;
Preamp vendor……………………… : 0x0001;
Preamp revision……………………. : 0x0004;
Heads map…………………………. : 0,1;

;

Micro Jogs;
——————————;
LH  : PH  : Micro Jog (Hex/Dec);
——————————;
0   : 0   : 48A/1162;
1   : 1   : 482/1154;
;
;

;

Specifications:;
SN WMAM9DZ17441;
Model WD800JD-08MSA1;
Date 05 OCT 2006;
DCM HSBANTJCA ;
Product of Malaysia;
PCB Sticker: 2061-701335-E00 AF;
PCB Revision: 2060-701335-005 REV A;

;

ROM F/W version……………………. : 408RE;
Preamp vendor……………………… : 0x0001;
Preamp revision……………………. : 0x0004;
Heads map…………………………. : 0,1;

;

Micro Jogs;
——————————;
LH  : PH  : Micro Jog (Hex/Dec);
——————————;
0   : 0   : 48A/1162;
1   : 1   : 446/1094;
;
;

HDD with Serial Number: WMAM9DDR9028;
Model: WD800JD-08MSA1;
Date: 09 OCT 2008;
DCM: HSBANTJCA;
Product of: Malaysia;
PCB Sticker: 2061-701335-T00 AA;
PCB Revision: 2060-701335-007 REV A;
;

Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 0 : 468/1128;
1 : 1 : 4E8/1256;
ROM F/W version……………………. : 408UE;
Heads map…………………………. : 0,1;
Preamp vendor……………………… : 0x0001;
Preamp revision……………………. : 0x0004;

;

HDD with Serial Number: WMAM9NV02787;
Model: WD800JD-08MSA1;
Date: 12 MAY 2007;
DCM: HSCHYTJEH;
Product of: Malaysia;
PCB Sticker: 2061-701355-E00 AF;
PCB Revision: 2060-701335-005 REV A;
;

;

Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 0 : 4BE/1214;
1 : 1 : 45A/1114;

;

ROM F/W version: 40.8UE;
Heads map: 0,1;
Preamp vendor: 0x0001;
Preamp revision: 0x0004;

;

HDD #1 Specs:;
SN: WMAM94316799;
Model: WD800JD-19JNA0;
Date: 12 JAN 2005;
DCM: HSCHCTJCH ;
Product of: Malaysia;
PCB Sticker: 2061-001293-B00 AH;
PCB Revision: 2060-001293-001 REV A;

;

Micro Jogs;
——————————;
LH  : PH  : Micro Jog (Hex/Dec);
——————————;
0   : 0   : 482/1154;
1   : 1   : 44C/1100;
;

;

ROM F/W version……………………. : 0887C;
Preamp vendor……………………… : 0x0001;
Preamp revision……………………. : 0x0003;

;

HDD #5 Specs:;
SN: WMAJ95131559;
Model: WD800JD-22HKA0;
Date: 23 JUL 2004;
DCM: HSCBCVJAA ;
Product of: Malaysia;
PCB Sticker: 2061-001252-000 AH;
PCB Revision: 2060-001252-000 REV A;

;

;
Micro Jogs;
——————————;
LH  : PH  : Micro Jog (Hex/Dec);
——————————;
0   : 0   : 425/1061;
1   : 1   : 445/1093;
ROM F/W version……………………. : 13DAG;
Preamp vendor……………………… : 0x0001;
Preamp revision……………………. : 0x0003;
;
;
;
;

;

HDD with Serial Number: WMAM94978309;
Model: WD800JD-22JNA0;
Date: 28 FEB 2005;
DCM: HSBHNTJCH;
Product of: Malaysia;
PCB Sticker: 2061-001293-B00 AH;
PCB Revision: 2060-001293-001 REV A;
;

Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 0 : 450/1104;
1 : 1 : 466/1126;

;

ROM F/W version: 088CC;
Preamp vendor: 0x0001;
Preamp revision: 0x0003;

;

HDD with Serial Number: WMAM93458121;
Model: WD800JD-00JNA0;
Date: 23 DEC 2004;
DCM: HSBHNTJCH;
Product of: Malaysia;
PCB Sticker: 2061-001293-B00 AG;
PCB Revision: 2060-001293-000 REV A;

;

Micro Jogs;
——————————;
LH  : PH  : Micro Jog (Hex/Dec);
——————————;
0   : 0   : 446/1094;
1   : 1   : 450/1104;
ROM F/W version……………………. : 059DC;
Preamp vendor……………………… : 0x0001;
Preamp revision……………………. : 0x0003;
;
;
;
;

;

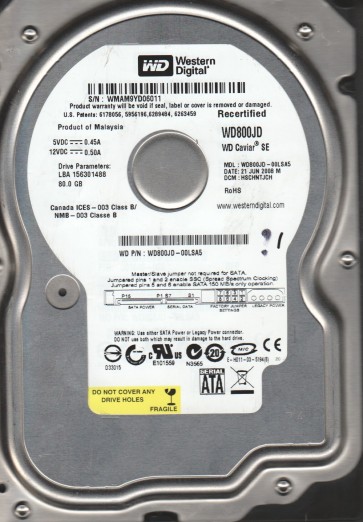

Specifications:;
SN WMAM9YD06011;
Model WD800JD-00LSA5;
Date 21 JUN 2008 M;
DCM HSCHNTJCH ;
Product of Malaysia;
PCB Sticker: 2061-701335-E00 AM;
PCB Revision: 2060-701335-005 REV A;

;

;
