Category: HDD

HDD with Serial Number: WMAM9A257826;
Model: WD800JD-08LSA0;
Date: 24 JUL 2005;
DCM: DSBHCTJCH;
Product of: Malaysia;
PCB Sticker: 2061-701335-A00 AC;
PCB Revision: 2060-701335-003 REV B;

;

Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 0 : 438/1080;
1 : 1 : 45A/1114;

;

ROM version……………………….. : 06.BGD;
Preamp vendor……………………… : 0x0001;
Preamp revision……………………. : 0x0004;

;

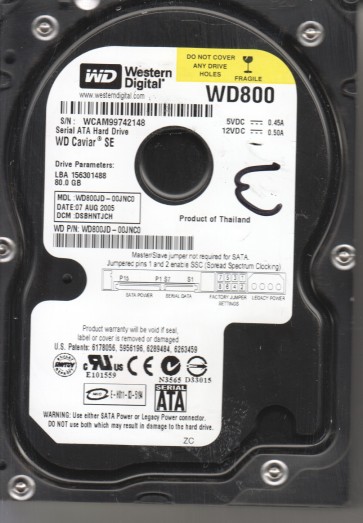

HDD #1 Specs:;
SN: WCAM99742148;
Model: WD800JD-00JNC0;
Date: 07 AUG 2005;
DCM: DSBHNTJCH ;
Product of: Thailand;
PCB Sticker: 2061-701293-B00 AN;
PCB Revision: 2060-701293-001 REV A;

;

;

HDD with Serial Number: WMAM9Z817592;
Model: WD800JD-00MSA1;
Date: 09 JUL 2006;
DCM: DSBANTJCA;
Product of: Malaysia;
PCB Sticker: 2061-701335-E00 AE;
PCB Revision: 2060-701335-005 REV A;

;

Micro Jogs;
——————————;
LH  : PH  : Micro Jog (Hex/Dec);
——————————;
0   : 0   : 49A/1178;
1   : 1   : 44E/1102;

;

ROM F/W version……………………. : 109DE;
Preamp Vendor……………………… : 0001;
Preamp Rev………………………… : 0004;

;

HDD #1 Specs:;
SN: WCAM99814576;
Model: WD800JD-00JNC0;
Date: 16 AUG 2005;
DCM: DSCHYTJCH ;
Product of: Thailand;
PCB Sticker: 2061-701293-B00 AN;
PCB Revision: 2060-701293-001 REV A;

;

Micro Jogs;
——————————;
LH  : PH  : Micro Jog (Hex/Dec);
——————————;
0   : 0   : 44C/1100;
1   : 1   : 426/1062;
ROM F/W version……………………. : 0892C;
Preamp vendor……………………… : 0x0001;
Preamp revision……………………. : 0x0004;
;
;
;
;

;

HDD #1 Specs:;
SN: WMAM9AR74293;
Model: WD800JD-00MSA1;
Date: 05 AUG 2006;
DCM: DSBANTJCH ;
Product of: Malaysia;
PCB Sticker: 2061-701335-E00 AE;
PCB Revision: 2060-701335-005 REV A;

;

Micro Jogs;
——————————;
LH  : PH  : Micro Jog (Hex/Dec);
——————————;
0   : 0   : 49A/1178;
1   : 1   : 4A0/1184;
ROM F/W version……………………. : 101DE;
Preamp vendor……………………… : 0x0001;
Preamp revision……………………. : 0x0004;
;
;

;

HDD #1 Specs:;
SN: WMAM9AR74317;
Model: WD800JD-00MSA1;
Date: 05 AUG 2006;
DCM: DSBANTJCH ;
Product of: Malaysia;
PCB Sticker: 2061-701335-E00 AE;
PCB Revision: 2060-701335-005 REV A;

;

Micro Jogs;
——————————;
LH  : PH  : Micro Jog (Hex/Dec);
——————————;
0   : 0   : 47C/1148;
1   : 1   : 4D8/1240;
ROM F/W version……………………. : 101DE;
Preamp vendor……………………… : 0x0001;
Preamp revision……………………. : 0x0004;
;
;
;
;

;

HDD #1 Specs:;
SN: WCAM99794955;
Model: WD800JD-00JNC0;
Date: 05 AUG 2005;
DCM: ESBHNTJAH ;
Product of: Thailand;
PCB Sticker: 2061-701293-B00 AN;
PCB Revision: 2060-701293-001 REV A;

;

;
Micro Jogs;
——————————;
LH  : PH  : Micro Jog (Hex/Dec);
——————————;
0   : 0   : 4B8/1208;
1   : 1   : 490/1168;
ROM F/W version……………………. : 0892C;
Preamp vendor……………………… : 0x0001;
Preamp revision……………………. : 0x0004;
;
;
;
;

;

HDD #1 Specs:;
SN: WMAM9R656427;
Model: WD800JD-00MSA1;
Date: 05 AUG 2006;
DCM: DSCAYTJCA ;
Product of: Malaysia;
PCB Sticker: 2061-701335-E00 AE;
PCB Revision: 2060-701335-005 REV A ;

;

Micro Jogs;
——————————;
LH  : PH  : Micro Jog (Hex/Dec);
——————————;
0   : 0   : 474/1140;
1   : 1   : 486/1158;
ROM F/W version……………………. : 109DE;
Preamp vendor……………………… : 0x0001;
Preamp revision……………………. : 0x0004;
;
;
;
;

;

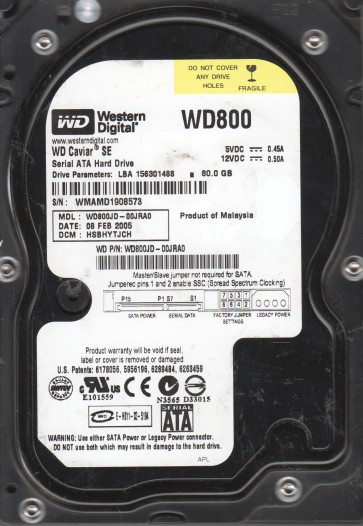

Specifications;
SN: WMAMD1908573;
Model: WD800JD-00JRA0;
Date: 08 FEB 2005;
DCM: HSBHYTJCH ;
Product of: Malaysia;
PCB Sticker: 2061-001293-B00 AH;
PCB Revision: 2060-001293-001 REV A;

;

Micro Jogs;
——————————;
LH  : PH  : Micro Jog (Hex/Dec);
——————————;
0   : 0   : 450/1104;
1   : 1   : 470/1136;
ROM F/W version……………………. : 0887C;
Preamp vendor……………………… : 0x0001;
Preamp revision……………………. : 0x0003;
;
;
;
;
;
;

;

HDD with Serial Number: WMAM9LM18850;
Model: WD800JD-00MSA1;
Date: 29 MAR 2007;
DCM: ESBACTJCH;
Product of: Malaysia;
PCB Sticker: 2061-701335-E00 AL;
PCB Revision: 2060-701335-005 REV A;
;

——————————;
LH  : PH  : Micro Jog (Hex/Dec);
——————————;
0   : 0   : 478/1144;
1   : 1   : 4AA/1194;
;
ROM F/W Version: 109KE;
Heads map: 0,1;
Preamp vendor: 0x0001;
Preamp revision: 0x0004

;

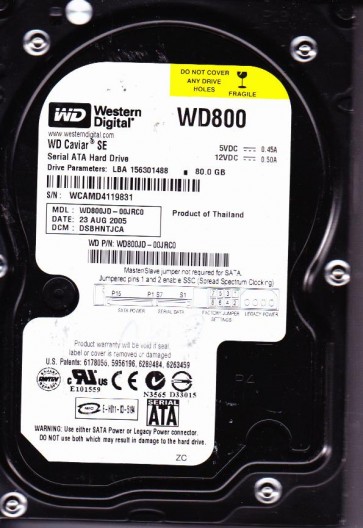

Specifications:;
WD800JD-00JRC0;
DATE 23 AUG 2005;
DCM DSBHNTJCA;
SN WCAMD4119831;
Product of Thailand;
PCB Sticker: 2061-701293-B00 AN;
PCB Revision: 2060-701293-001 REV A;

;
