WD5000LPLX-60ZNTT0, DCM EAOTJAK, Western Digital 500GB SATA 2.5 Hard Drive

HDD with Serial Number: WXT1E847HWAY;
Model: WD5000LPLX-60ZNTT0;
Date: 27 APR 2015;
DCM: EAOTJAK;
Product of: Malaysia;
PCB Sticker: 800018-601 02P;
PCB Revision: 2060-800018-001 REV P1;

;

Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 0 : 00/0;
1 : 1 : 00/0;
;
ROM F/W version……………………. : 0005002C;
Preamp vendor……………………… : 0x0001;
Preamp revision……………………. : 0x0002;

;

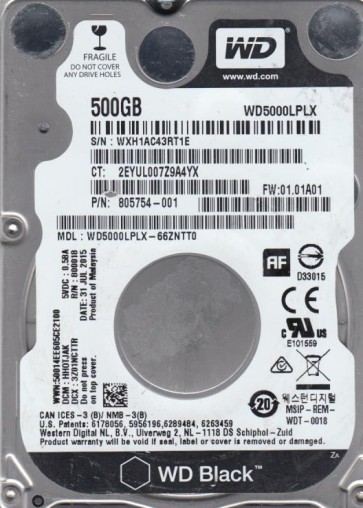

WD5000LPLX-66ZNTT0, DCM HHOTJAK, Western Digital 500GB SATA 2.5 Hard Drive

HDD with Serial Number: WXH1AC43RT1E;
Model: WD5000LPLX-66ZNTT0;
Date: 31 JUL 2015;
DCM: HHOTJAK;
Product of: Malaysia;
PCB Sticker: 800018-601 02P;
PCB Revision: 2060-800018-001 REV P1;

;

Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 0 : 00/0;
1 : 1 : 00/0;

;

ROM F/W version:005003P;
Heads map: 0,1;
Preamp vendor: 0x0001;
Preamp revision: 0x0002;

;

WD5000LPLX-00ZNTT0, DCM HAOTJBB, Western Digital 500GB SATA 2.5 Hard Drive

HDD with Serial Number: WX91A9565ANV;
Model: WD5000LPLX-00ZNTT0;
Date: 11 DEC 2017;
DCM: HAOTJBB;
Product of: Malaysia;
PCB Sticker: 800018-601 A2;
PCB Revision: 2060-800018-001 REV P1;
;

;

WD5000LPLX-60ZNTT0, DCM HVOTJVK, Western Digital 500GB SATA 2.5 Hard Drive

HDD with Serial Number: WXF1A35R97TR;
Model: WD5000LPLX-60ZNTT0;
Date: 21 MAY 2015;
DCM: HVOTJVK;
Product of: Malaysia;
PCB Sticker: 800018-601 02P;
PCB Revision: 2060-800018-001 REV P1;
;

Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 0 : 00/0;
1 : 1 : 00/0;
ROM F/W version……………………. : 0005002S;
Heads map…………………………. : 0,1;
Preamp vendor……………………. : 0x0001;
Preamp revision………………….. : 0x0002;

;

WD5000LPLX-75ZNTT0, DCM , Western Digital 500GB SATA 2.5 Hard Drive

HDD with Serial Number: WX11A298NA4U;
Model: WD5000LPLX-75ZNTT0;
Date: 27 FEB 2019;
Product of: Malaysia;
PCB Sticker: 800018-801 AC;
PCB Revision: 2060-800018-001 REV P1;
;

Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 0 : 00/0;
1 : 1 : 00/0;

;

ROM F/W: 0005005M;
Heads map: 0,1;
Preamp vendor: 0x0000;
Preamp revision: 0x0002;

;

WD5000LPLX-00ZNTT0, DCM HAOTJBK, Western Digital 500GB SATA 2.5 Hard Drive

HDD with Serial Number: WXF1A35K042D;
Model: WD5000LPLX-00ZNTT0;
Date: 23 MAY 2015;
DCM: HAOTJBK;
Product of: Malaysia;
PCB Sticker: 800018-601 02P;
PCB Revision: 2060-800018-001 REV P1;

Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 0 : 00/0;
1 : 1 : 00/0;
;
ROM F/W version……………………. : 0005002S;
Preamp vendor……………………… : 0x0001;
Preamp revision……………………. : 0x0002;

;

WD5000LPLX-60ZNTT1, DCM EHNTJHK, Western Digital 500GB SATA 2.5 Hard Drive

HDD with Serial Number: WXJ1EA6EL2MT;
Model: WD5000LPLX-60ZNTT1;
Date: 19 DEC 2016;
DCM: EHNTJHK;
Product of: Malaysia;
PCB Sticker: 800018-801 A3;
PCB Revision: 2060-800018-001 REV P1;
;

Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 0 : 00/0;
1 : 1 : 00/0;
ROM F/W version……………………. : 0005005J;
Heads map…………………………. : 0,1;
Preamp vendor……………………… : 0x0001;
Preamp revision……………………. : 0x0002;

;

WD5000LPLX-75ZNTT0, DCM EBOTJBK, Western Digital 500GB SATA 2.5 Hard Drive

HDD with Serial Number: WXF1A35R6SL3;
Model: WD5000LPLX-75ZNTT0;
Date: 22 MAY 2015;
DCM: EBOTJBK;
Product of: Malaysia;
PCB Sticker: 800016-601 02P;
PCB Revision: 2060-800018-001 REV P1;
;

ROM F/W : 0005002S;
Heads map    0,1;
Preamp Vendor: x001;
Preamp revision: x002;
;
Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0   : 0   : 00/0;
1   : 1   : 00/0

;

WD5000LPCX-75VHAT0, DCM HAMTJAK, Western Digital 500GB SATA 2.5 Hard Drive

HDD with Serial Number: WXB1A95R5P6E;
Model: WD5000LPCX-75VHAT0;
Date: 09 NOV 2015;
DCM: HAMTJAK;
Product of: Malaysia;
PCB Sticker: 800025-601 01P;
PCB Revision: 2060-80025-001 REV P1;
;

Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 0 : 00/0;
1 : 1 : 00/0;
;
ROM F/W version: 0003001T;
Heads map: 0,1;
Preamp vendor: 0x0000;
Preamp revision: 0x0002;

HDD with Serial Number: WXH1A565EF6D;
Model: WD5000LPCX-75VHAT0;
Date: 25 JUL 2016;
DCM: HAMTJAK;
Product of: Malaysia;
PCB Sticker: 800025-601 AB;
PCB Revision: 2060-800025-001 REV P2;
;

;

WD5000LPCX-75VHAT0, DCM HAOT2AB, Western Digital 500GB SATA 2.5 Hard Drive

HDD with Serial Number: WXA1AC5JF64H;
Model: WD5000LPCX-75VHAT0;
Date: 12 FEB 2016;
DCM: HAOT2AB;
Product of: Malaysia;
PCB Sticker: 800025-601 04R;
PCB Revision: 2060-80025-001 REV P1;
;

;
