WD5000LMVW-11VEDS2, DCM HAKTJBBB, Western Digital 500GB USB 2.5 Hard Drive

HDD with Serial Number: WX41A844UYFE;
Model: WD5000LMVW-11VEDS2;
Date: 01 SEP 2014;
DCM: HAKTJBBB;
Product of: Thailand;
PCB Sticker: 771962-G02 AD;
PCB Revision: 2060-771962-002 REV A;

;

Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 0 : 00/0;
1 : 1 : 00/0;

;

ROM F/W version……………………. : 0006003T;
Preamp vendor……………………… : 0x0001;
Preamp revision……………………. : 0x0001;

;

WD5000LMVW-11VEDS3, DCM DVKTJBBB, Western Digital 500GB USB 2.5 Hard Drive

HDD with Serial Number: WX21EA4A9YD0;
Model: WD5000LMVW-11VEDS3;
Date: 06 JAN 2015;
DCM: DVKTJBBB;
Product of: Thailand;
PCB Sticker: 771962-102 AG;
PCB Revision: 2060-771962-002 REV A;
;

Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 0 : 00/0;
1 : 1 : 00/0;
ROM F/W version……………………. : 0006004P;
Heads map…………………………. : 0,1;
Preamp vendor……………………… : 0x0001;
Preamp revision……………………. : 0x0001;

;

WD5000LMVW-11VEDS0, DCM HAMTJBB, Western Digital 500GB USB 2.5 Hard Drive

HDD with Serial Number: WXA1A43K0413;
Model: WD5000LMVW-11VEDS0;
Date: 29 MAY 2013;
DCM: HAMTJBB;
Product of: Malaysia;
PCB Sticker: 771949-000 03P;
PCB Revision: 2060-771949-000 REV P1;
;

;

Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 0 : 00/0;
1 : 1 : 00/0;

;

ROM F/W version: 0005001G;
Heads map: 0,1;
Preamp vendor: 0x0001;
Preamp revision: 0x0001;

;

WD5000LMVW-11VEDS2, DCM HAMTJHBB, Western Digital 500GB USB 2.5 Hard Drive

HDD with Serial Number: WX61A44M3706;
Model: WD5000LMVW-11VEDS2;
Date: 24 MAY 2014;
DCM: HAMTJHBB;
Product of: Thailand;
PCB Sticker: 771962-G02 AB;
PCB Revision: 2060-771962-002 REV A;

;

Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 0 : 00/0;
1 : 1 : 00/0;
;
ROM F/W version……………………. : 0006003G;
Preamp vendor……………………… : 0x0001;
Preamp revision……………………. : 0x0001;

;

WD5000LMVW-11VEDS3, DCM EAKT2AKB, Western Digital 500GB USB 2.5 Hard Drive

HDD with Serial Number: WXP1EC493AK6;
Model: WD5000LMVW-11VEDS3;
Date: 26 APR 2015;
DCM: EAKT2AKB;
Product of: Thailand;
PCB Sticker: 771962-102 AJ;
PCB Revision: 2060-771962-002 REV A;
;

Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 0 : 00/0;
1 : 1 : 00/0;
ROM F/W version……………………. : 0006004P;
Heads map…………………………. : 0,1;
Preamp vendor……………………… : 0x0000;
Preamp revision……………………. : 0x0002;

;

WD5000LMVW-11VEDS2, DCM HBKTJAB, Western Digital 500GB USB 2.5 Hard Drive

HDD with Serial Number: WX51AC4F9425;
Model: WD5000LMVW-11VEDS2;
Date: 09 OCT 2017;
DCM: HBKTJAB;
Product of: Malaysia;
PCB Sticker: 771962-G02 AD;
PCB Revision: 2060-771962-002 REV A;
;

Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 0 : 00/0;
1 : 1 : 00/0;

;

ROM F/W version: 0006004P;
Preamp vendor: 0x0001;
Preamp revision: 0x0001;

;

WD5000LMVW-11VEDS3, DCM EAKT2VB, Western Digital 500GB USB 2.5 Hard Drive

HDD with Serial Number: WXT1E64RCKKD;
Model: WD5000LMVW-11VEDS3;
Date: 02 NOV 2014;
DCM: EAKT2VB;
Product of: Malaysia;
PCB Sticker: 771962-102 AG;
PCB Revision: 2060-771962-002 REV A;

;

Micro Jogs;
——————————;
LH  : PH  : Micro Jog (Hex/Dec);
——————————;
0   : 0   : 00/0;
1   : 1   : 00/0;
ROM F/W version……………………. : 0006003T;
Heads map…………………………. : 0,1;
Preamp vendor……………………… : 0x0000;
Preamp revision……………………. : 0x0002;

;

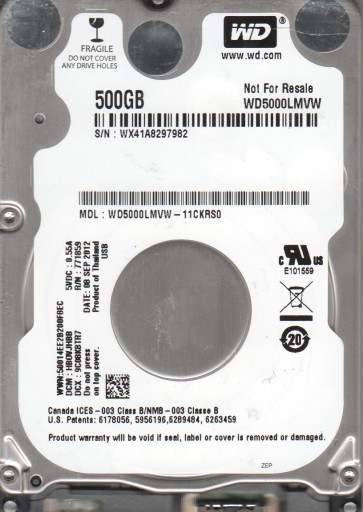

WD5000LMVW-11CKRS0, DCM HHOTJHNB, Western Digital 500GB USB 2.5 Hard Drive

HDD with Serial Number: WX51AA2W5375;
Model: WD5000LMVW-11CKRS0;
Date: 28 NOV 2012;
DCM: HHOTJHNB;
Product of: Thailand;
PCB Sticker: 771859-000 AB;
PCB Revision: 2060-771859-000 REV P1;

Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 0 : 11CF/4559;
1 : 1 : 1198/4504;
;
ROM F/W version: 0002004P;
Heads map:0,1;
Preamp vendor: 0x0001;
Preamp revision: 0x0001;

;
