Category: HDD

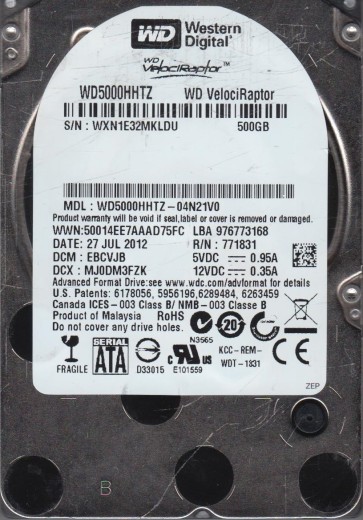

HDD with Serial Number: WXN1E32MKLDU;
Model: WD5000HHTZ-04N21V0;
Date: 27 JUL 2012;
DCM: EBCVJB;
Product of: Malaysia;
PCB Sticker: 771831-701 02P;
PCB Revision: 2060-771831-001 REV P1;

;

Micro Jogs;
——————————;
LH  : PH  : Micro Jog (Hex/Dec);
——————————;
0   : 0   : A21/2593;
1   : 1   : A98/2712;
2   : 2   : AD9/2777;
3   : 3   : A14/2580;
ROM F/W version……………………. : 00060032;
Heads map…………………………. : 0,1,2,3;
Preamp vendor……………………. : 0x0001;
Preamp revision…………………. : 0x0002;
;
;
;

;

HDD with Serial Number: WXN1E32KLVPC;
Model: WD5000HHTZ-04N21V0;
Date: 19 JUL 2012;
DCM: EBCVJB;
Product of: Malaysia;
PCB Sticker: 771831-701 02P;
PCB Revision: 2060-771831-001 REV P1;

;

Micro Jogs;
——————————;
LH  : PH  : Micro Jog (Hex/Dec);
——————————;
0   : 0   : 93C/2364;
1   : 1   : A7B/2683;
2   : 4   : 9B6/2486;
3   : 5   : AB8/2744;
ROM F/W version……………………. : 00060032;
Heads map…………………………. : 0,1,4,5;
Preamp vendor……………………. : 0x0001;
Preamp revision…………………. : 0x0002;
;
;
;

;

HDD with Serial Number: WXV1E53EEPM9;
Model: WD5000HHTZ-04N21V0;
Date: 11 OCT 2013;
DCM: EBCVJH;
Product of: Malaysia;
PCB Sticker: 771831-701 AF;
PCB Revision: 2060-771831-001 REV A;
;

;

HDD with Serial Number: WX81E74P3KLJ;
Model: WD5000HHTZ-75N21V0;
Date: 12 NOV 2014;
DCM: EBCVJH;
Product of: Malaysia;
PCB Sticker: 771831-A01 AE;
PCB Revision: 2060-771831-001 REV A;
;

Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 0 : AFD/2813;
1 : 1 : 974/2420;
2 : 2 : AF8/2808;
3 : 3 : 8E8/2280;

;

ROM F/W: 00070086;
Heads map: 0,1,2,3;
Preamp vendor: 0x0001;
Preamp revision: 0x0002;

;

HDD with Serial Number: WX21A167ZZRV;
Model: WD5000BPVX-00JC3T0;
Date: 10 MAR 2016;
DCM: HHOT2HB;
Product of: Malaysia;
PCB Sticker: 771960-300 AA;
PCB Revision: 2060-771960-000 REV A;
;

Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 0 : 00/0;
1 : 3 : 00/0;
ROM F/W version……………………. : 0016007C;
Heads map…………………………. : 0,3;
Preamp vendor…………………… : 0x0000;
Preamp revision…………………. : 0x0000;

;

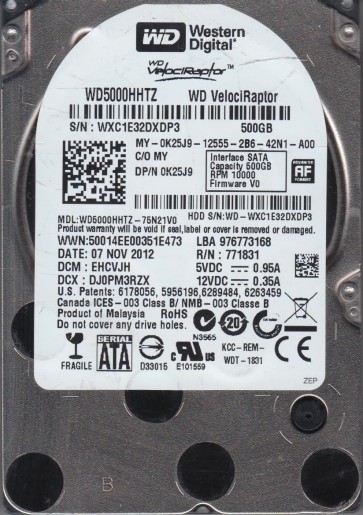

HDD with Serial Number: WXC1E32DXDP3;
Model: WD5000HHTZ-75N21V0;
Date: 07 NOV 2012;
DCM: EHCVJH;
Product of: Malaysia;
PCB Sticker: 771831-701 02P;
PCB Revision: 2060-771831-001 REV P1;
;

;

HDD with Serial Number: WXU1EA42UYPX;
Model: WD5000BPVX-00JC3T0;
Date: 11 SEP 2015;
DCM: SBMT2BK;
Product of: Malaysia;
PCB Sticker: 771960-100 AE;
PCB Revision: 2060-771960-000 REV A;

;



;

Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 0 : 00/0;
1 : 1 : 00/0;
2 : 2 : 00/0;

;



;

ROM F/W version……………………. : 0016006M;
Preamp vendor……………………… : 0x0000;
Preamp revision……………………. : 0x0000;

;

Specifications;

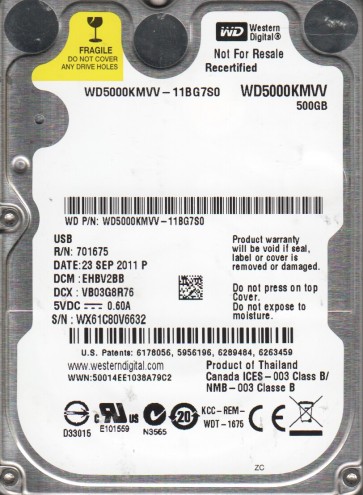

SN: WX61C80V6632;
Model: WD5000KMVV-11BG7S0;
Date: 23 SEP 2011;
DCM: EHBV2BB ;
Product of: Thailand;
PCB Sticker: 2061-701675-304 06P;
PCB Revision: 2060-701675-004 REV P1;

;

;

HDD with Serial Number: WX31E63JV355;
Model: WD5000BPVX-00JC3T0;
Date: 02 SEP 2013;
DCM: SBMTJBN;
Product of: Malaysia;
PCB Sticker: 771960-100 AAD22;
PCB Revision: 2060-771960-000 REV P2;
;

Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 0 : 00/0;
1 : 1 : 00/0;
ROM F/W version……………………. : 0006000M;
Heads map…………………………. : 0,1;
Preamp vendor……………………… : 0x0001;
Preamp revision……………………. : 0x0000;

;

HDD with Serial Number: WXA1A9096406;
Model: WD5000KMVV-11BG7S0;
Date: 20 SEP 2011;
DCM: HBBV2BB;
Product of: Thailand;
PCB Sticker: 2061-701675-304 AC;
PCB Revision: 2060-701675-004 REV P1;
;

Micro Jogs;
——————————;
LH  : PH  : Micro Jog (Hex/Dec);
——————————;
0   : 0   : C02/3074;
1   : 2   : C2C/3116;
2   : 4   : C3E/3134;
3   : 5   : ACC/2764;
ROM F/W version……………………. : 001400BG;
Heads map…………………………. : 0,2,4,5;
Preamp vendor……………………… : 0x0000;
Preamp revision……………………. : 0x0006;
;
;
;
;

;

HDD with Serial Number: WXN1E53V3435;
Model: WD5000BPVX-00JC3T0;
Date: 27 AUG 2013;
DCM: SBOTJBB;
Product of: Malaysia;
PCB Sticker: 771960-100 AAD22;
PCB Revision: 2060-771960-000 REV P2;
;

Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 0 : 00/0;
1 : 1 : 00/0;
ROM F/W version……………………. : 0006000M;
Heads map…………………………. : 0,1;
Preamp vendor……………………… : 0x0001;
Preamp revision……………………. : 0x0000;

;
