Category: HDD

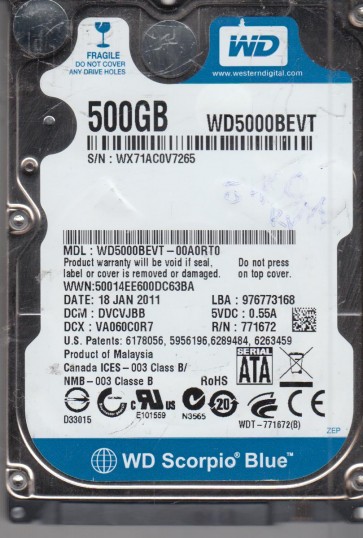

HDD with Serial Number: WX71AC0V7265;
Model: WD5000BEVT-00A0RT0;
Date: 18 JAN 2011;
DCM: DVCVJBB;
Product of: Malaysia;
PCB Sticker: 2061-771672-F04 AC;
PCB Revision: 2060-771672-004 REV A;
;

Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 0 : B60/2912;
1 : 1 : B40/2880;
2 : 2 : B95/2965;
3 : 3 : B1D/2845;
ROM F/W version……………………. : 0016000D;
Heads map…………………………. : 0,1,2,3;
Preamp vendor……………………… : 0x0001;
Preamp revision……………………. : 0x0003;

;

HDD with Serial Number: WX21A4034937;
Model: WD5000BEVT-00ZAT0;
Date: 20 JUN 2010;
DCM: HHCVJHBB;
Product of: Thailand;
PCB Sticker: 2061-701572-400 AE;
PCB Revision: 2060-701572-002 REV A;
;

;

HDD with Serial Number: WXG1C30V3791;
Model: WD5000BEVT-16A0RT0;
Date: 25 MAY 2010;
DCM: EHNTJBB;
Product of: Malaysia;
PCB Sticker: 2061-771672-F04 AA;
PCB Revision: 2060-771672-004 REV A;

;

Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 0 : A54/2644;
1 : 1 : A62/2658;
2 : 2 : A9E/2718;
3 : 3 : A50/2640;
ROM F/W version……………………. : 00140028;
Heads map…………………………. : 0,1,2,3;
Preamp vendor…………………….. : 0x0001;
Preamp revision…………………… : 0x0003;

;

HDD with Serial Number: WXT1EC0DVFN8;
Model: WD5000BEVT-00A0RT0;
Date: 18 SEP 2011;
DCM: DVOT2BN;
Product of: Malaysia;
PCB Sticker: 2061-771672-F04 AD;
PCB Revision: 2060-771672-004 REV A;
;

Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 0 : A7A/2682;
1 : 1 : A9C/2716;
2 : 2 : AD6/2774;
3 : 3 : AC2/2754;

;

ROM F/W: 0016001D;
Heads map: 0,1,2,3;
Preamp vendor: 0x0000;
Preamp revision: 0x0009;

;

HDD with Serial Number: WX71C9025959;
Model: WD5000BEVT-08A0RT1;
Date: 16 NOV 2010;
DCM: HBNTJAN;
Product of: Malaysia;
PCB Sticker: 2061-771672-F04 AC;
PCB Revision: 2060-771672-004 REV A;
;

Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 0 : ABE/2750;
1 : 1 : AE4/2788;
2 : 2 : AA0/2720;
3 : 3 : A38/2616;

;

ROM F/W version: 0014003R;
Heads map: 0,1,2,3;
Preamp vendor: 0x0001;
Preamp revision: 0x0003;

;

HDD with Serial Number: WXL0AC974057;
Model: WD5000BEVT-16ZAT0;
Date: 23 JAN 2010;
DCM: HBCVJBBB;
Product of: Thailand;
PCB Sticker: 2061-701572-400 AE;
PCB Revision: 2060-701572-002 REV A;
;

Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 0 : 924/2340;
1 : 1 : 95C/2396;
2 : 2 : 979/2425;
3 : 3 : 95F/2399;
ROM F/W version……………………. : 000900BW;
Heads map…………………………. : 0,1,2,3;
Preamp vendor……………………. : 0x0001;
Preamp revision…………………… : 0x0002;

;

HDD with Serial Number: WXC0AC9U4809;
Model: WD5000BEVT-00A0RT0;
Date: 13 APR 2010;
DCM: HACVJAB;
Product of: Malaysia;
PCB Sticker: 2061-771672-001 AE;
PCB Revision: 2060-771672-001 REV P1;

;

Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 0 : C37/3127;
1 : 1 : B72/2930;
2 : 2 : B86/2950;
3 : 3 : B7A/2938;
ROM F/W version……………………. : 001300CB;
Heads map…………………………. : 0,1,2,3;
Preamp vendor……………………. : 0x0001;
Preamp revision…………………… : 0x0003;

;

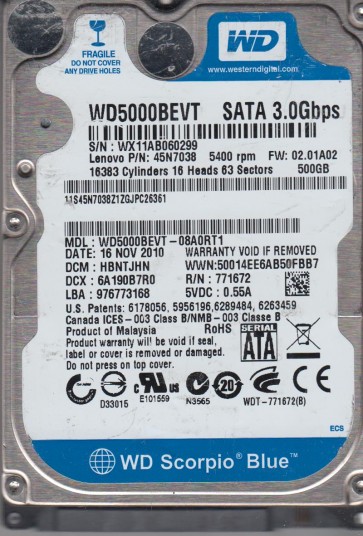

HDD with Serial Number: WX11AB060299;
Model: WD5000BEVT-08A0RT1;
Date: 16 NOV 2010;
DCM: HBNTJHN;
Product of: Malaysia;
PCB Sticker: 2061-771672-F04 AC;
PCB Revision: 2060-771672-004 REV A;
;

Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 0 : A0C/2572;
1 : 1 : A8A/2698;
2 : 2 : A02/2562;
3 : 3 : AA8/2728;
ROM F/W version……………………. : 0014003R;
Heads map…………………………. : 0,1,2,3;
Preamp vendor……………………… : 0x0001;
Preamp revision……………………. : 0x0003;

;

HDD with Serial Number: WXA0AB9E3717;
Model: WD5000BEVT-16ZAT0;
Date: 18 DEC 2009;
DCM: HHCVJBBB;
Product of: Thailand;
PCB Sticker: 2061-701572-400 AE;
PCB Revision: 2060-701572-002 REV A;
;

Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 0 : 943/2371;
1 : 1 : 911/2321;
2 : 2 : 96E/2414;
3 : 3 : 940/2368;

;

ROM F/W version: 000900BU;
Heads map: 0,1,2,3;
Preamp vendor: 0x0001;
Preamp revision: 0x0002;

;

HDD with Serial Number: WXF1AC0F0244;
Model: WD5000BEVT-00A0RT0;
Date: 12 JAN 2011;
DCM: HBCVJBN;
Product of: Malaysia;
PCB Sticker: 2061-771672-F04 AC;
PCB Revision: 2060-771672-004 REV A;
;

Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 0 : B51/2897;
1 : 1 : B85/2949;
2 : 2 : B51/2897;
3 : 3 : B96/2966;

;

ROM F/W: 0016000D;
Heads map: 0,1,2,3;
Preamp vendor: 0x0001;
Preamp revision: 0x0003;

;
