Category: HDD

HDD #1 Specs:;
SN: WXA0A69U8916;
Model: WD5000BEVT-11A03T0;
Date: 21 APR 2010;
DCM: HBCVJBB ;
Product of: Thailand;
PCB Sticker: 2061-701609-800 AC;
PCB Revision: 2060-701609-000 REV P1;

;

Micro Jogs;
——————————;
LH  : PH  : Micro Jog (Hex/Dec);
——————————;
0   : 0   : 8F8/2296;
1   : 1   : 95F/2399;
2   : 2   : 903/2307;
3   : 3   : 91C/2332;
;
;

;

HDD with Serial Number: WX30A6906974;
Model: WD5000BEVT-16ZAT0;
Date: 19 JUL 2009;
DCM: HHCVJHBB;
Product of: Thailand;
PCB Sticker: 2061-701572-400 AB;
PCB Revision: 2060-701572-002 REV A;

Micro Jogs;
——————————;
LH  : PH  : Micro Jog (Hex/Dec);
——————————;
0   : 0   : 95C/2396;
1   : 1   : 99D/2461;
2   : 2   : 9B8/2488;
3   : 3   : 97A/2426;
ROM F/W version……………………. : 00090017;
Preamp vendor……………………… : 0x0001;
Preamp revision……………………. : 0x0002;
;
;

;

HDD with Serial Number: WX21A31F2402;
Model: WD5000BEVT-00A0RT0;
Date: 26 MAR 2011;
DCM: HBOT2AB;
Product of: Malaysia;
PCB Sticker: 2061-771672-F04 AA;
PCB Revision: 2060-771672-004 REV A;
;

Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 0 : 9FE/2558;
1 : 1 : 9F6/2550;
2 : 2 : A38/2616;
3 : 3 : 9E0/2528;

;

ROM F/W version: 0016000S;
Heads map: 0,1,2,3;
Preamp vendor: 0x0000;
Preamp revision: 0x0009;

;

HDD with Serial Number: WXF0A79N7068;
Model: WD5000BEVT-11A03T0;
Date: 03 SEP 2009;
DCM: HBCVJBBB;
Product of: Thailand;
PCB Sticker: 2061-701609-800 AC;
PCB Revision: 2060-701609-000 REV P1;

;

Micro Jogs;
——————————;
LH  : PH  : Micro Jog (Hex/Dec);
——————————;
0   : 0   : 910/2320;
1   : 1   : 901/2305;
2   : 2   : 930/2352;
3   : 3   : 94D/2381;
ROM F/W version……………………. : 009500EP;
Heads map…………………………. : 0,1,2,3;
Preamp vendor……………………. : 0x0001;
Preamp revision………………….. : 0x0002;

;

HDD with Serial Number: WXK1A80S5091;
Model: WD5000BEVT-22A0RT0;
Date: 29 SEP 2010;
DCM: HHNTJAN;
Product of: Malaysia;
PCB Sticker: 2061-771672-F04 AA;
PCB Revision: 2060-771672-004 REV A;

;

HDD with Serial Number: WX71C5071149;
Model: WD5000BEVT-00SCST0;
Date: 04 DEC 2010;
DCM: EANTJANB;
Product of: Thailand;
PCB Sticker: 2061-771714-002 02P;
PCB Revision: 2060-771714-002 REV P1;
;

Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 0 : 9BD/2493;
1 : 1 : 9D5/2517;
2 : 2 : 9A5/2469;
3 : 3 : A2B/2603;

;

ROM F/W version: 00160015;
Heads map: 0,1,2,3;
Preamp vendor: 0x0001;
Preamp revision: 0x0003;

;

Specifications;
SN: WXC0A79Y4585;
Model: WD5000BEVT-11A03T0;
Date: 14 AUG 2009;
DCM: HBCVJBNB ;
Product of: Thailand;
PCB Sticker: 2061-701609-800 AC;
PCB Revision: 2060-701609-000 REV P1;

;

;

HDD with Serial Number: WXT1EC0DZPU3;
Model: WD5000BEVT-22A0RT0;
Date: 26 MAR 2011;
DCM: DBOT2BN;
Product of: Malaysia;
PCB Sticker: 2061-771672-F04 AD;
PCB Revision: 2060-771672-004 REV A;

;

Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 0 : A46/2630;
1 : 1 : A8C/2700;
2 : 2 : A70/2672;
3 : 3 : A7A/2682;

;

ROM F/W version: 0016000S;
Heads map: 0,1,2,3;
Preamp vendor: 0x0000;
Preamp revision: 0x0009;

;

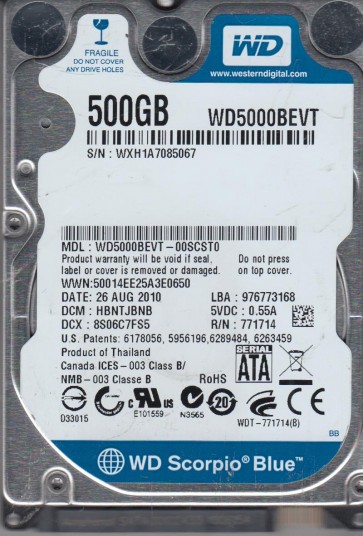

HDD with Serial Number: WXH1A7085067;
Model: WD5000BEVT-00SCST0;
Date: 26 AUG 2010;
DCM: HBNTJBNB;
Product of: Thailand;
PCB Sticker: 2061-771714-002 AA;
PCB Revision: 2060-771714-002 REV P1;
;

Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 0 : 9FA/2554;
1 : 1 : 94D/2381;
2 : 2 : 9FB/2555;
3 : 3 : 9E6/2534;
ROM F/W version……………………. : 0016000P;
Heads map…………………………. : 0,1,2,3;
Preamp vendor……………………… : 0x0001;
Preamp revision……………………. : 0x0003;

;

HDD #2 Specs:;
Serial Number: WXH0A79S6441;
Model: WD5000BEVT-11A03T0;
Date: 27 AUG 2009;
DCM: HBCVJHBB;
Product of: Thailand;
PCB Sticker: 2061-701609-800 AC;
PCB Revision: 2060-701609-000 REV P1;

 Micro Jogs;
——————————;
LH  : PH  : Micro Jog (Hex/Dec);
——————————;
0   : 0   : 93F/2367;
1   : 1   : 8C3/2243;
2   : 2   : 965/2405;
3   : 3   : 8DF/2271;
ROM F/W version……………………. : 009500EP;
Preamp vendor……………………… : 0x0001;
Preamp revision……………………. : 0x0002;

;
