Category: HDD

HDD with Serial Number: WX91A70F2063;
Model: WD5000BEKT-75KA9T0;
Date: 04 AUG 2010;
DCM: HANTJBNB;
Product of: Thailand;
PCB Sticker: 2061-771714-002 02P;
PCB Revision: 2060-771714-002 REV P1;
;

Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 0 : A11/2577;
1 : 1 : 99D/2461;
2 : 2 : A6D/2669;
3 : 3 : 9AB/2475;
ROM F/W version……………………. : 0016000P;
Heads map…………………………. : 0,1,2,3;
Preamp vendor……………………… : 0x0001;
Preamp revision……………………. : 0x0003;

;

HDD with Serial Number: WXR1AC0Y4189;
Model: WD5000BEKT-75KA9T0;
Date: 12 APR 2011;
DCM: HBCTJBBB;
Product of: Thailand;
PCB Sticker: 771714-002 AC;
PCB Revision: 2060-771714-002 REV P1;
Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 0 : 9D3/2515;
1 : 1 : A3E/2622;
2 : 2 : 9A6/2470;
3 : 3 : A54/2644;
ROM F/W version……………………. : 00160016;
Heads map…………………………. : 0,1,2,3;
Preamp vendor……………………. : 0x0001;
Preamp revision………………….. : 0x0003;

;

Specifications;
SN: WXH1A7002553;
Model: WD5000BEKT-75KA9T0;
Date: 09 AUG 2010;
DCM: HBNTJABB ;
Product of: Thailand;
PCB Sticker: 2061-771714-002 02P;
PCB Revision: 2060-771714-002 REV P1;

;

;

Specifications;
SN: WX51A9092857;
Model: WD5000BEKT-75KA9T0;
Date: 05 OCT 2010;
DCM: HHCTJBBB ;
Product of: Thailand;
PCB Sticker: 2061-771714-002 AC;
PCB Revision: 2060-771714-002 REV P1;

;

Micro Jogs;
——————————;
LH  : PH  : Micro Jog (Hex/Dec);
——————————;
0   : 0   : A2B/2603;
1   : 1   : 9C4/2500;
2   : 2   : 99F/2463;
3   : 3   : 9F5/2549;
;
;

;

HDD with Serial Number: WX11A11C7769;
Model: WD5000BEKT-75KA9T0;
Date: 16 FEB 2011;
DCM: HHNTJBBB;
Product of: Thailand;
PCB Sticker: 2061-771714-002 AC;
PCB Revision: 2060-771714-002 REV P1;
;

Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 0 : A2B/2603;
1 : 1 : A2C/2604;
2 : 2 : A03/2563;
3 : 3 : A52/2642;
ROM F/W version……………………. : 00160015;
Heads map…………………………. : 0,1,2,3;
Preamp vendor……………………… : 0x0001;
Preamp revision……………………. : 0x0003;

HDD with Serial Number: WXF1AC0K4798;
Model: WD5000BEKT-75KA9T0;
Date: 31 JAN 2011;
DCM: HHNTJBBB;
Product of: Thailand;
PCB Sticker: 2061-771714-002 AC;
PCB Revision: 2060-771714-002 REV P1;
;

Micro Jogs;
——————————;
LH  : PH  : Micro Jog (Hex/Dec);
——————————;
0   : 0   : 9EE/2542;
1   : 1   : AB7/2743;
2   : 2   : 9E3/2531;
3   : 3   : A96/2710;
ROM F/W version……………………. : 00160015;
Heads map…………………………. : 0,1,2,3;
Preamp vendor……………………. : 0x0001;
Preamp revision………………….. : 0x0003;

;

HDD with Serial Number: WX91A80J9637;
Model: WD5000BEKT-80KA9T0;
Date: 23 SEP 2010;
DCM: HBNTJANB;
Product of: Thailand;
PCB Sticker: 2061-771714-002 AC;
PCB Revision: 2060-771714-002 REV P1;
;

Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 0 : A48/2632;
1 : 1 : AA3/2723;
2 : 2 : A4D/2637;
3 : 3 : ACE/2766;
ROM F/W version……………………. : 0016000Q;
Heads map…………………………. : 0,1,2,3;
Preamp vendor……………………… : 0x0001;
Preamp revision……………………. : 0x0003;

;

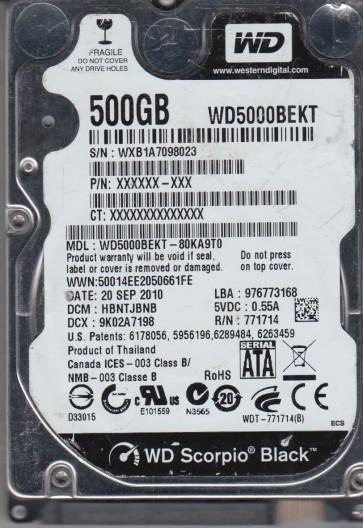

HDD with Serial Number: WXB1A7098023;
Model: WD5000BEKT-80KA9T0;
Date: 20 SEP 2010;
DCM: HBNTJBNB;
Product of: Thailand;
PCB Sticker: 2060-771714-002 AC;
PCB Revision: 2060-771714-002 REV P1;

;

Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 0 : A11/2577;
1 : 1 : A13/2579;
2 : 2 : A23/2595;
3 : 3 : A14/2580;

;

ROM F/W version……………………. : 0016000Q;
Preamp vendor……………………… : 0x0001;
Preamp revision……………………. : 0x0003;

;

HDD with Serial Number: WXM1A80H0936;
Model: WD5000BEKT-80KA9T0;
Date: 16 SEP 2010;
DCM: HHNTJANB;
Product of: Thailand;
PCB Sticker: 2061-771714-002 AC;
PCB Revision: 2060-771714-002 REV P1;
;

Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 0 : 986/2438;
1 : 1 : ABC/2748;
2 : 2 : 943/2371;
3 : 3 : A9E/2718;

;

ROM F/W version: 0016000Q;
Heads map: 0,1,2,3;
Preamp vendor: 0x0001;
Preamp revision: 0x0003;

;

HDD with Serial Number: WXNX08SD3511;
Model: WD5000BEVT-00A03T0;
Date: 09 MAY 2009;
DCM: HBCVJBBB;
Product of: Thailand;
PCB Sticker: 2061-701609-800 AB;
PCB Revision: 2060-701609-000 REV P1;

;

Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 0 : 8A7/2215;
1 : 1 : 8B7/2231;
2 : 2 : 887/2183;
3 : 3 : 8DE/2270;
ROM F/W version……………………. : 0095002N;
Heads map…………………………. : 0,1,2,3;
Preamp vendor……………………. : 0x0001;
Preamp revision………………….. : 0x0002;

HDD with Serial Number: WX90A6976950;
Model: WD5000BEVT-00A03T0;
Date: 22 JUL 2009;
DCM: HBCVJBBB;
Product of: Thailand;
PCB Sticker: 2061-701609-800 AC;
PCB Revision: 2060-701609-000 REV P1;
;

Micro Jogs;
——————————;
LH  : PH  : Micro Jog (Hex/Dec);
——————————;
0   : 0   : 907/2311;
1   : 1   : 956/2390;
2   : 2   : 955/2389;
3   : 3   : 978/2424;
ROM F/W version……………………. : 009500EP;
Heads map…………………………. : 0,1,2,3;
Preamp vendor……………………. : 0x0001;
Preamp revision………………….. : 0x0002;

;

HDD with Serial Number: WXJ0A79M4635;
Model: WD5000BEVT-00A03T0;
Date: 18 AUG 2009;
DCM: HBCVJHBB;
Product of: Thailand;
PCB Sticker: 2061-701609-800 AC;
PCB Revision: 2060-701609-000 REV P1;
;

Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 0 : 974/2420;
1 : 1 : 90C/2316;
2 : 2 : 999/2457;
3 : 3 : 91B/2331;

;

ROM F/W version: 009500EP;
Heads map: 0,1,2,3;
Preamp vendor: 0x0001;
Preamp revision: 0x0002;

;
