HDD with Serial Number: WXC808969864;
Model: WD800BEVS-00VAT0;
Date: 10 NOV 2008;
DCM: FACT2HNB;
Product of: Thailand;
PCB Sticker: 2061-701499-500 AF;
PCB Revision: 2060-701499-000 REV A;
;

Micro Jogs;
——————————;
LH  : PH  : Micro Jog (Hex/Dec);
——————————;
0   : 1   : 952/2386;
ROM F/W version……………………. : 0008001D;
Heads map…………………………. : 1;
Preamp vendor……………………. : 0x0002;
Preamp revision………………….. : 0x0001;

;

HDD with Serial Number: WXR0E69ETC84;
Model: WD800BEVS-00VAT0;
Date: AUG 40 2009;
DCM: FANTJHBB;
Product of: Thailand;
PCB Sticker: 2061-701499-E00 AC;
PCB Revision: 2060-701499-005 REV P1;
;

;

HDD #1 Specs:;
Serial Number: WXC308954595;
Model: WD800BEVS-00VAT0;
Date: 11 APR 2008;
DCM: FHCVJHBB;
Product of: Thailand;
PCB Sticker: 2061-701499-500 AA;
PCB Revision: 2060-701499-000 REV A;

;

Micro Jogs;
——————————;
LH  : PH  : Micro Jog (Hex/Dec);
——————————;
0   : 0   : 764/1892;
ROM F/W version……………………. : 00040028;
Preamp vendor……………………… : 0x0001;
Preamp revision……………………. : 0x0000;
;
;
;
;

;

HDD with Serial Number: WXEY08P4K136;
Model: WD800BEVS-00VAT0;
Date: 14 NOV 2008;
DCM: HACTJBNB;
Product of: Thailand;
PCB Sticker: 2061-701499-E00 03P;
PCB Revision: 2060-701499-005 REV P1;

;

Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 0 : 8D4/2260;

;

ROM F/W version……………………. : 0004002U;
Preamp vendor……………………… : 0x0001;
Preamp revision……………………. : 0x0001;

;

HDD #1 Specs:;

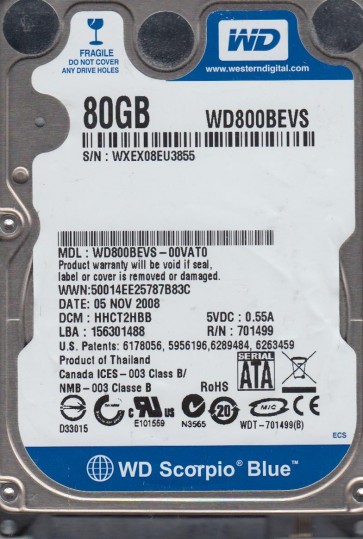

Serial Number: WXEX08EU3855;
Model: WD800BEVS-00VAT0;
Date: 05 NOV 2008;
DCM: HHCT2HBB;
Product of: Thailand;
PCB Sticker: 2061-701499-500 AF;
PCB Revision: 2060-701499-000 REV A;

;

Micro Jogs;
——————————;
LH  : PH  : Micro Jog (Hex/Dec);
——————————;
0   : 1   : 92C/2348;
ROM F/W version……………………. : 0008001D;
Preamp vendor……………………… : 0x0002;
Preamp revision……………………. : 0x0001;
;
;
;
;

;

HDD with Serial Number: WXC508639943;
Model: WD800BEVS-08RST2;
Date: 07 JUN 2008;
DCM: FAYTJABB;
Product of: Thailand;
PCB Sticker: 2061-701450-Z00 AK;
PCB Revision: 2060-701450-011 REV A;
;

Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 0 : 950/2384;
1 : 1 : 94A/2378;
ROM F/W version……………………. : 00110086;
Heads map…………………………. : 0,1;
Preamp vendor……………………. : 0x0004;
Preamp revision………………….. : 0x0001;

;

Specifications;
SN: WXC608033667;
Model: WD800BEVS-08RST2;
Date: 15 JUN 2008;
DCM: FBYTJBBB ;
Product of: Thailand;
PCB Sticker: 2061-701450-Z00 AJ;
PCB Revision: 2060-701450-011 REV A;

;

Micro Jogs;
——————————;
LH  : PH  : Micro Jog (Hex/Dec);
——————————;
0   : 0   : 91A/2330;
1   : 1   : 96E/2414;

;

ROM F/W version……………………. : 00110086;
Preamp vendor……………………… : 0x0004;
Preamp revision……………………. : 0x0001;

;

HDD #1 Specs:;
Serial Number: WXC408858152;
Model: WD800BEVS-08RST2;
Date: 26 APR 2008;
DCM: FHCTJANB;
Product of: Thailand;
PCB Sticker: 2061-701450-Z00 AJ;
PCB Revision: 2060-701450-011 REV A;

;

Micro Jogs;
——————————;
LH  : PH  : Micro Jog (Hex/Dec);
——————————;
0   : 0   : 98E/2446;
1   : 1   : 91E/2334;
ROM F/W version……………………. : 00110086;
Preamp vendor……………………… : 0x0004;
Preamp revision……………………. : 0x0001;
;
;
;
;

;

Specifications;

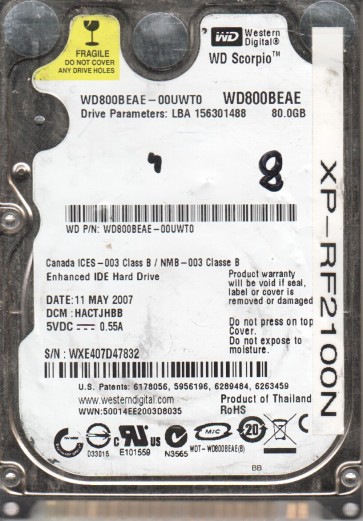

SN: WXE407D47832;
Model: WD800BEAE-00UWT0;
Date: 11 MAY 2007;
DCM: HACTJHBB ;
Product of: Thailand;
PCB Sticker: 2061-701512-000 AAD1;
PCB Revision: 2060-701512-000 REV A;

;

Micro Jogs;
——————————;
LH  : PH  : Micro Jog (Hex/Dec);
——————————;
0   : 0   : 9B2/2482;
1   : 1   : 9F6/2550;

;

ROM F/W version……………………. : 0001008G;
Preamp vendor……………………… : 0x0004;
Preamp revision……………………. : 0x0001;

;

HDD with Serial Number: WX81A2064985;
Model: WD800BEVE-00A0HT0;
Date: 17 MAR 2010;
DCM: HANTJHNB;
Product of: Thailand;
PCB Sticker: 2061-701532-000 AJ;
PCB Revision: 2060-701532-000 REV A;
;

;
