Category: HDD

HDD with Serial Number: WXT0A49P9010;
Model: WD5000BEVT-00A03T0;
Date: 31 MAY 2009;
DCM: HHCVJBBB;
Product of: Thailand;
PCB Sticker: 2061-701609-800 AB;
PCB Revision: 2060-701609-000 REV P1;

;

Micro Jogs;
——————————;
LH  : PH  : Micro Jog (Hex/Dec);
——————————;
0   : 0   : 91A/2330;
1   : 1   : 933/2355;
2   : 2   : 90F/2319;
3   : 3   : 885/2181;
ROM F/W version……………………. : 009500EP;
Preamp vendor……………………… : 0x0001;
Preamp revision……………………. : 0x0002;
;
;
;
;

;

HDD with Serial Number: WXR0A4900699;
Model: WD5000BEVT-00A03T0;
Date: 25 MAY 2009;
DCM: HHCVJHBB;
Product of: Thailand;
PCB Sticker: 2061-701609-800 AB;
PCB Revision: 2060-701609-000 REV P1;
;

Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 0 : 927/2343;
1 : 1 : 92C/2348;
2 : 2 : 8C3/2243;
3 : 3 : 8F3/2291;
ROM F/W version……………………. : 009500AP;
Heads map…………………………. : 0,1,2,3;
Preamp vendor……………………… : 0x0001;
Preamp revision……………………. : 0x0002;

HDD with Serial Number: WXR0A49KD686;
Model: WD5000BEVT-00A03T0;
Date: 13 MAY 2009;
DCM: HHCVJHBB;
Product of: Thailand;
PCB Sticker: 2061-701609-800 AB;
PCB Revision: 2060-701609-000 REV P1;
;

——————————;
LH  : PH  : Micro Jog (Hex/Dec);
——————————;
0   : 0   : 97C/2428;
1   : 1   : 88F/2191;
2   : 2   : 97A/2426;
3   : 3   : 8D5/2261;
;
ROM F/W Version: 009500EP;
Heads map: 0,1,2,3;
Preamp vendor: 0x0001;
Preamp revision: 0x0002

;

HDD with Serial Number: WXF1A60W7448;
Model: WD5000BEKT-75KA9T0;
Date: 04 JUL 2010;
DCM: HACTJABB;
Product of: Thailand;
PCB Sticker: 2061-771714-002 02P;
PCB Revision: 2060-771714-002 REV P1;
;

Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 0 : A44/2628;
1 : 1 : A79/2681;
2 : 2 : A4B/2635;
3 : 3 : A4E/2638;
ROM F/W version……………………. : 0016000M;
Heads map…………………………. : 0,1,2,3;
Preamp vendor……………………… : 0x0001;
Preamp revision……………………. : 0x0003;

;

HDD with Serial Number: WXM1E11LVTD6;
Model: WD5000BEVT-00A05T0;
Date: 18 SEP 2011;
DCM: DBOT2BB;
Product of: Malaysia;
PCB Sticker: 2061-771672-F04 AD;
PCB Revision: 2060-771672-004 REV A;
;

Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 0 : A58/2648;
1 : 1 : A56/2646;
2 : 2 : A5A/2650;
3 : 3 : A7A/2682;
ROM F/W version……………………. : 0016001D;
Heads map…………………………. : 0,1,2,3;
Preamp vendor……………………… : 0x0000;
Preamp revision……………………. : 0x0009;

;

HDD with Serial Number: WX81A70H4664;
Model: WD5000BEKT-75KA9T0;
Date: 05 AUG 2010;
DCM: HACTJANB;
Product of: Thailand;
PCB Sticker: 2061-771714-002 02P;
PCB Revision: 2060-771714-002 REV P1;

;

Micro Jogs;
——————————;
LH  : PH  : Micro Jog (Hex/Dec);
——————————;
0   : 0   : A5C/2652;
1   : 1   : AB2/2738;
2   : 2   : A6C/2668;
3   : 3   : AB9/2745;
ROM F/W version……………………. : 0016000P;
Preamp vendor……………………… : 0x0001;
Preamp revision……………………. : 0x0003;
;
;
;
;

;

HDD with Serial Number: WXB1A51J6179;
Model: WD5000BEVT-00A05T0;
Date: 08 JUN 2011;
DCM: HAOT2BN;
Product of: Malaysia;
PCB Sticker: 2061-701672-001 AD;
PCB Revision: 2060-701672-001 REV P1;

;

Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 0 : AD2/2770;
1 : 1 : A1E/2590;
2 : 2 : A36/2614;
3 : 3 : A00/2560;

;

ROM F/W version……………………. : 0016000S;
Preamp vendor……………………… : 0x0000;
Preamp revision……………………. : 0x0009;

;

HDD with Serial Number: WX41A8034545;
Model: WD5000BEKT-75KA9T0;
Date: 16 AUG 2010;
DCM: HACTJBNB;
Product of: Thailand;
PCB Sticker: 2061-771714-002 AA;
PCB Revision: 2060-771714-002 REV P1;
;

Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 0 : 9F0/2544;
1 : 1 : AE3/2787;
2 : 2 : A0B/2571;
3 : 3 : AC5/2757;
ROM F/W version……………………. : 0016000P;
Heads map…………………………. : 0,1,2,3;
Preamp vendor……………………… : 0x0001;
Preamp revision……………………. : 0x0003;

;

HDD with Serial Number: WXC1E11PP419;
Model: WD5000BEVT-00A0RT0;
Date: 08 OCT 2011;
DCM: DH0T2CN;
Product of: Malaysia;
PCB Sticker: 2061-771672-F04 AD;
PCB Revision: 2060-771672-004 REV A;
;

Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 0 : A68/2664;
1 : 1 : A44/2628;
2 : 2 : A6C/2668;
3 : 3 : A4C/2636;

;

ROM F/W version: 0016001D;
Heads map: 0,1,2,3;
Preamp vendor: 0x0000;
Preamp revision: 0x0009;

;

HDD with Serial Number: WXK1A11A9686;
Model: WD5000BEKT-60KA9T0;
Date: 10 MAR 2011;
DCM: HANTJBBB;
Product of: Thailand;
PCB Sticker: 2061-771714-002 AC;
PCB Revision: 2060-771714-002 REV P1;

;

Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 0 : A43/2627;
1 : 1 : A14/2580;
2 : 2 : A2D/2605;
3 : 3 : A18/2584;
ROM F/W version……………………. : 00160015;
Heads map…………………………. : 0,1,2,3;
Preamp vendor……………………. : 0x0001;
Preamp revision………………….. : 0x0003;

;

HDD with Serial Number: WX81A60X2691;

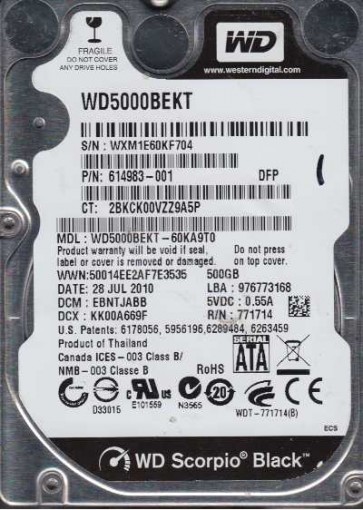

Model: WD5000BEKT-60KA9T0;
Date: 01 JUL 2010;
DCM: HBCTJABB;
Product of: Thailand;
PCB Sticker: 2061-771714-002 02P;
PCB Revision: 2060-771714-002 REV P1;
;

;
