Category: HDD

HDD with Serial Number: WXA1E51ZY950;
Model: WD5000BEKT-75KA9T0;
Date: 05 JUL 2011;
DCM: EBCTJBBB;
Product of: Thailand;
PCB Sticker: 771714-002 ACD24;
PCB Revision: 2060-771714-002 REV A;
;

Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 0 : A6C/2668;
1 : 1 : AD2/2770;
2 : 2 : A53/2643;
3 : 3 : ABB/2747;
ROM F/W version……………………. : 0016001A;
Heads map…………………………. : 0,1,2,3;
Preamp vendor……………………. : 0x0001;
Preamp revision………………….. : 0x0003;

HDD with Serial Number: WXM1E31ZZS48;
Model: WD5000BEKT-75KA9T0;
Date: 21 MAY 2011;
DCM: EBCTJBBB;
Product of: Thailand;
PCB Sticker: 771714-002 AC;
PCB Revision: 2060-771714-002 REV P1;
;

Micro Jogs;
——————————;
LH  : PH  : Micro Jog (Hex/Dec);
——————————;
0   : 0   : 9D5/2517;
1   : 1   : A90/2704;
2   : 2   : 9F9/2553;
3   : 3   : AA3/2723;
ROM F/W version……………………. : 00160016;
Heads map…………………………. : 0,1,2,3;
Preamp vendor……………………. : 0x0001;
Preamp revision………………….. : 0x0003;

;

Specifications:;
Model WD5000BEKT-60KA9T0;
SN WXM1E60KF704;
Date 28 JUL 2010;
DCM EBNTJABB;
Product of Thailand;
PCB Sticker: 2061-77174-002 02P;
PCB Revision: 2060-771714-002 REV P1;
;
;

;

HDD with Serial Number: WX41E4156444;
Model: WD5000BEKT-75KA9T0;
Date: 13 JUN 2011;
DCM: EHCTJBBB;
Product of: Thailand;
PCB Sticker: 771714-002 ACD24;
PCB Revision: 2060-771714-002 REV A;
;

Micro Jogs;
——————————;
LH  : PH  : Micro Jog (Hex/Dec);
——————————;
0   : 0   : A9E/2718;
1   : 1   : A77/2679;
2   : 2   : A5A/2650;
3   : 3   : A7D/2685;
ROM F/W version……………………. : 0016001A;
Heads map…………………………. : 0,1,2,3;
Preamp vendor……………………. : 0x0001;
Preamp revision………………….. : 0x0003;

;

HDD with Serial Number: WXA1A20U1579;
Model: WD5000BEKT-60KA9T0;
Date: 26 MAR 2010;
DCM: HACTJAB;
Product of: Thailand;
PCB Sticker: 2061-771714-000 03PD2;
PCB Revision: 2060-771714-000 rev p1;

;

Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 0 : A0B/2571;
1 : 1 : A52/2642;
2 : 2 : A3C/2620;
3 : 3 : AAD/2733;

;

ROM F/W version……………………. : 00140020;
Preamp vendor……………………… : 0x0001;
Preamp revision……………………. : 0x0003;

;

HDD with Serial Number: WX71C70H4817;
Model: WD5000BEKT-75KA9T0;
Date: 15 DEC 2010;
DCM: EHNTJABB;
Product of: Thailand;
PCB Sticker: 2061-771714-002 AC;
PCB Revision: 2060-771714-002 REV P1;
;
Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 0 : 9CF/2511;
1 : 1 : A35/2613;
2 : 2 : 9EA/2538;
3 : 3 : A33/2611;
;
ROM F/W version……………………. : 00160015;
Preamp vendor……………………… : 0x0001;
Preamp revision……………………. : 0x0003;

;

HDD with Serial Number: WXE1A60H6347;
Model: WD5000BEKT-60KA9T0;
Date: 11 JUL 2010;
DCM: HACTJABB;
Product of: Thailand;
PCB Sticker: 2061-77174-002 02P;
PCB Revision: 2060-771714-002 REV P1;
;

;

HDD #1 Specs:;
SN: WXL1A60N2455;
Model: WD5000BEKT-60KA9T0;
Date: 25 JUL 2010;
DCM: HACTJBNB ;
Product of: Thailand;
PCB Sticker: 2061-771714-002 02P;
PCB Revision: 2060-771714-002 REV P1;

;

;

HDD with Serial Number: WXE1A3185475;
Model: WD5000BEKT-60KA9T0;
Date: 02 MAY 2011;
DCM: HANTJABB;
Product of: Thailand;
PCB Sticker: 771714-002 AC;
PCB Revision: 2060-771714-002 REV P1;

;

Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 0 : A31/2609;
1 : 1 : 9D9/2521;
2 : 2 : A59/2649;
3 : 3 : 9F1/2545;

;

ROM F/W version: 00160016;
Heads map: 0,1,2,3;
Preamp vendor: 0x0001;
Preamp revision: 0x0003;

;

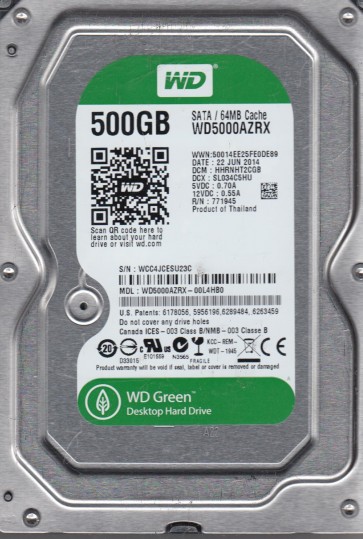

HDD with Serial Number: WCC4JCESU23C;
Model: WD5000AZRX-00L4HB0;
Date: 22 JUN 2014;
DCM: HHRNHT2CGB;
Product of: Thailand;
PCB Sticker: 771945-601 AD;
PCB Revision: 2060-771945-001 REV A;
;

Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 0 : 00/0;
1 : 1 : 00/0;
ROM F/W version……………………. : 0001004S;
Heads map…………………………. : 0,1;
Preamp vendor……………………. : 0x0000;
Preamp revision………………….. : 0x0003;

;

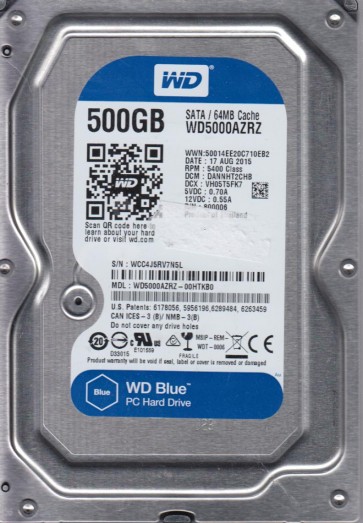

HDD with Serial Number: WCC4J5RV7N5L;
Model: WD5000AZRZ-00HTKB0;
Date: 17 AUG 2015;
DCM: DANNHT2CHB;
Product of: Thailand;
PCB Sticker: 800006-201 03R;
PCB Revision: 2060-800006-001 REV P1;
;

Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 1 : 00/0;

;

ROM F/W version:00010052;
Preamp vendor: 0x0000;
Preamp revision:0x0002;

;
