Category: HDD

HDD with Serial Number: WXEZ08T27068;
Model: WD800BEVE-00UYT0;
Date: 23 DEC 2008;
DCM: HBYTJBBB;
Product of: Thailand;
PCB Sticker: 2061-701510-000 AF;
PCB Revision: 2060-701510-000 REV A;

;

Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 0 : 8FB/2299;
1 : 1 : 921/2337;

;

ROM F/W version……………………. : 0001008P;
Preamp vendor……………………… : 0x0004;
Preamp revision……………………. : 0x0001;

;

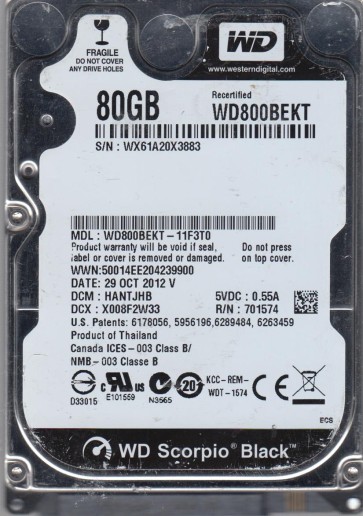

HDD with Serial Number: WX61A20X3883;
Model: WD800BEKT-11F3T0;
Date: 29 OCT 2012;
DCM: HANTJHB;
Product of: Thailand;
PCB Sticker: 2061-771574-A01 01P;
PCB Revision: 2060-771574-001 REV P1;
;

——————————;
LH  : PH  : Micro Jog (Hex/Dec);
——————————;
0   : 1   : 935/2357;
;
ROM F/W Version: 000800BJ;
Heads map: 1;
Preamp vendor: 0x0001;
Preamp revision: 0x0002

;

HDD with Serial Number: WXE1A9035502;
Model: WD800BEVE-00A0HT0;
Date: 17 OCT 2010;
DCM: HBYT2BNB;
Product of: Thailand;
PCB Sticker: 2061-701532-000 AL;
PCB Revision: 2060-701532-000 REV A;

;

Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 0 : 952/2386;
ROM F/W version……………………. : 0000000M;
Preamp vendor……………………… : 0x0002;
Preamp revision……………………. : 0x0001;

;

Specifications;

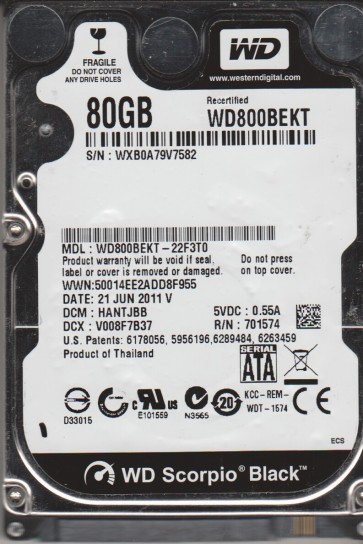

SN: WXB0A79V7582;
Model: WD800BEKT-22F3T0;
Date: 21 JUN 2011;
DCM: HANTJBB ;
Product of: Thailand;
PCB Sticker: 2061-701574-D00 AB;
PCB Revision: 2060-701574-001 REV A;

;

Micro Jogs;
——————————;
LH  : PH  : Micro Jog (Hex/Dec);
——————————;
0   : 0   : 8FF/2303;
ROM F/W version……………………. : 0008000H;
Preamp vendor……………………… : 0x0001;
Preamp revision……………………. : 0x0002;
;
;
;
;

;

HDD with Serial Number: WX61A31U2233;
Model: WD800BEVE-00A0HT0;
Date: 23 JUL 2011;
DCM: HHCT2HBB;
Product of: Thailand;
PCB Sticker: 2061-701532-000 AL;
PCB Revision: 2060-701532-000 REV A;
;

HDD with Serial Number: WXC1A71U4447;
Model: WD800BEVE-00A0HT0;
Date: 27 JUL 2011;
DCM: HHCT2HBB;
Product of: Thailand;
PCB Sticker: 2061-701532-000 AL;
PCB Revision: 2060-701532-000 REV A;
;

;

HDD with Serial Number: WX30AA9T4689;
Model: WD800BEKT-66F3T2;
Date: 15 NOV 2009;
DCM: HBNTJBBB;
Product of: Thailand;
PCB Sticker: 2061-701574-D00 AB;
PCB Revision: 2060-701574-001 REV A;
;

Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 1 : 93D/2365;

;

ROM F/W: 000800BD;
Heads map: 1;
Preamp vendor: 0x0001;
Preamp revision: 0x0002;

;

HDD with Serial Number: WX41A8154493;
Model: WD800BEVE-00A0HT0;
Date: 21 AUG 2011;
DCM: HHCT2HNB;
Product of: Thailand;
PCB Sticker: 2061-701532-000 AL;
PCB Revision: 2060-701532-000 REV A;
;

HDD with Serial Number: WX91A81R8210;
Model: WD800BEVE-00A0HT0;
Date: 01 SEP 2011;
DCM: HHCT2HNB;
Product of: Thailand;
PCB Sticker: 2061-701532-000 AL;
PCB Revision: 2060-701532-000 REV A;
;

;

HDD with Serial Number: WXJ0A99S2076;
Model: WD800BEKT-66F3T2;
Date: 21 OCT 2009;
DCM: HHCTJBNB;
Product of: Thailand;
PCB Sticker: 2061-701574-D00 AB;
PCB Revision: 2060-701574-001 REV A;

;

Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 1 : 95F/2399;

;

ROM F/W version……………………. : 000700FU;
Preamp vendor……………………… : 0x0001;
Preamp revision……………………. : 0x0002;

;

HDD with Serial Number: WXA1A31C3964;
Model: WD800BEVE-00A0HT0;
Date: 11 APR 2011;
DCM: HHNT2HBB;
Product of: Thailand;
PCB Sticker: 2061-701532-000 AL;
PCB Revision: 2060-701532-000 REV A;
;

Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 1 : 9D7/2519;
ROM F/W version……………………. : 0000000M;
Heads map…………………………. : 1;
Preamp vendor……………………. : 0x0002;
Preamp revision………………….. : 0x0001;

;

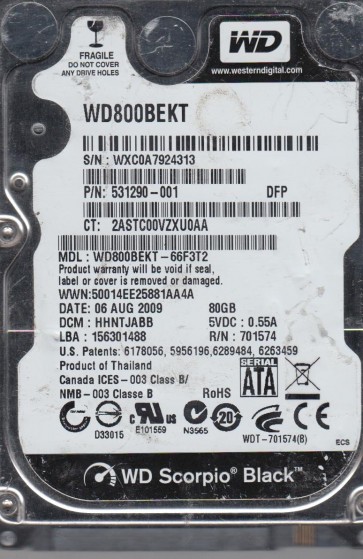

HDD with Serial Number: WXC0A7924313;
Model: WD800BEKT-66F3T2;
Date: 06 AUG 2009;
DCM: HHNTJABB;
Product of: Thailand;
PCB Sticker: 2061-701574-D00 AB;
PCB Revision: 2060-701574-001 REV A;
;
Micro Jogs;
;

;

——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 0 : 945/2373;
;
ROM F/W version……………………. : 000700FT;
Preamp vendor……………………… : 0x0001;
Preamp revision……………………. : 0x0002;

;
