Category: HDD

HDD #1 Specs:;
Serial Number: WCAS86679351;
Model: WD5000AVJB-63YUA0;
Date: 03 APR 2008;
DCM: HHRNHT2MAB;
Product of: Thailand;
PCB Sticker: 2061-701508-100 AD;
PCB Revision: 2060-701508-001 REV A;

;

Micro Jogs;
——————————;
LH  : PH  : Micro Jog (Hex/Dec);
——————————;
0   : 2   : A74/2676;
1   : 3   : A4C/2636;
2   : 4   : A64/2660;
3   : 5   : A3A/2618;
4   : 6   : A56/2646;
5   : 7   : A36/2614;
ROM F/W version……………………. : 0058007T;
Preamp vendor……………………… : 0x0000;
Preamp revision……………………. : 0x0002;
;
;
;
;
;
;

;

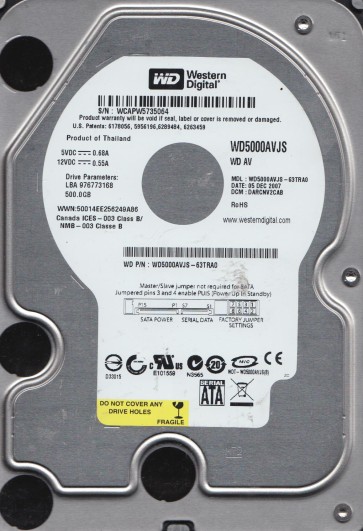

HDD #1 Specs:;
Serial Number: WCAPW5735064;
Model: WD5000AVJS-63TRA0;
Date: 05 DEC 2007;
DCM: DARCNV2CAB;
Product of: Thailand;
PCB Sticker: 2061-701477-100 AD;
PCB Revision: 2060-701477-002 REV A;

;

Micro Jogs;
——————————;
LH  : PH  : Micro Jog (Hex/Dec);
——————————;
0   : 2   : 68E/1678;
1   : 3   : 674/1652;
2   : 4   : 68A/1674;
3   : 5   : 670/1648;
4   : 6   : 678/1656;
5   : 7   : 696/1686;
ROM F/W version……………………. : 0021007N;
Preamp vendor……………………… : 0x0000;
Preamp revision……………………. : 0x0002;
;
;
;
;
;
;

;

HDD with Serial Number: WCAPW5751524;
Model: WD5000AVJS-63TRA0;
Date: 04 DEC 2007;
DCM: DHRCNV2CHB;
Product of: Thailand;
PCB Sticker: 2061-701477-100 AD;
PCB Revision: 2060-701477-002 REV A;
;

Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 2 : 696/1686;
1 : 3 : 63C/1596;
2 : 4 : 684/1668;
3 : 5 : 618/1560;
4 : 6 : 67A/1658;
5 : 7 : 640/1600;
ROM F/W version……………………. : 0021007N;
Heads map…………………………. : 2,3,4,5,6,7;
Preamp vendor……………………. : 0x0000;
Preamp revision………………….. : 0x0002;

;

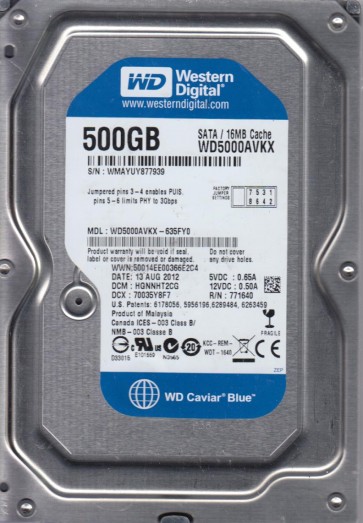

HDD with Serial Number: WMAYUY877939;
Model: WD5000AVKX-635FY0;
Date: 13 AUG 2012;
DCM: HGNNHT2CG;
Product of: Malaysia;
PCB Sticker: 2061-771640-S13 AD;
PCB Revision: 2060-771640-003 REV A;
;

Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 0 : CA7/3239;
1 : 1 : D2C/3372;

;

ROM F/W version:00030054;
Preamp vendor:0x0000;
Preamp revision:0x0005;

;

HDD with Serial Number: WCAUK1417638;
Model: WD5000AVVS-63H0B1;
Date: 15 JUN 2009;
DCM: DANNNT2CGB;
Product of: Thailand;
PCB Sticker: 2061-701590-A00 AE;
PCB Revision: 2060-701590-000 REV A;
;

Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 0 : ACE/2766;
1 : 1 : A40/2624;
2 : 2 : B04/2820;
ROM F/W version……………………. : 000500CV;
Heads map…………………………. : 0,1,2;
Preamp vendor……………………. : 0x0000;
Preamp revision………………….. : 0x0002;

;

HDD #1 Specs:;
SN: WCAUH1027637;
Model: WD5000AVVS-63H0B1;
Date: 21 APR 2009;
DCM: DHNNHTJMBN ;
Product of: Thailand;
PCB Sticker: 2061-701590-A00 AE;
PCB Revision: 2060-701590-000 REV A;

;

Micro Jogs;
——————————;
LH  : PH  : Micro Jog (Hex/Dec);
——————————;
0   : 0   : A72/2674;
1   : 1   : AA4/2724;
2   : 3   : AC0/2752;
ROM F/W version……………………. : 000500C2;
Preamp vendor……………………… : 0x0001;
Preamp revision……………………. : 0x0001;
;
;
;
;

;

HDD with Serial Number: WCAUK1143438;
Model: WD5000AVVS-63H0B1;
Date: 21 MAY 2009;
DCM: EANNNTJCBB;
Product of: Thailand;
PCB Sticker: 2061-701590-A00 AE;
PCB Revision: 2060-701590-000 REV A;

;

Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 0 : A3E/2622;
1 : 1 : A5A/2650;
2 : 2 : A1C/2588;

;

ROM F/W version……………………. : 000500C2;
Preamp vendor……………………… : 0x0001;
Preamp revision……………………. : 0x0001;

;

Specifications;
SN: WCAUK1211091;
Model: WD5000AVVS-63H0B1;
Date: 28 MAY 2009;
DCM: EHNNNTJMBB;
R/N 701590;
Product of: Thailand;
PCB Sticker: 2061-701590-A00 AE;
PCB Revision: 2060-701590-000 REV A;

;

ROM F/W version……………………. : 000500C2;
Preamp vendor……………………… : 0x0001;
Preamp revision……………………. : 0x0001;
Heads map…………………………. : 0,1,2;

;

Micro Jogs;
——————————;
LH  : PH  : Micro Jog (Hex/Dec);
——————————;
0   : 0   : A02/2562;
1   : 1   : 9F4/2548;
2   : 2   : A02/2562;
;
;

;

HDD with Serial Number: WCAV9EU60665;
Model: WD5000AVCS-982DY1;
Date: 22 FEB 2014;
DCM: HHRNHT2CHB;
Product of: Thailand;
PCB Sticker: 771640-W43 AJ;
PCB Revision: 2060-771640-003 REV A;
;

Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 0 : B69/2921;
1 : 1 : B6B/2923;
ROM F/W version……………………. : 0078002G;
Heads map…………………………. : 0,1;
Preamp vendor……………………. : 0x0000;
Preamp revision………………….. : 0x0005;

;

HDD with Serial Number: WCAV94LNZHEH;
Model: WD5000AVDS-63U7B1;
Date: 17 FEB 2015;
DCM: HARNNT2CHB;
Product of: Thailand;
PCB Sticker: 771640-803 AL;
PCB Revision: 2060-771640-003 REV A;
;

Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 0 : BA8/2984;
1 : 1 : B59/2905;
ROM F/W version……………………. : 0078002V;
Heads map…………………………. : 0,1;
Preamp vendor……………………… : 0x0000;
Preamp revision……………………. : 0x0005;

;
