Category: HDD

HDD with Serial Number: WMC1U3843363;
Model: WD5000AUDX-63WNHY0;
Date: 16 MAR 2012;
DCM: HHRNKVJAH;
Product of: Malaysia;
PCB Sticker: 771824-005 04P;
PCB Revision: 2060-771824-005 REV P1;
;

Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 0 : 12E1/4833;
1 : 1 : 11FF/4607;
ROM F/W version……………………. : 0030001V;
Heads map…………………………. : 0,1;
Preamp vendor……………………… : 0x0001;
Preamp revision……………………. : 0x0001;

;

HDD #1 Specs:;
Serial Number: WCASU5767437;
Model: WD5000AAVS-98ZTB0;
Date: 01 SEP 2008;
DCM: HHNCHTJMAN;
Product of: Thailand;
PCB Sticker: 2061-701444-J00 ADD1;
PCB Revision: 2060-701444-004 REV A;

;

Micro Jogs;
——————————;
LH  : PH  : Micro Jog (Hex/Dec);
——————————;
0   : 0   : BFD/3069;
1   : 1   : C8B/3211;
2   : 2   : C61/3169;
3   : 3   : C5D/3165;
ROM F/W version……………………. : 005C003H;
Preamp vendor……………………… : 0x0001;
Preamp revision……………………. : 0x0001;
;
;
;
;
;
;
;

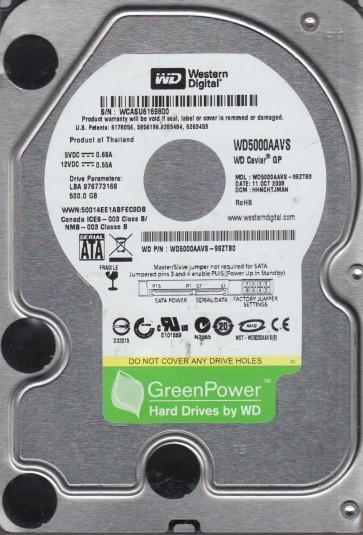

HDD with Serial Number: WCASU6169800;
Model: WD5000AAVS-98ZTB0;
Date: 11 OCT 2008;
DCM: HHNCHTJMAN;
Product of: Thailand;
PCB Sticker: 2061-701444-J00 AD;
PCB Revision: 2060-701444-004 REV A;
;

Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 0 : C11/3089;
1 : 1 : C8B/3211;
2 : 2 : C0B/3083;
3 : 3 : C85/3205;
ROM F/W version……………………. : 005C003J;
Heads map…………………………. : 0,1,2,3;
Preamp vendor…………………… : 0x0001;
Preamp revision…………………. : 0x0001;

;

HDD with Serial Number: WMC1U3515800;
Model: WD5000AUDX-56WNHY0;
Date: 23 MAR 2012;
DCM: HARNHVJMGB;
Product of: Thailand;
PCB Sticker: 771824-005 04P;
PCB Revision: 2060-771824-005 REV P1;
;

Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 0 : 1261/4705;
1 : 1 : 11EE/4590;
ROM F/W version……………………. : 0030001V;
Heads map…………………………. : 0,1;
Preamp vendor……………………. : 0x0001;
Preamp revision………………….. : 0x0001;

;

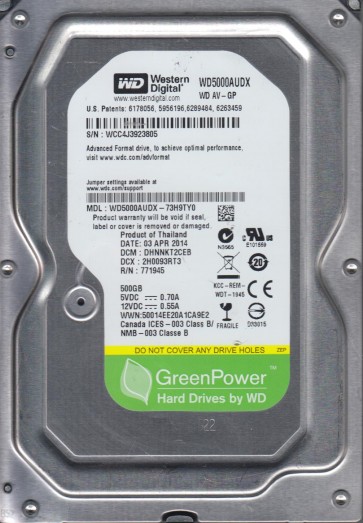

HDD with Serial Number: WCC4J3923805;
Model: WD5000AUDX-73H9TY0;
Date: 03 APR 2014;
DCM: DHNNKT2CEB;
Product of: Thailand;
PCB Sticker: 771945-601 AD;
PCB Revision: 2060-771945-001 REV A;
;

Micro Jogs;
——————————;
LH  : PH  : Micro Jog (Hex/Dec);
——————————;
0   : 1   : 00/0;
ROM F/W version……………………. : 0001004K;
Heads map…………………………. : 1;
Preamp vendor……………………. : 0x0000;
Preamp revision………………….. : 0x0003;
;
;
;

;

HDD with Serial Number: WCASU6002854;
Model: WD5000ABPS-01ZZB0;
Date: 27 SEP 2008;
DCM: EHNCHTJMHN;
Product of: Thailand;
PCB Sticker: 2061-701477-F00 AED1;
PCB Revision: 2060-701477-002 REV A;

;

Micro Jogs;
——————————;
LH  : PH  : Micro Jog (Hex/Dec);
——————————;
0   : 0   : CC1/3265;
1   : 1   : CFF/3327;
2   : 2   : CB1/3249;
3   : 3   : CFD/3325;
ROM F/W version……………………. : 005C008U;
Preamp vendor……………………… : 0x0001;
Preamp revision……………………. : 0x0001;
;
;
;
;

;

HDD with Serial Number: WMC1U1150945;
Model: WD5000AUDX-56WNHY0;
Date: 30 JAN 2012;
DCM: HBNCHVJMH;
Product of: Malaysia;
PCB Sticker: 771824-005 02P;
PCB Revision: 2060-771824-005 REV P1;
;

Micro Jogs;
——————————;
LH  : PH  : Micro Jog (Hex/Dec);
——————————;
0   : 0   : 1241/4673;
1   : 1   : 126F/4719

;

HDD with Serial Number: WCC4J2562513;
Model: WD5000AUDX-73H9TY0;
Date: 29 JAN 2014;
DCM: HANNKT2AHB;
Product of: Thailand;
PCB Sticker: 771945-601 AD;
PCB Revision: 2060-771945-001 REV P1;
;

Micro Jogs;
——————————;
LH  : PH  : Micro Jog (Hex/Dec);
——————————;
0   : 0   : 00/0;
ROM F/W version……………………. : 0001003S;
Heads map…………………………. : 0;
Preamp vendor……………………… : 0x0000;
Preamp revision……………………. : 0x0003;
;
;
;
;

;

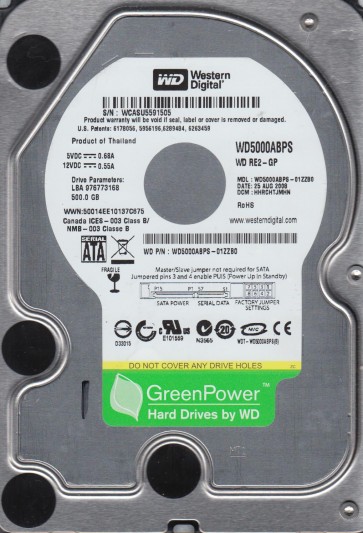

HDD with Serial Number: WCASU5591505;
Model: WD5000ABPS-01ZZB0;
Date: 25 AUG 2008;
DCM: HHRCHTJMHN;
Product of: Thailand;
PCB Sticker: 2061-701477-F00 AED1;
PCB Revision: 2060-701477-002 REV A;

;

Micro Jogs;
——————————;
LH  : PH  : Micro Jog (Hex/Dec);
——————————;
0   : 0   : CA9/3241;
1   : 1   : C77/3191;
2   : 2   : CA9/3241;
3   : 3   : CF7/3319;
ROM F/W version……………………. : 005C008U;
Preamp vendor……………………… : 0x0001;
Preamp revision……………………. : 0x0001;
;
;
;
;

;

HDD with Serial Number: WMC1U0499874;
Model: WD5000AUDX-56WNHY0;
Date: 22 JAN 2012;
DCM: HHNCHVJAH;
Product of: Malaysia;
PCB Sticker: 771824-G05 01P;
PCB Revision: 2060-771824-005 REV P1;
;

Micro Jogs;
——————————;
LH  : PH  : Micro Jog (Hex/Dec);
——————————;
0   : 0   : 12C6/4806;
1   : 1   : 1223/4643;
ROM F/W version……………………. : 0030001E;
Heads map…………………………. : 0,1;
Preamp vendor……………………. : 0x0001;
Preamp revision………………….. : 0x0001;
;
;
;

;

HDD with Serial Number: WCAV9K4N6V87;
Model: WD5000AVCS-612DY1;
Date: 02 JUL 2014;
DCM: HANNNT2AHB;
Product of: Thailand;
PCB Sticker: 2061-771640-803 AK;
PCB Revision: 2060-771640-003 REV A;
;

Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 0 : B10/2832;
1 : 1 : B34/2868;
ROM F/W version……………………. : 0078002G;
Heads map…………………………. : 0,1;
Preamp vendor……………………… : 0x0000;
Preamp revision……………………. : 0x0005;

;
