Category: HDD

HDD with Serial Number: WCAPW5829366;
Model: WD5000ABYS-01TNA0;
Date: 08 FEB 2008;
DCM: DARCHV2AAB;
Product of: Thailand;
PCB Sticker: 2061-701477-900 AE;
PCB Revision: 2060-701477-002 REV A;
;

Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 2 : 69E/1694;
1 : 3 : 652/1618;
2 : 4 : 6AA/1706;
3 : 5 : 660/1632;
4 : 6 : 658/1624;
5 : 7 : 630/1584;
ROM F/W version……………………. : 00110090;
Heads map…………………………. : 2,3,4,5,6,7;
Preamp vendor……………………. : 0x0000;
Preamp revision………………….. : 0x0002;

;

HDD with Serial Number: WMC1U3680379;
Model: WD5000AUDX-56WNHY0;
Date: 02 MAR 2012;
DCM: HHRCHVJCE;
Product of: Malaysia;
PCB Sticker: 771824-005 04P;
PCB Revision: 2060-771824-005 REV P1;
;

Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 0 : 12D4/4820;
1 : 1 : 12EA/4842;

;

;
ROM F/W version: 0030001J;
Heads map: 0,1;
Preamp vendor: 0x0001;
Preamp revision: 0x0001;

;

HDD with Serial Number: WCAV9FF28135;
Model: WD5000AVCS-612DY1;
Date: 04 MAY 2014;
DCM: HARNHT2AHB;
Product of: Thailand;
PCB Sticker: 771640-803 AK;
PCB Revision: 2060-771640-003 REV A;
;

Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 0 : AD4/2772;
1 : 1 : A53/2643;
ROM F/W version……………………. : 0078002G;
Heads map…………………………. : 0,1;
Preamp vendor……………………… : 0x0000;
Preamp revision……………………. : 0x0005;

;

HDD with Serial Number: WCAPW5841845;
Model: WD5000ABYS-01TNA0;
Date: 04 FEB 2008;
DCM: DARCHV2ABB;
Product of: Thailand;
PCB Sticker: 2061-701477-900 AE;
PCB Revision: 2060-701477-002 REV A;
;

Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 2 : 69C/1692;
1 : 3 : 630/1584;
2 : 4 : 684/1668;
3 : 5 : 638/1592;
4 : 6 : 68A/1674;
5 : 7 : 61C/1564;
ROM F/W version……………………. : 00110090;
Heads map…………………………. : 2,3,4,5,6,7;
Preamp vendor……………………. : 0x0000;
Preamp revision………………….. : 0x0002;

;

HDD with Serial Number: WMC1U3419661;
Model: WD5000AUDX-56WNHY0;
Date: 14 MAR 2012;
DCM: HHRNKVJMHB;
Product of: Thailand;
PCB Sticker: 771824-005 04P;
PCB Revision: 2060-771824-005 REV P1;
;

Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 0 : 12B8/4792;
1 : 1 : 1395/5013;
ROM F/W version……………………. : 0030001V;
Heads map…………………………. : 0,1;
Preamp vendor……………………… : 0x0001;
Preamp revision……………………. : 0x0001;

;

HDD with Serial Number: WCAPW5032609;
Model: WD5000ABYS-01TNA0;
Date: 14 SEP 2007;
DCM: DBNCHV2AHB;
Product of: Thailand;
PCB Sticker: 2061-701477-900 AA;
PCB Revision: 2060-701477-002 REV A;
;

Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 2 : 670/1648;
1 : 3 : 674/1652;
2 : 4 : 674/1652;
3 : 5 : 6A0/1696;
4 : 6 : 6A8/1704;
5 : 7 : 6A0/1696;
ROM F/W version……………………. : 00110090;
Heads map…………………………. : 2,3,4,5,6,7;
Preamp vendor……………………. : 0x0000;
Preamp revision………………….. : 0x0001;

;

HDD with Serial Number: WMC1U1703239;
Model: WD5000AUDX-57WNHY0;
Date: 07 FEB 2012;
DCM: HANCHV2AH;
Product of: Malaysia;
PCB Sticker: 771824-005 04P;
PCB Revision: 2060-771824-005 REV P1;
;

Micro Jogs;
——————————;
LH  : PH  : Micro Jog (Hex/Dec);
——————————;
0   : 0   : 11D0/4560;
1   : 1   : 1204/4612;
ROM F/W version……………………. : 0030001J;
Heads map…………………………. : 0,1;
Preamp vendor……………………… : 0x0000;
Preamp revision……………………. : 0x0003;
;
;
;
;

;

HDD with Serial Number: WCAPW5826156;
Model: WD5000ABYS-01TNA0;
Date: 08 FEB 2008;
DCM: DHRCHV2AHB;
Product of: Thailand;
PCB Sticker: 2061-701477-900 AE;
PCB Revision: 2060-701477-002 REV A;
;

Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 2 : 68E/1678;
1 : 3 : 61E/1566;
2 : 4 : 692/1682;
3 : 5 : 610/1552;
4 : 6 : 68C/1676;
5 : 7 : 60C/1548;
ROM F/W version……………………. : 00110090;
Heads map…………………………. : 2,3,4,5,6,7;
Preamp vendor……………………. : 0x0000;
Preamp revision………………….. : 0x0001;

;

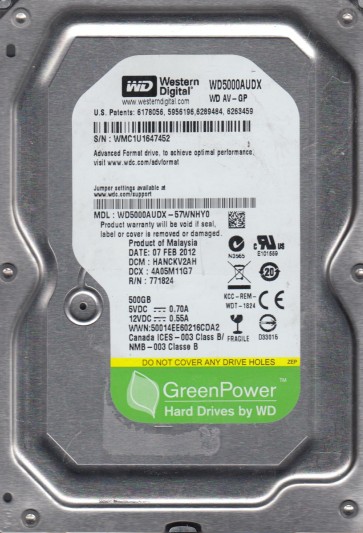

HDD with Serial Number: WMC1U1647452;
Model: WD5000AUDX-57WNHY0;
Date: 07 FEB 2012;
DCM: HANCKV2AH;
Product of: Malaysia;
PCB Sticker: 771824-005 04P;
PCB Revision: 2060-771824-005 REV P1;
;
Micro Jogs;
;

;

——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 0 : 1247/4679;
1 : 1 : 1210/4624;
;
ROM F/W version……………………. : 0030001J;
Preamp vendor……………………… : 0x0000;
Preamp revision……………………. : 0x0003;

;

HDD with Serial Number: WCAPW4935735;
Model: WD5000ABYS-01TNA0;
Date: 15 SEP 2007;
DCM: DHRCNV2ABB;
Product of: Thailand;
PCB Sticker: 2061-701477-900 04P;
PCB Revision: 2060-701477-002 REV A;
;

Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 2 : 67A/1658;
1 : 3 : 670/1648;
2 : 4 : 67A/1658;
3 : 5 : 66C/1644;
4 : 6 : 638/1592;
5 : 7 : 66C/1644;
ROM F/W version……………………. : 00110090;
Heads map…………………………. : 2,3,4,5,6,7;
Preamp vendor……………………. : 0x0000;
Preamp revision………………….. : 0x0001;

;
