Category: HDD

HDD with Serial Number: WCC2EU063567;
Model: WD5000AAKX-00ERMA0;
Date: 31 JUL 2013;
DCM: DHNNHT2CH;
Product of: Thailand;
PCB Sticker: 2061-771640-103 AC;
PCB Revision: 2060-771640-003 REV A;
;

Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 0 : BC7/3015;
1 : 1 : BD8/3032;
ROM F/W version……………………. : 0005000K;
Heads map…………………………. : 0,1;
Preamp vendor……………………. : 0x0000;
Preamp revision………………….. : 0x0005;

;

HDD with Serial Number: WCC2EPC11480;
Model: WD5000AAKX-00ERMA0;
Date: 11 APR 2014;
DCM: DHNNKTJMH;
Product of: Thailand;
PCB Sticker: 2061-771640-003 AK;
PCB Revision: 2060-771640-003 REV A;
;

Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 0 : A29/2601;
1 : 1 : A1E/2590;
ROM F/W version……………………. : 00050026;
Heads map…………………………. : 0,1;
Preamp vendor……………………. : 0x0001;
Preamp revision………………….. : 0x0001;

;

HDD with Serial Number: WMC2E0473972;
Model: WD5000AAKX-00ERMA0;
Date: 17 JUL 2012;
DCM: DHRNKT2CH;
Product of: Malaysia;
PCB Sticker: 2061-771640-103 AA;
PCB Revision: 2060-771640-003 REV A;
;

Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 0 : CF5/3317;
1 : 1 : D11/3345;
ROM F/W version……………………. : 0002000G;
Heads map…………………………. : 0,1;
Preamp vendor……………………. : 0x0000;
Preamp revision………………….. : 0x0005;

;

HDD with Serial Number: WCAYUDP22571;
Model: WD5000AAKX-003CA0;
Date: 06 SEP 2011;
DCM: HHRNHT2AHN;
Product of: Thailand;
PCB Sticker: 2061-771640-S13 AA;
PCB Revision: 2060-771640-003 REV A;

;

Micro Jogs;
——————————;
LH  : PH  : Micro Jog (Hex/Dec);
——————————;
0   : 0   : CE7/3303;
1   : 1   : C32/3122;
ROM F/W version……………………. : 0003002P;
Preamp vendor……………………… : 0x0000;
Preamp revision……………………. : 0x0004;
;
;
;
;

;

HDD with Serial Number: WCC2ESH88819;
Model: WD5000AAKX-00ERMA0;
Date: 26 MAY 2014;
DCM: HANNHT2AH;
Product of: Thailand;
PCB Sticker: 771640-003 AK;
PCB Revision: 2060-771640-003 REV A;
;

Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 0 : A6C/2668;
1 : 1 : A7E/2686;
ROM F/W version……………………. : 0005001E;
Heads map…………………………. : 0,1;
Preamp vendor……………………. : 0x0000;
Preamp revision………………….. : 0x0005;

;

HDD with Serial Number: WCAYUHX55493;
Model: WD5000AAKX-003CA0;
Date: 09 FEB 2012;
DCM: HHRNKTJMGB;
Product of: Thailand;
PCB Sticker: 2061-771640-S03 AC;
PCB Revision: 2060-771640-003 REV A;
;

Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 0 : C97/3223;
1 : 1 : C70/3184;
ROM F/W version……………………. : 00030036;
Heads map…………………………. : 0,1;
Preamp vendor……………………. : 0x0001;
Preamp revision………………….. : 0x0001;

;

HDD with Serial Number: WMC2E0LAK4F7;
Model: WD5000AAKX-00ERMA0;
Date: 18 APR 2015;
DCM: HARNKT2CH;
Product of: Malaysia;
PCB Sticker: 771640-103 AP;
PCB Revision: 2060-771640-003 REV A;
;

Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 0 : B4B/2891;
1 : 1 : B56/2902;

;

ROM F/W: 0005003P;
Heads map: 0,1;
Preamp vendor: 0x0000;
Preamp revision: 0x0005;

;

HDD with Serial Number: WCAWFE419144;
Model: WD5000AAKX-009FA0;
Date: 14 JUL 2012;
DCM: HHNNHTJCHB;
Product of: Thailand;
PCB Sticker: 771640-105 AE;
PCB Revision: 2060-771640-005 REV A;

;

Micro Jogs;
——————————;
LH  : PH  : Micro Jog (Hex/Dec);
——————————;
0   : 0   : CD5/3285;
1   : 1   : CA8/3240;
ROM F/W version……………………. : 0000007P;
Preamp vendor……………………… : 0x0001;
Preamp revision……………………. : 0x0001;
;
;
;
;

;

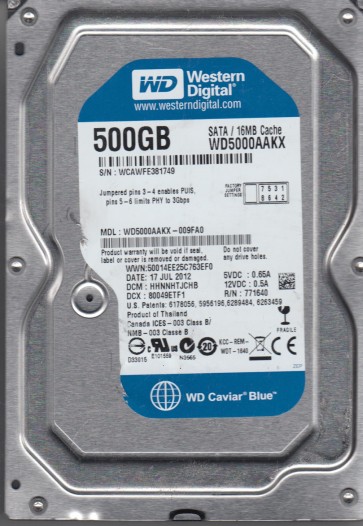

HDD with Serial Number: WCAWFE381749;
Model: WD5000AAKX-009FA0;
Date: 17 JUL 2012;
DCM: HHNNHTJCHB;
Product of: Thailand;
PCB Sticker: 771640-105 AE;
PCB Revision: 2060-771640-005 REV A;

;

Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 0 : C45/3141;
1 : 1 : CE2/3298;
ROM F/W version……………………. : 0000007P;
Heads map…………………………. : 0,1;
Preamp vendor……………………… : 0x0001;
Preamp revision……………………. : 0x0001;

;

HDD with Serial Number: WCC2EF926362;
Model: WD5000AAKX-00ERMA0;
Date: 31 JUL 2013;
DCM: HBRNHTJMG;
Product of: Thailand;
PCB Sticker: 2061-771640-103 ACD3;
PCB Revision: 2060-771640-003 REV A;
;

Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 0 : C5B/3163;
1 : 1 : C2D/3117;
ROM F/W version……………………. : 0005000K;
Heads map…………………………. : 0,1;
Preamp vendor…………………… : 0x0001;
Preamp revision…………………. : 0x0001;

;

HDD with Serial Number: WMC2E3375865;
Model: WD5000AAKX-00ERMA0;
Date: 24 OCT 2012;
DCM: DANNHTJCE;
Product of: Malaysia;
PCB Sticker: 2061-771640-003 AA;
PCB Revision: 2060-771640-003 REV A;
;

Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 0 : DC1/3521;
1 : 1 : D0D/3341;
ROM F/W version……………………. : 00050009;
Heads map…………………………. : 0,1;
Preamp vendor……………………. : 0x0001;
Preamp revision………………….. : 0x0001;

;
