Category: HDD

HDD with Serial Number: WCAWF0279985;
Model: WD5000AAKS-75V0A0;
Date: 15 DEC 2009;
DCM: HGRCHTJMHN;
Product of: Thailand;
PCB Sticker: 2061-701640-K02 05PD2;
PCB Revision: 2060-701640-002 REV A;
;

——————————;
LH  : PH  : Micro Jog (Hex/Dec);
——————————;
0   : 0   : C95/3221;
1   : 1   : C19/3097;
;
ROM F/W Version: 00110054;
Heads map:  0,1;
Preamp vendor: 0x0001;
Preamp revision: 0x0001

;

HDD with Serial Number: WCAWF0091465;
Model: WD5000AAKS-75V0A0;
Date: 01 DEC 2009;
DCM: HGRCNTJMHN;
Product of: Thailand;
PCB Sticker: 2061-701640-K02 05PD2;
PCB Revision: 2060-701640-002 REV A;
;

Micro Jogs;
——————————;
LH  : PH  : Micro Jog (Hex/Dec);
——————————;
0   : 0   : BF0/3056;
1   : 1   : D1A/3354;
ROM F/W version……………………. : 0011003M;
Heads map…………………………. : 0,1;
Preamp vendor……………………. : 0x0001;
Preamp revision………………….. : 0x0001;

;

HDD #1 Specs:;
Serial Number: WCAWF4328954;
Model: WD5000AAKS-75V0A0;
Date: 24 MAR 2010;
DCM: HGRNHTJMGN;
Product of: Thailand;
PCB Sticker: 2061-701640-L02 01PD5;
PCB Revision: 2060-701640-002 REV A;

;

Micro Jogs;
——————————;
LH  : PH  : Micro Jog (Hex/Dec);
——————————;
0   : 0   : C45/3141;
1   : 1   : C87/3207;
2   : 2   : ADC/2780;
3   : 3   : ADC/2780;

;

ROM F/W version……………………. : 00120016;
Preamp Vendor……………………… : 0001;
Preamp Rev………………………… : 0001;

;

HDD with Serial Number: WD-WCASY4366519;
Model: WD5000AAKS-75A7B2;
Date: 28 FEB 2009;
DCM: HHRNHTJCHB;
Product of: Thailand;
PCB Sticker: 2061-701590-L00 AD;
PCB Revision: 2060-701590-000 REV A;
;

Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 0 : A7C/2684;
1 : 1 : A5E/2654;
2 : 2 : A50/2640;
3 : 3 : A4C/2636;

;

;
ROM F/W version: 000500BU;
Heads map:0,1,2,3;
Preamp vendor: 0x0001;
Preamp revision: 0x0001;

;

HDD with Serial Number: WCAWF0142288;
Model: WD5000AAKS-75V0A0;
Date: 08 DEC 2009;
DCM: HGRNNTJAHN;
Product of: Thailand;
PCB Sticker: 2061-701640-K02 05PD1;
PCB Revision: 2060-701640-002 REV A;
;

Micro Jogs;
——————————;
LH  : PH  : Micro Jog (Hex/Dec);
——————————;
0   : 0   : BA9/2985;
1   : 1   : C03/3075;
ROM F/W version……………………. : 00110054;
Heads map…………………………. : 0,1;
Preamp vendor……………………. : 0x0001;
Preamp revision………………….. : 0x0001;

;

HDD with Serial Number: WCASY7403157;
Model: WD5000AAKS-75A7B2;
Date: 09 SEP 2009;
DCM: HHRNNT2MBN;
Product of: Thailand;
PCB Sticker: 2061-701590-L00 AD;
PCB Revision: 2060-701590-000 REV A;
;

Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 0 : 9C2/2498;
1 : 1 : A0E/2574;
2 : 2 : 9CA/2506;
3 : 3 : A66/2662;

;

;
ROM F/W version: 000500CT;
Heads map: 0,1,2,3;
Preamp vendor: 0x0000;
Preamp revision: 0x0002;

;

HDD with Serial Number: WCAWFA085964;
Model: WD5000AAKS-75V0A0;
Date: 20 NOV 2012;
DCM: HGRNNTJCGN;
Product of: Thailand;
PCB Sticker: 2061-771640-L03 AB;
PCB Revision: 2060-771640-003 REV P1;
;

Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 0 : CE4/3300;
1 : 1 : E0C/3596;
ROM F/W version……………………. : 00120024;
Heads map…………………………. : 0,1;
Preamp vendor……………………… : 0x0001;
Preamp revision……………………. : 0x0001;

;

HDD with Serial Number: WCAPW1089556;
Model: WD5000AAKS-75TMA0;
Date: 15 APR 2007;
DCM: HANCNV2CAB;
Product of: Thailand;
PCB Sticker: 2061-701477-000 AC;
PCB Revision: 2060-701477-001 REV A;
;

Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 2 : 6B0/1712;
1 : 3 : 698/1688;
2 : 4 : 6A0/1696;
3 : 5 : 69E/1694;
4 : 6 : 6A0/1696;
5 : 7 : 69A/1690;
ROM F/W version……………………. : 0011008P;
Heads map…………………………. : 2,3,4,5,6,7;
Preamp vendor……………………. : 0x0000;
Preamp revision………………….. : 0x0001;

;

HDD with Serial Number: WMAWF1214990;
Model: WD5000AAKS-75V0A0;
Date: 08 NOV 2009;
DCM: HHRNHTJAA;
Product of: Malaysia;
PCB Sticker: 2061-701640-202 04PD5;
PCB Revision: 2060-701640-002 REV A;
;

Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 0 : CB1/3249;
1 : 1 : C21/3105;
ROM F/W version……………………. : 0011003G;
Heads map…………………………. : 0,1;
Preamp vendor…………………….. : 0x0001;
Preamp revision…………………… : 0x0001;

;

HDD #1 Specs:;
SN: WCAPW1935128;
Model: WD5000AAKS-75TMA0;
Date: 04 MAY 2007;
DCM: HARCHV2CAB ;
Product of: Thailand;
PCB Sticker: 2061-701477-800 AC;
PCB Revision: 2060-701477-001 REV A;

;

Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 2 : 6AC/1708;
1 : 3 : 69C/1692;
2 : 4 : 6A8/1704;
3 : 5 : 696/1686;
4 : 6 : 642/1602;
5 : 7 : 68A/1674;

;

ROM F/W version……………………. : 0011008P;
Preamp vendor……………………… : 0x0000;
Preamp revision……………………. : 0x0001;

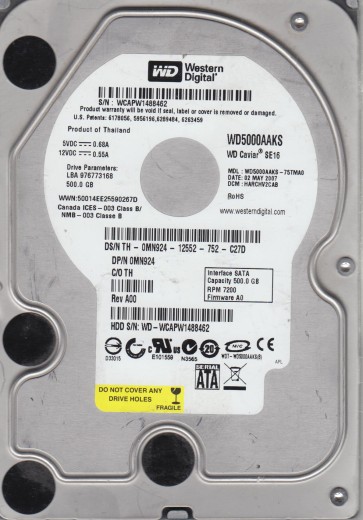

HDD with Serial Number: WCAPW1488462;
Model: WD5000AAKS-75TMA0;
Date: 02 MAY 2007;
DCM: HARCHV2CAB;
Product of: Thailand;
PCB Sticker: 2061-701477-800 AC;
PCB Revision: 2060-701477-001 REV A;
;

——————————;
LH  : PH  : Micro Jog (Hex/Dec);
——————————;
0   : 2   : 6A4/1700;
1   : 3   : 6B8/1720;
2   : 4   : 692/1682;
3   : 5   : 716/1814;
4   : 6   : 6A8/1704;
5   : 7   : 6E8/1768;
;
ROM F/W Version: 0011008P;
Heads map: 2,3,4,5,6,7;
Preamp vendor: 0x0000;
Preamp revision: 0x0001

;
