Category: HDD

HDD with Serial Number: WCAYUW400538;
Model: WD5000AAKS-60WWPA0;
Date: 11 JUN 2011;
DCM: DBNNHTJMHN;
Product of: Thailand;
PCB Sticker: 2061-771640-S13 AA;
PCB Revision: 2060-771640-003 REV A;
;

Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 0 : C8F/3215;
1 : 1 : CE5/3301;
ROM F/W version……………………. : 00030010;
Heads map…………………………. : 0,1;
Preamp vendor……………………… : 0x0001;
Preamp revision……………………. : 0x0001;

;

HDD with Serial Number: WCAYUCR82836;
Model: WD5000AAKS-60WWPA0;
Date: 10 AUG 2011;
DCM: DBRNHT2AHN;
Product of: Thailand;
PCB Sticker: 771640-S13 AA;
PCB Revision: 2060-771640-003 REV A;
;

Micro Jogs;
——————————;
LH  : PH  : Micro Jog (Hex/Dec);
——————————;
0   : 0   : C73/3187;
1   : 1   : CC4/3268;
ROM F/W version……………………. : 0003002P;
Heads map…………………………. : 0,1;
Preamp vendor……………………. : 0x0000;
Preamp revision………………….. : 0x0004;
;
;
;

;

HDD with Serial Number: WCAYUCD79063;
Model: WD5000AAKS-60WWPA0;
Date: 02 AUG 2011;
DCM: DGNNHT2AHN;
Product of: Thailand;
PCB Sticker: 2061-771640-S13 AA;
PCB Revision: 2060-771640-003 REV A;

;

Micro Jogs;
——————————;
LH  : PH  : Micro Jog (Hex/Dec);
——————————;
0   : 0   : CFB/3323;
1   : 1   : CC1/3265;
ROM F/W version……………………. : 0003002P;
Preamp vendor……………………… : 0x0000;
Preamp revision……………………. : 0x0004;
;
;
;
;

;

HDD with Serial Number: WCAYUW157658;
Model: WD5000AAKS-60WWPA0;
Date: 12 JUN 2011;
DCM: DGRNKTJMHN;
Product of: Thailand;
PCB Sticker: 2061-771640-S13 AA;
PCB Revision: 2060-771640-003 REV A;
;

Micro Jogs;
——————————;
LH  : PH  : Micro Jog (Hex/Dec);
——————————;
0   : 0   : CB3/3251;
1   : 1   : D80/3456;
ROM F/W version……………………. : 00030010;
Heads map…………………………. : 0,1;
Preamp vendor……………………. : 0x0001;
Preamp revision………………….. : 0x0001;
;
;
;

;

HDD with Serial Number: WCAYUCR79438;
Model: WD5000AAKS-60WWPA0;
Date: 10 AUG 2011;
DCM: DHRNHT2AHN;
Product of: Thailand;
PCB Sticker: 771640-S13 AA;
PCB Revision: 2060-771640-003 REV A;
;

Micro Jogs;
——————————;
LH  : PH  : Micro Jog (Hex/Dec);
——————————;
0   : 0   : C7C/3196;
1   : 1   : C5D/3165;
ROM F/W version……………………. : 0003002P;
Heads map…………………………. : 0,1;
Preamp vendor……………………. : 0x0000;
Preamp revision………………….. : 0x0004;

;

HDD with Serial Number: WCAYUCE28912;
Model: WD5000AAKS-60WWPA0;
Date: 03 AUG 2011;
DCM: DHRNHTJMHN;
Product of: Thailand;
PCB Sticker: 771640-S13 AA;
PCB Revision: 2060-771640-003 REV A;
;

Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 0 : C62/3170;
1 : 1 : CE0/3296;
ROM F/W version……………………. : 0003002P;
Heads map…………………………. : 0,1;
Preamp vendor……………………. : 0x0001;
Preamp revision………………….. : 0x0001;

;

Specifications;
SN: WCAYUW844791;
Model: WD5000AAKS-60WWPA0;
Date: 19 JUN 2011;
DCM: DHRNKTJAHN ;
Product of: Thailand;
PCB Sticker: 2061-771640-S13 AA;
PCB Revision: 2060-771640-003 REV A;

;

;

HDD with Serial Number: WCAYUCS83920;
Model: WD5000AAKS-60WWPA0;
Date: 10 AUG 2011;
DCM: HANNHT2AHN;
Product of: Thailand;
PCB Sticker: 2061-771640-S13 AA;
PCB Revision: 2060-771640-003 REV A;
;

Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 0 : C46/3142;
1 : 1 : D16/3350;

;

ROM F/W version:0003002P;
Preamp vendor:0x0000;
Preamp revision:0x0004;

;

HDD #1 Specs:;
Serial Number: WCAPW1533579;
Model: WD5000AAKS-41TMA0;
Date: 09 APR 2007;
DCM: HANCNV2CHB;
Product of: Thailand;
PCB Sticker: 2061-701477-800 AC;
PCB Revision: 2060-701477-001 REV A;

;

Micro Jogs;
——————————;
LH  : PH  : Micro Jog (Hex/Dec);
——————————;
0   : 2   : 6A6/1702;
1   : 3   : 670/1648;
2   : 4   : 602/1538;
3   : 5   : 680/1664;
4   : 6   : 682/1666;
5   : 7   : 658/1624;
ROM F/W version……………………. : 0011008P;
Preamp vendor……………………… : 0x0000;
Preamp revision……………………. : 0x0001;
;
;
;
;
;
;

;

Specifications;

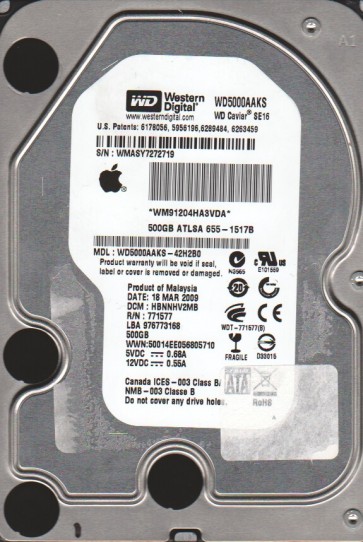

SN: WMASY7272719;
Model: WD5000AAKS-42H2B0;
Date: 18 MAR 2009;
DCM: HBNNHV2MB ;
Product of: Malaysia;
PCB Sticker: 2061-771577-900 04P;
PCB Revision: 2060-771577-001 REV A;

;

Micro Jogs;
——————————;
LH  : PH  : Micro Jog (Hex/Dec);
——————————;
0   : 0   : 8D0/2256;
1   : 1   : 8E0/2272;
2   : 2   : 8B8/2232;
3   : 3   : 8C6/2246;
ROM F/W version……………………. : 000500BA;
Preamp vendor……………………… : 0x0000;
Preamp revision……………………. : 0x0002;
;
;
;
;
;
;

;
