Category: HDD

HDD with Serial Number: WCASY2306128;
Model: WD5000AAKS-60A7B0;
Date: 08 SEP 2008;
DCM: HHRNHT2MBN;
Product of: Thailand;
PCB Sticker: 2061-701537-E00 07PD3;
PCB Revision: 2060-701537-003 REV A;
;
ROM F/W: 00050089;
Heads map: 0,1,2,3;
Preamp vendor: 0x0000;
Preamp revision: 0x0002;

;

Micro Jogs;
——————————;
LH  : PH  : Micro Jog (Hex/Dec);
——————————;
0   : 0   : 9CE/2510;
1   : 1   : 957/2391;
2   : 2   : 9F9/2553;
3   : 3   : 9D6/2518;
;
;

;

HDD with Serial Number: WCAPW5575655;
Model: WD5000AAKS-41TMA0;
Date: 08 NOV 2007;
DCM: HBNCHV2AHB;
Product of: Thailand;
PCB Sticker: 2061-701477-900 AB;
PCB Revision: 2060-701477-002 REV A;
;

Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 2 : 692/1682;
1 : 3 : 6AE/1710;
2 : 4 : 66E/1646;
3 : 5 : 69C/1692;
4 : 6 : 68A/1674;
5 : 7 : 670/1648;
ROM F/W version……………………. : 00110090;
Heads map…………………………. : 2,3,4,5,6,7;
Preamp vendor……………………. : 0x0000;
Preamp revision………………….. : 0x0002;

;

HDD with Serial Number: WCASY6779586;
Model: WD5000AAKS-42H2B0;
Date: 10 AUG 2009;
DCM: HGRNNV2MAB;
Product of: Thailand;
PCB Sticker: 2061-771577-900 04P;
PCB Revision: 2060-771577-001 REV A;
;

;

Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 0 : 8E2/2274;
1 : 1 : 928/2344;
2 : 2 : 8CE/2254;
3 : 3 : 934/2356;
;
ROM F/W version……………………. : 000500BA;
Preamp vendor……………………… : 0x0000;
Preamp revision……………………. : 0x0002;

;

HDD with Serial Number: WCAPW3013352;
Model: WD5000AAKS-41TMA0;
Date: 03 JUL 2007;
DCM: HHNCNV2CHB;
Product of: Thailand;
PCB Sticker: 2061-701477-800 AF;
PCB Revision: 2060-701477-001 REV A;

;

Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 2 : 682/1666;
1 : 3 : 64A/1610;
2 : 4 : 694/1684;
3 : 5 : 64C/1612;
4 : 6 : 68E/1678;
5 : 7 : 67C/1660;
ROM F/W version……………………. : 0011008P;
Heads map…………………………. : 2,3,4,5,6,7;
Preamp vendor……………………. : 0x0000;
Preamp revision………………….. : 0x0001;

;

HDD #1 Specs:;
Serial Number: WCAWF7865609;
Model: WD5000AAKS-55V0A0;
Date: 04 SEP 2010;
DCM: DARNHTJCGN;
Product of: Thailand;
PCB Sticker: 2061-701640-L02 AB;
PCB Revision: 2060-701640-002 REV A;

;

;

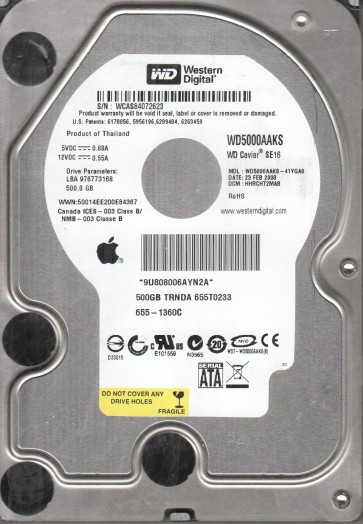

Specifications;
SN: WCAS84072623;
Model: WD5000AAKS-41YGA0;
Date: 23 FEB 2008;
DCM: HHRCHT2MAB ;
Product of: Thailand;
PCB Sticker: 2061-701477-900 AD;
PCB Revision: 2060-701477-002 REV A;

;

Micro Jogs;
——————————;
LH  : PH  : Micro Jog (Hex/Dec);
——————————;
0   : 2   : A4C/2636;
1   : 3   : A2E/2606;
2   : 4   : A36/2614;
3   : 5   : A52/2642;
4   : 6   : 9AC/2476;
5   : 7   : A34/2612;
ROM F/W version……………………. : 0058007R;
Preamp vendor……………………… : 0x0000;
Preamp revision……………………. : 0x0002;
;
;
;
;
;
;

;

HDD with  Serial Number: WCAWF7424614;
Model: WD5000AAKS-55V0A0;
Date: 08 AUG 2010;
DCM: DHRNHTJAGN;
Product of: Thailand;
PCB Sticker: 2061-701640-L02 03P;
PCB Revision: 2060-701640-002 REV A;

;

;

HDD #1 Specs:;
SN: WCAS88594622;
Model: WD5000AAKS-41YGA1;
Date: 23 JAN 2009;
DCM: DANNHT2MHB ;
Product of: Thailand;
PCB Sticker: 2061-701477-900 AGD10;
PCB Revision: 2060-701477-002 REV A;

;

Micro Jogs;
——————————;
LH  : PH  : Micro Jog (Hex/Dec);
——————————;
0   : 2   : A3E/2622;
1   : 3   : A82/2690;
2   : 4   : A38/2616;
3   : 5   : A84/2692;
4   : 6   : A26/2598;
5   : 7   : A88/2696;
ROM F/W version……………………. : 005800BF;
Preamp vendor……………………… : 0x0000;
Preamp revision……………………. : 0x0002;
;
;
;
;
;
;

;

HDD with Serial Number: WCAWF4113552;
Model: WD5000AAKS-55V0A0;
Date: 18 MAR 2010;
DCM: HANCNTJCAN;
Product of: Thailand;
PCB Sticker: 2061-701640-L02 02PD3;
PCB Revision: 2060-701640-002 REV A;
;

Micro Jogs;
——————————;
LH  : PH  : Micro Jog (Hex/Dec);
——————————;
0   : 0   : C8A/3210;
1   : 1   : C3D/3133;
ROM F/W version……………………. : 00120016;
Heads map…………………………. : 0,1;
Preamp vendor…………………….. : 0x0001;
Preamp revision…………………… : 0x0001;

;

HDD with Serial Number: WCAS84070855;
Model: WD5000AAKS-41YGA1;
Date: 12 AUG 2008;
DCM: HANCHT2MA;
Product of: Thailand;
PCB Sticker: 2061-701477-900 AD;
PCB Revision: 2060-701477-002 REV A;
;

ROM F/W versionn 0058007R;
Heads map 2,3,4,5,6,7;
Preamp vendor: x000;
Preamp revision: x0002;
;
;
Micro Jogs;
——————————;
LH  : PH  : Micro Jog (Hex/Dec);
——————————;
0   : 2   : A82/2690;
1   : 3   : A3E/2622;
2   : 4   : AA4/2724;
3   : 5   : A18/2584;
4   : 6   : A98/2712;
5   : 7   : A0C/2572

;
