Category: HDD

HDD with Serial Number: WMAV3A150177;
Model: WD800AAJS-75M0A0;
Date: 06 OCT 2009;
DCM: DARNHT2CG;
Product of: Malaysia;
PCB Sticker: 2061-701590-X02 04P;
PCB Revision: 2060-701590-001 REV A;
;

——————————;
LH  : PH  : Micro Jog (Hex/Dec);
——————————;
0   : 0   : A60/2656;
;
ROM F/W Version: 000500F0;
Heads map:  0;
Preamp vendor: 0x0000;
Preamp revision: 0x0005

;

HDD with Serial Number: WCAV38518957;
Model: WD800AAJS-75M0A0;
Date: 15 MAR 2010;
DCM: DARNHT2CGN;
Product of: Thailand;
PCB Sticker: 2061-701590-X06 01P;
PCB Revision: 2060-701590-001 REV B;
;

Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 0 : 97E/2430;
ROM F/W version……………………. : 000500F9;
Heads map…………………………. : 0;
Preamp vendor……………………… : 0x0000;
Preamp revision……………………. : 0x0005;

;

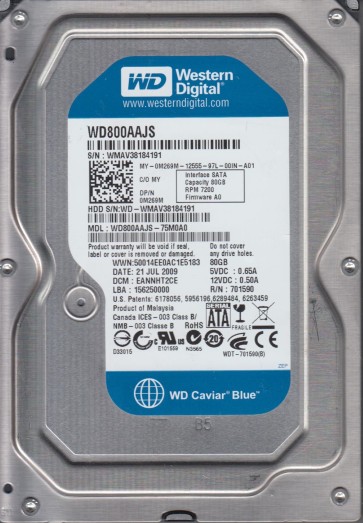

HDD with Serial Number: WMAV38184191;
Model: WD800AAJS-75M0A0;
Date: 21 JUL 2009;
DCM: EANNHT2CE;
Product of: Malaysia;
PCB Sticker: 2061-701590-E00 AD;
PCB Revision: 2060-701590-000 REV A;
;

Micro Jogs;
——————————;
LH  : PH  : Micro Jog (Hex/Dec);
——————————;
0   : 0   : A84/2692;
ROM F/W version……………………. : 000500EA;
Heads map…………………………. : 0;
Preamp vendor……………………. : 0x0000;
Preamp revision………………….. : 0x0005;
;
;
;

HDD with Serial Number: WMAV38184223;
Model: WD800AAJS-75M0A0;
Date: 21 JUL 2009;
DCM: EANNHT2CE;
Product of: Malaysia;
PCB Sticker: 2061-701590-E00 AD;
PCB Revision: 2060-701590-000 REV A;
;

——————————;
LH  : PH  : Micro Jog (Hex/Dec);
——————————;
0   : 0   : A0C/2572;
;
ROM F/W Version: 000500EA;
Heads map:  0;
Preamp vendor: 0x0000;
Preamp revision: 0x0005

;

HDD with Serial Number: WMAV38188347;
Model: WD800AAJS-75M0A0;
Date: 21 JUL 2009;
DCM: HGNNHT2CH;
Product of: Malaysia;
PCB Sticker: 2061-701590-E00 AD;
PCB Revision: 2060-701590-000 REV A;
;

——————————;
LH  : PH  : Micro Jog (Hex/Dec);
——————————;
0   : 0   : A4A/2634;
;
ROM F/W Version: 000500EA;
Heads map:  0;
Preamp vendor: 0x0000;
Preamp revision: 0x0005

;

HDD with Serial Number: WCAV34083553;
Model: WD800AAJS-75M0A0;
Date: 13 SEP 2009;
DCM: HGNNNT2AGN;
Product of: Thailand;
PCB Sticker: 2061-701590-E01 01P;
PCB Revision: 2060-701590-001 REV A;
;

Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 0 : 95E/2398;
ROM F/W version……………………. : 000500ES;
Heads map…………………………. : 0;
Preamp vendor……………………… : 0x0000;
Preamp revision……………………. : 0x0005;

;

HDD with Serial Number: WMAV38105971;
Model: WD800AAJS-75M0A0;
Date: 16 JUL 2009;
DCM: HGRNHT2CG;
Product of: Malaysia;
PCB Sticker: 2061-701590-E00 AD;
PCB Revision: 2060-701590-000 REV A;
;

——————————;
LH  : PH  : Micro Jog (Hex/Dec);
——————————;
0   : 0   : 952/2386;
;
ROM F/W Version: 000500EA;
Heads map: 0;
Preamp vendor: 0x0000;
Preamp revision: 0x0005

;

HDD with Serial Number: WCAA52234560;
Model: WD800AB-00CBA1;
Date: 22 FEB 2003;
DCM: DSEHNT2AH;
Product of: Thailand;
PCB Sticker: 2061-001092-300 L;
PCB Revision: 2060-001092-007 REV A;
;

;

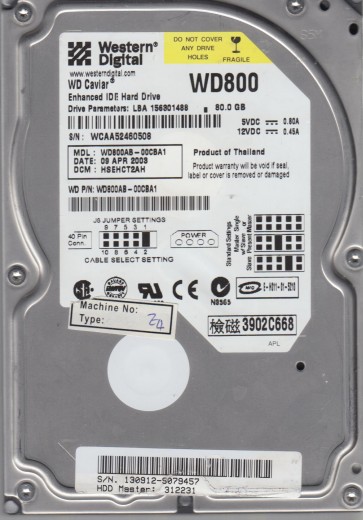

HDD with Serial Number: WCAA52460508;
Model: WD800AB-00CBA1;
Date: 09 APR 2003;
DCM: HSEHCT2AH;
Product of: Thailand;
PCB Sticker: 2061-001092-300 LA;
PCB Revision: 2060-001092-007 REV A;
;

;

HDD with Serial Number: WCAV39084536;
Model: WD800AAJS-22L7A0;
Date: 29 APR 2010;
DCM: HARNHTJAHN;
Product of: Thailand;
PCB Sticker: 2061-701590-X06 02P;
PCB Revision: 2060-701590-001 REV B;
;

Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 0 : 992/2450;

;

ROM F/W: 000500F9;
Heads map: 0;
Preamp vendor: 0x0001;
Preamp revision: 0x0003;

;

HDD #1 Specs:;
Serial Number: WCAT23169159;
Model: WD800AAJS-60B4A0;
Date: 24 SEP 2008;
DCM: HHRNNT2AGN;
Product of: Thailand;
PCB Sticker: 2061-701537-G00 AE;
PCB Revision: 2060-701537-003 REV A;

;

Micro Jogs;
——————————;
LH  : PH  : Micro Jog (Hex/Dec);
——————————;
0   : 0   : A22/2594;

;

ROM F/W version……………………. : 00050079;
Preamp Vendor……………………… : 0000;
Preamp Rev………………………… : 0005;

;
