Category: HDD

HDD with Serial Number: WCASY2069646;
Model: WD5000AAKS-07A7B0;
Date: 09 AUG 2008;
DCM: HGRNNT2CGN;
Product of: Thailand;
PCB Sticker: 2061-701537-E00 07PD3;
PCB Revision: 2060-701537-003 REV A;
;

Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 0 : A15/2581;
1 : 1 : 9D9/2521;
2 : 2 : A0F/2575;
3 : 3 : 9E5/2533;

;

ROM F/W version: 00050084;
Heads map: 0,1,2,3;
Preamp vendor: 0x0000;
Preamp revision: 0x0002;

;

HDD #1 Specs:;
SN: WCAYU5841018;
Model: WD5000AAKS-00WWPA0;
Date: 26 JUL 2010;
DCM: DGNNHTJAHN ;
Product of: Thailand;
PCB Sticker: 2061-771640-503 AA;
PCB Revision: 2060-771640-003 REV P1;

;

Micro Jogs;
——————————;
LH  : PH  : Micro Jog (Hex/Dec);
——————————;
0   : 0   : C65/3173;
1   : 1   : CE1/3297;
;
;

;

HDD #1 Specs:;

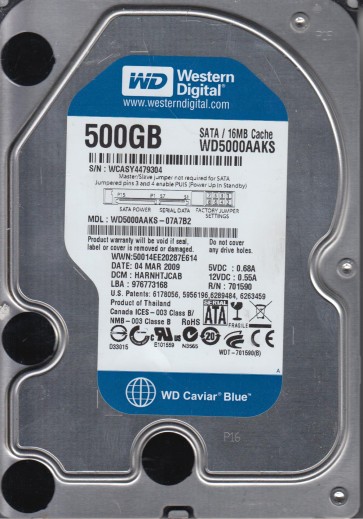

Serial Number: WCASY4479304;
Model: WD5000AAKS-07A7B2;
Date: 04 Mar 2009;
DCM: HARNHTJCAB;
Product of: Thailand;
PCB Sticker: 2061-701590-L00 AD;
PCB Revision: 2060-701590-000 REV A;

;

Micro Jogs;
——————————;
LH  : PH  : Micro Jog (Hex/Dec);
——————————;
0   : 0   : 9D2/2514;
1   : 1   : 9EC/2540;
2   : 2   : 9D8/2520;
3   : 3   : 9DE/2526;
ROM F/W version……………………. : 000500BU;
Preamp vendor……………………… : 0x0001;
Preamp revision……………………. : 0x0001;
;
;
;
;

;
;
;

;

HDD #1 Specs:;
SN: WCAYU5780677;
Model: WD5000AAKS-00WWPA0;
Date: 28 JUL 2010;
DCM: DGNNHTJMGN ;
Product of: Thailand;
PCB Sticker: 2061-771640-503 AA;
PCB Revision: 2060-771640-003 REV P1;

;

Micro Jogs;
——————————;
LH  : PH  : Micro Jog (Hex/Dec);
——————————;
0   : 0   : C9F/3231;
1   : 1   : CEB/3307;
;
;
;
;

;

HDD #1 Specs:;

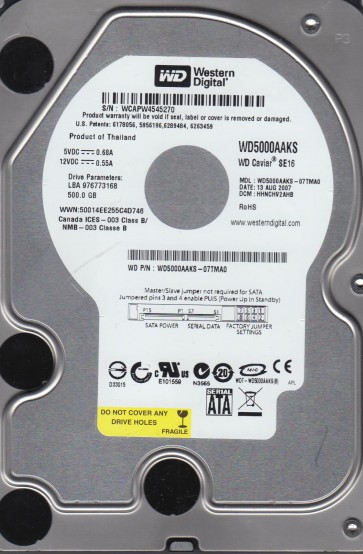

Serial Number: WCAPW4545270;
Model: WD5000AAKS-07TMA0;
Date: 13 AUG 2007;
DCM: HHNCHV2AHB;
Product of: Thailand;
PCB Sticker: 2061-701477-900 04P;
PCB Revision: 2060-701477-002 REV A;

;

Micro Jogs;
——————————;
LH  : PH  : Micro Jog (Hex/Dec);
——————————;
0   : 2   : 69E/1694;
1   : 3   : 69A/1690;
2   : 4   : 67C/1660;
3   : 5   : 68E/1678;
4   : 6   : 66A/1642;
5   : 7   : 694/1684;
ROM F/W version……………………. : 00210068;
Preamp vendor……………………… : 0x0000;
Preamp revision……………………. : 0x0001;
;
;
;
;
;
;
;

;

HDD with Serial Number: WCAYU5823675;
Model: WD5000AAKS-00WWPA0;
Date: 27 JUL 2010;
DCM: DGNNNTJAEN;
Product of: Thailand;
PCB Sticker: 2061-771640-503 AA;
PCB Revision: 2060-771640-003 REV P1;
;

Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 0 : C11/3089;
1 : 1 : CD3/3283;
ROM F/W version……………………. : 0000001G;
Heads map…………………………. : 0,1;
Preamp vendor……………………. : 0x0001;
Preamp revision………………….. : 0x0001;

;

HDD with Serial Number: WCAPW4545460;
Model: WD5000AAKS-07TMA0;
Date: 13 AUG 2007;
DCM: HHNCHV2MHB;
Product of: Thailand;
PCB Sticker: 2061-701477-900 04P;
PCB Revision: 2060-701477-002 REV A;
;

Micro Jogs;
——————————;
LH  : PH  : Micro Jog (Hex/Dec);
——————————;
0   : 2   : 67C/1660;
1   : 3   : 68C/1676;
2   : 4   : 6BA/1722;
3   : 5   : 66C/1644;
4   : 6   : 6E8/1768;
5   : 7   : 65E/1630;
ROM F/W version……………………. : 00210068;
Heads map…………………………. : 2,3,4,5,6,7;
Preamp vendor……………………. : 0x0000;
Preamp revision………………….. : 0x0001;

;

HDD #2 Specs:;

;

Serial Number: WCAYU5625437;
Model: WD5000AAKS-00WWPA0;
Date: 26 JUL 2010;
DCM: DGRNHTJAEN;
Product of: Thailand;
PCB Sticker: 2061-771640-503 AA;
PCB Revision: 2060-771640-003 REV P1;

;

Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 0 : CB8/3256;
1 : 1 : CEE/3310;

;

ROM F/W version……………………. : 0000001G;
Preamp vendor……………………… : 0x0001;
Preamp revision……………………. : 0x0001;

;

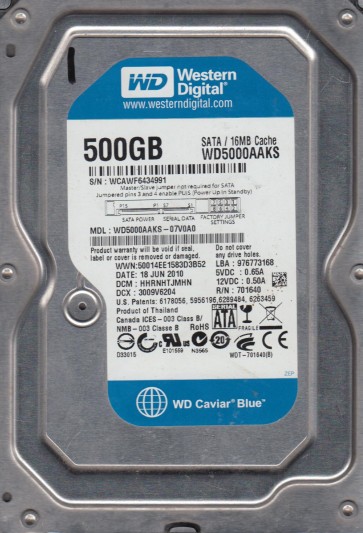

HDD with Serial Number: WCAWF6434991;
Model: WD5000AAKS-07V0A0;
Date: 18 JUN 2010;
DCM: HHRNHTJMHN;
Product of: Thailand;
PCB Sticker: 2061-701640-L02 03P;
PCB Revision: 2060-701640-002 REV A;

;

Micro Jogs;
——————————;
LH  : PH  : Micro Jog (Hex/Dec);
——————————;
0   : 0   : C39/3129;
1   : 1   : C6D/3181;
ROM F/W version……………………. : 0012001R;
Preamp vendor……………………… : 0x0001;
Preamp revision……………………. : 0x0001;
;
;
;
;

;

HDD with Serial Number: WCAWF6718613;
Model: WD5000AAKS-00V6A0;
Date: 10 JUL 2010;
DCM: HHNNHTJMHN;
Product of: Thailand;
PCB Sticker: 771640-102 05P;
PCB Revision: 2060-771640-002 REV P2;
;

Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 0 : CA7/3239;
1 : 1 : CC0/3264;
ROM F/W version……………………. : 0000004T;
Heads map…………………………. : 0,1;
Preamp vendor……………………… : 0x0001;
Preamp revision……………………. : 0x0001;

;
